Portable Samll TIJBatch Coding Handheld Inkjet Printer
Product Description

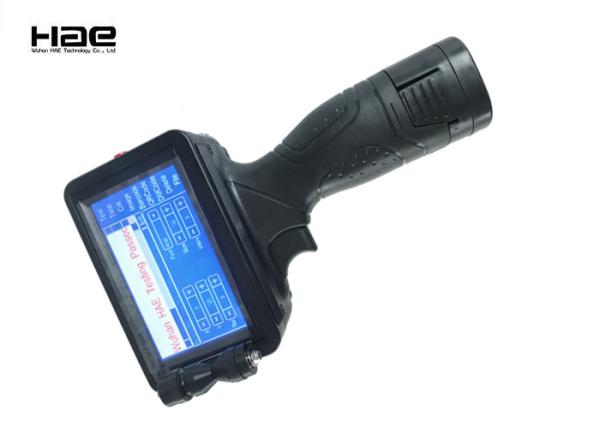

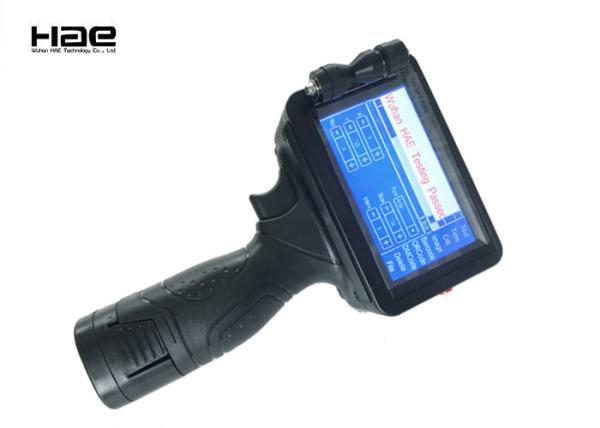

HAE-530 is a kind of TIJ inkjet printer which adopts HP thermal foaming technology.Used the fast dry ink, HAE hand jet printer can print on the plastic within seconds the ink will dry.2-5 mm printing distance, makes the inkjet coding machine can print on a slightly uneven surface and make sure the clear printing effect.
main features
1. Designed with portable handle, net weight of handheld inkjet printer is only 0.8kg.
2. Easy operation, use touchscreen pen to edit or print through 5 inch touch screen.
3. 360 degree Printing to frontwards, upwards, downwards
4. Lithium battery with long standby time reach 8 hours
5. Edit printing content on machine, or External Interface through computer for customer choice.
6. Printing lines up to 8 lines
7. Large capacity battery can continuous working over 4 hours.
8. No need to clean printing head, no printing blocking, no need clean solvent, 42 ml ink cartridge can print 100,000 characters in 8 mm height.
9. The printer has a unique subsection function.Namely, one message can be printed by multiplerows, which solves the problem of the maximum printing height of reaching 12.7mm for every row.
You can edit as much as content through group file, and print out large size content.
Specifition
Model | HAE-530 |
Nozzle | TIJ 2.5 Thermal Foaming Nozzle |
Print Area | 1-8lines |
Display | 5” Touch Screen |
Operation System | Linux |
CPU | Quad core 1.4 Hz |
Interface Languages | English, Turkish, Arabic, Korea, Italian, Simplified Chinese, Traditional Chinese |
Shape Feature | ABS+PC |
Dimension | 220X114X130 mm |
net weight | 0.8kg |
Printing height | 1.5mm-12.7mm |
Ink color | Black, white, yellow, blue, green, red, invisible |
Printing distance | 2-5 mm |
Printing content | Text, time, batch number, series number, logo, QR code, Barcode |
Message Storage Capacity | Store up to 1000 messages with SD card, |
(external USB can transfer information freely) | |
Printing length | 2000 characters for each message, no limit in length |
Printing speed | 70 m/min online speed |
External interface | USB, Photoelectric interface |
Voltage | DC 16.8 lithium battery(2600 mAh*4), |
work more than 4 hours and 8 hours standby. | |
Power consumption | the average power consumption is lower than 5W |
Working environment | Temperature:0 - 38 degree; Humidity: 10% - 80% |
Printing material | board, carton, stone, pipe, cable, metal, plastic product, electronic, |
the fiber board, light steel keel, aluminum foil, etc. |
Shipping Methods
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, door to door service, which is convenient for you to get the package. normally 3-5 working days for delivery;
2. By Air: In some areas, the shipping cost by air is more favorable than by Express, delivery time is 5-7 working days; In some situations, customers can bring the package back to their country through airlines;
3. By Sea: the most economical shipping method, but it will take longer shipping time; suitable for large-quantity, heavy and non-urgent goods.
4. Your shipping agent or forwarder. Just tell us your forwarder’s contact method, than we can check with your agent or forwarder about the shipment.
FAQ:
Q: Whether this product suit for me?
A: If you confused and have not enough confidence to our online customer server, please send samples to us, we could provide free spray sample service for you.
Q: What material can you print for?
HAE printer can print on metal, plastic, wood, aluminum foil, carton, building materials and etc.
Q: Do you have other color inks?
A: Yes, We have white, yellow, red, green, blue, black, invisible these color for you choice.
Q: What's the drying time for the ink?
A: After you print out, the ink will instant dry.
Q: How to maintain this machine?
A: We have special maintenance documents for your reference for this machine, If you want know more, welcome to contact us.
Q:What are the marking contents?
A:Alphanumeric info, date matrix or dot matrix 2D codes, shift codes, barcode, serial number, date, VIN code, time, letter, figure, logo, graphics and etc.
Q:Could the marking contents of be freely transformed?
A:Sure, it can be free transformed by our software.
