CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing
CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing
CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing
CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing
CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing
CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing
CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing
CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing
CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing
CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing
Specifications
Brand Name :
Xinhong Lasser
Model Number :
XH-CDD marker Series
Certification :
CE,RoHS,ISO9001 certificates
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD2299-2499/Set
Payment Terms :
T/T, Western Union
Delivery Time :
10-15 working days
Packaging Details :
Wooden box
Product Name :
Visual Laser Marking Machine with Conveyor Belt
Laser Source :
Raycus/Max/JPT (Optional)
Laser Type :
Fiber/CO2/UV/MOPA
Power :
20/30/50/100W
Marking Area :
110/200/300mm(optional)
Galvanometer :
SINO-GALVO
Control System :
BJJCZ
Control Software :
EZCAD2.14.10
Machine Size :
1370*1640*850mm
Conveyor Belt :
1200mm
Description

CCD Vision Positioning Automatic Sensing Laser Marking Machine on Assembly Production Line Conveyor Belt

★ Product Description

CCD Visual positioning laser marking machine is mainly aiming at the problems of difficult feeding, poor positioning and slow speed caused by the difficulty of fixture design and manufacture in batch irregular marking, the problem is solved by using an external CCD camera to capture feature points in real time.

★ Application

1.The marking products can be placed at will, and multiple products can be placed at one time.

2.The products can be identified at any position, at any angle, and any shape.

3.The software can basically automatically identify them. Automatic marking of multiple products can be completed at one time, which greatly improves the marking efficiency.

★ Technical Parameters

1 Product Name Visual Laser Marking Machine with Conveyor Belt
2 Laser Type Fiber CO2 UV
3 Power 20/30/50/100W 30/40/60W 3/5/10W
4 Laser Source Raycus/MAX/JPT
5 Marking Range 75*75mm-300*300mm(customizable)
6 Maxi Marking Speed 7000mm/s
7 Control System BJJCZ
8 Control Software EZCAD2
9 Machine Size 1370*1640*850mm
10 Conveyor Belt 1200mm
11 Power Supply 220V 50hz
12 Lifetime 100000 hours

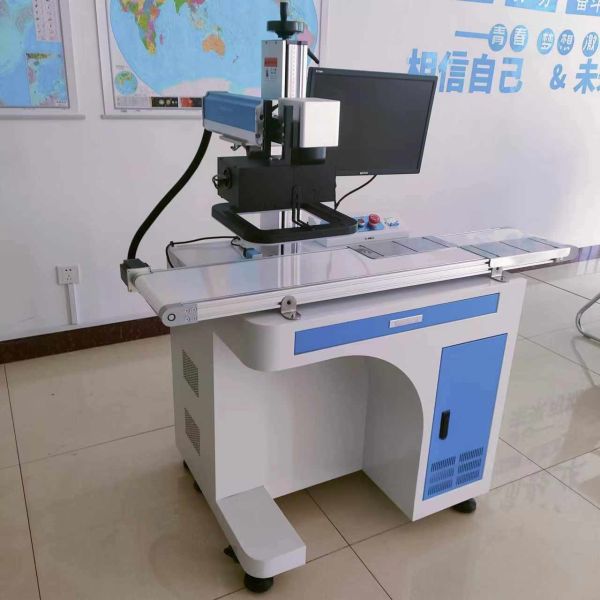

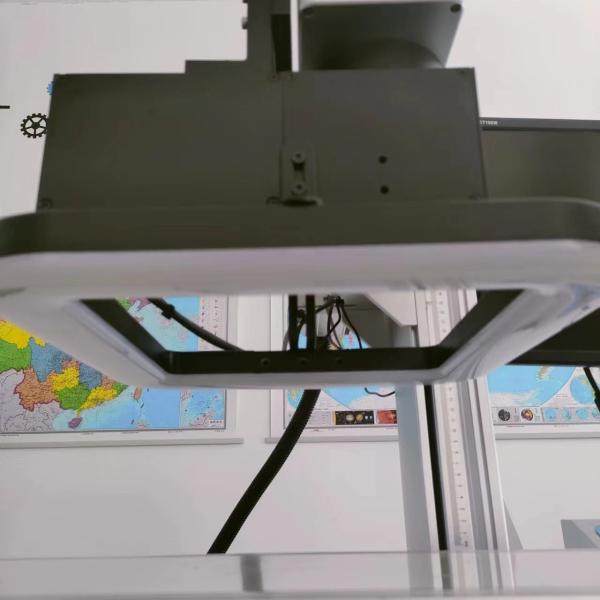

★ Real Machine Display

CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing

CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing

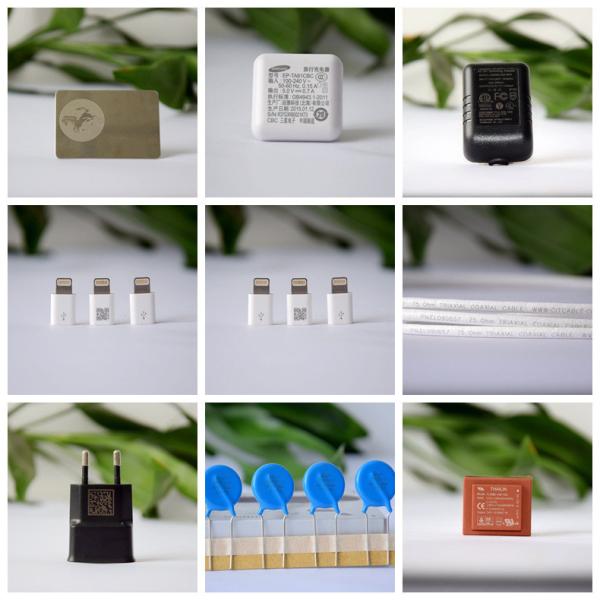

★ Sample Show

CCD Vision Positioning Laser Marking Machine 100W Automatic Sensing
