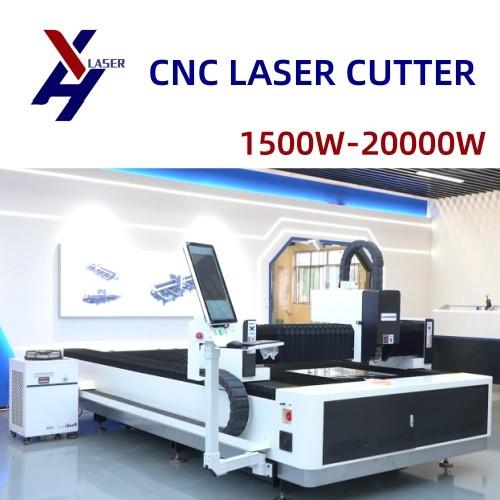

Stainless Steel Sheet Fiber Laser Cutting Machine 6kw
Stainless Steel Sheet Fiber Laser Cutting Machine 6kw
Specifications
Brand Name :
XINHONG
Model Number :
XH-3015L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
FOB 12000 USD-18000USD
Payment Terms :
T/T
Supply Ability :
4000SETS/YEAR
Delivery Time :
30-55 working days
Packaging Details :
Container
Cnc Or Not :
Yes
Cutting Accuracy :
±0.01mm
Laser Output Control :
0-100% set by software
Cnc :
yes
Application :
Industrial Metal Cutting
Laser Source Brand :
Raycus/MAX
Laser Head :
Raytools auto focus BM110
Dimensions :
4200*2250*1840mm
Power Supply :
220V/50HZ, 110V/60HZ
Working Temperature :
0-35℃
Machine Weight :
1800kg
Working Area :
3080mm*1530*100mm
Controller System :
Raytools XC3000S
Beam and Gantry :
Aviation aluminum
Air Conditioner :
Included
Electronic Components :
Schneider
Guide Rail :
PEK
Lubrication System :
Fully automatic
Description

Stainless Steel Sheet Fiber Laser Cutting Machine 6kw

Product Features

1 Overall 8mm plate welded bed, mortise and tenon structure,
2 1-3kw laser built into the bed, external chiller.
3 Partition dust removal optional, standard configuration without partition dust removal
4 Anti-scalding optional, standard configuration without anti-scalding components.
5 Standard front electric box, optional independent electric box.
6 200 air ducts on both sides to increase the ventilation effect.

1 Model XH-3015L XH-4020L XH-6025L XH-8025L
2 Cutting Working Area 3000*1500mm 4000*2000mm 6000*2500mm 8000*2500mm
3 Power 1500w/2000w/3000w/6000w/12000W/20000W
4 Laser Source Brand Raycus/MAX
5 Laser Head Raytools
6 Control System Cypcut
7 Laser type Fiber laser generator
8 Guiding Rail Taiwan Hiwin
9 Helical Rack Taiwan YYC
10 Motor Yaskawa Servo
11 Water Chiller Hanli
12 Gross weight 1800KG
13 Machine Warranty Lifetime
