Circular Light Color CE 42*3mm 40/20 Quartz Laser Machine Lens
Circular Light Color CE 42*3mm 40/20 Quartz Laser Machine Lens
Circular Light Color CE 42*3mm 40/20 Quartz Laser Machine Lens
Circular Light Color CE 42*3mm 40/20 Quartz Laser Machine Lens
Circular Light Color CE 42*3mm 40/20 Quartz Laser Machine Lens
Circular Light Color CE 42*3mm 40/20 Quartz Laser Machine Lens
Circular Light Color CE 42*3mm 40/20 Quartz Laser Machine Lens
Circular Light Color CE 42*3mm 40/20 Quartz Laser Machine Lens
Specifications
Brand Name :
WEIMENG
Model Number :
WM-A-017
Certification :
CE,ISO9000
Place of Origin :
Shaanxi, China(Mainland)
MOQ :
50 pcs
Price :
USD9.9/piece
Payment Terms :
T/T,paypal
Supply Ability :
1000 pcs per day
Delivery Time :
7 days
Packaging Details :
10*10*15cm carton packed
Material :
H-K9L
Wavelength :
1064nm
Coating :
AR
Diameter :
42mm
Tolearance :
±0.1mm
Surface quality :
40/20
Chamfer :
45 º*0.2mm
Surface color :
Clear
Thickness :
3mm
Shape :
Plano
Application :
Optical equipment
Description

Dia:42mm Thickness:3mm 1064nmAR coating H-K9L safety protective window for fiber collimator

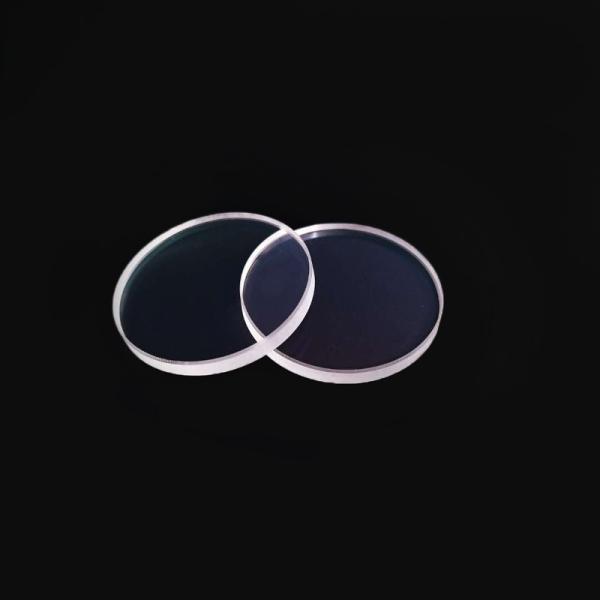

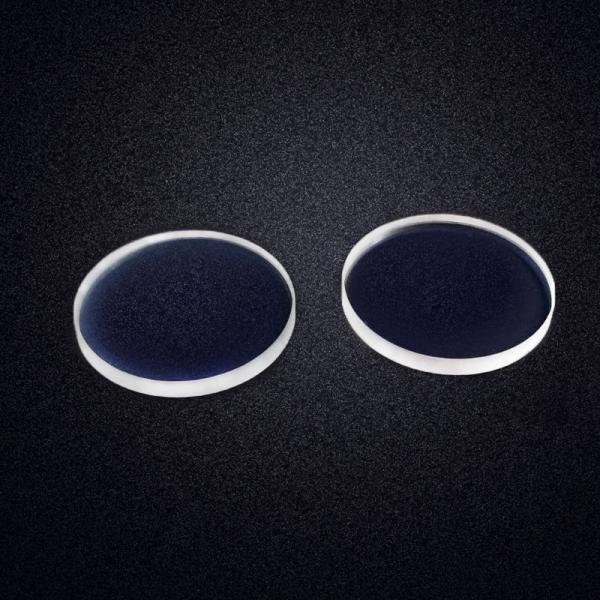

Laser protective lens:

The base material is K9 or quartz material, which is transparent. It is finely processed

by grinding, polishing, coating and other processes. From the side, it shows light color.

It is mainly used in laser cutting to prevent splashing of sundries and avoid splashing

to damage the lens. It is widely used in laser welding machine, laser cutting machine,

laser marking machine and so on.

Fearture:

1. 4-5 times harder than ordinary float glass, stronger resistance to thermal breakage

than annealed or heat strengthened glass.

2. once breakage occurs, the glass disintegrates into small cubical fagements,

which are relatively harmless to human body.

3. Suitable for use a safety glass as defined by consumer product safety association.

The main function of the laser protection lens is to prevent dust and splash damage to the

focusing lens of laser welding equipment and laser cutting machine. Can protect the damage

of the focus lens, due to the AR coating on the surface is designed according to the wavelength

1064nm of the laser machine, so the laser lens laser protective windows can extend the service

life of the laser machine, reduces the use-cost .

Product name Laser protective lens /optical lens/window film Circular Light Color CE 42*3mm 40/20 Quartz Laser Machine Lens
Size 42*3mm
Coating 1064nmAR
Dia tolearance -0.1mm
Thickness tolearance ±0.1mm
Chamfer 45 degree*0.2mm
Application laser welding/cutting/marking machine
Material H-K9L(BK7)
Advantage 1. Top quality glass with CE certificate,exporting to more 60 countries in the world
2. Unique designed strong wooden case, solving the problem of breakage
3. Professional sales team, offering personalized and dedicated services.
4. 24-hours online, we could discuss the item whenever and wherever.

Circular Light Color CE 42*3mm 40/20 Quartz Laser Machine Lens
