8KW 38.1*1.6mm Quartz 1064nmAR Fiber Laser Lens For BM114S Laser Head
8KW 38.1*1.6mm Quartz 1064nmAR Fiber Laser Lens For BM114S Laser Head
8KW 38.1*1.6mm Quartz 1064nmAR Fiber Laser Lens For BM114S Laser Head
8KW 38.1*1.6mm Quartz 1064nmAR Fiber Laser Lens For BM114S Laser Head
8KW 38.1*1.6mm Quartz 1064nmAR Fiber Laser Lens For BM114S Laser Head
8KW 38.1*1.6mm Quartz 1064nmAR Fiber Laser Lens For BM114S Laser Head
Specifications
Brand Name :
XUCHEN
Model Number :
WM-A-049
Certification :
CE,ISO9000
Place of Origin :
Shaanxi, China(Mainland)
MOQ :
5 pcs
Price :
USD19.8-USD16.1
Payment Terms :
T/T,paypal
Supply Ability :
1000 pcs per day
Delivery Time :
7 days
Packaging Details :
10*10*15cm carton packed
Coating :
1064nmAR(Double coated)
Power :
8000W
Material :
JGS1 Fused Silica(Quartz)
Wavelength :
1064nm
Transmittance :
99.8%
Application :
BM114S laser head
Advantage :
High temperature resistance
Description

8KW 38.1*1.6mm Quartz 1064nmAR Fiber Laser protective lens for BM114S laser head

Description :

Name:Fiber laser protective lens

Type: Windows

Size:38.1*1.6mm
Material: Quartz Fused Silica

Wavelength: 1064nm
Transmittance: 99.8%
Power: could bear 8KW
In virtue of the very high transmittance in the infrared , visible, ultraviolet band , the YAG crystal is an excellent material to serve as the optical window and the substrate and has been widely used in many fields, especially in the high-temperature and high-energu radiation application.
Advantages :
1. Humanized 45 protective full-angles design safe and easy to use without hurting hands.
2.Select the high quality of Quartz crystal
3.Double sides coating process
4.High precision machining,
The high-temperature coating of the automatic coating machine adopts the original German coating material, and the anti-reflection coating with high damage threshold is coated on both sides, and the reflection loss is minimized.
Application :
Window slice is one of the basic optical elements in optics. It is an optical flat plate that plays the role of protecting electronic components / sensors / semiconductor components in the optical path. The window slice does not change the optical magnification, and only affects the optical path in the optical path. Mechanical properties such as light transmittance, surface precision, thickness, parallelism, and substrate material are important parameter indicators of window slice. You can select the window slice with appropriate parameter indicators according to specific applications., Widely used in optical systems, it is usually used as a protection device between precision electronic instruments and equipment and the environment. At the same time, we can also customize the optical window according to your specific needs.

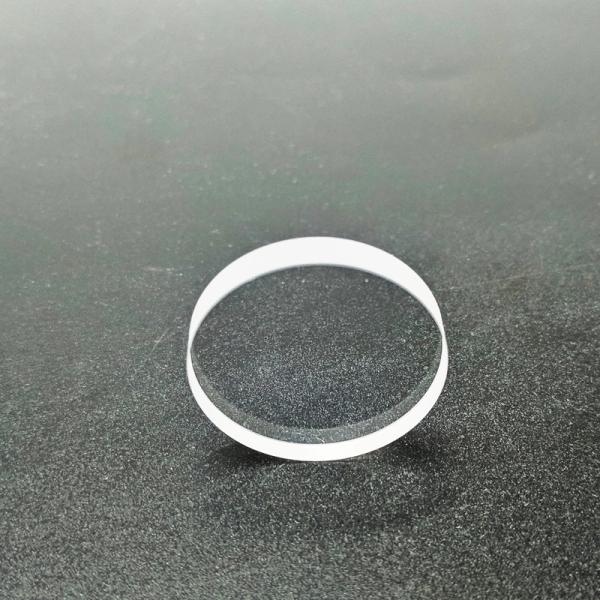

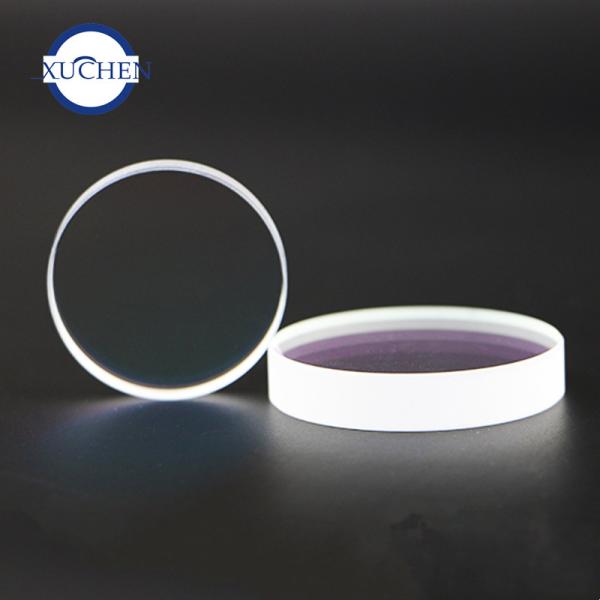

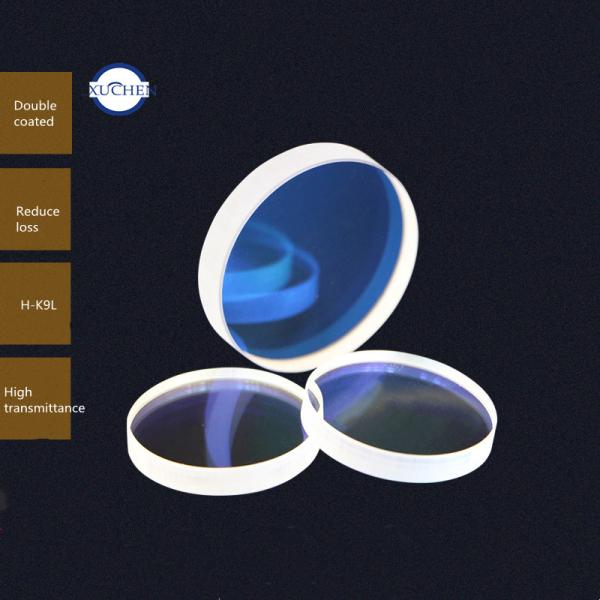

Photo:

8KW 38.1*1.6mm Quartz 1064nmAR Fiber Laser Lens For BM114S Laser Head
8KW 38.1*1.6mm Quartz 1064nmAR Fiber Laser Lens For BM114S Laser Head
