Quartz Circular 9.5*2mm 0 Degree Laser Reflective Mirror For Holmium Laser Machine
Quartz Circular 9.5*2mm 0 Degree Laser Reflective Mirror For Holmium Laser Machine
Quartz Circular 9.5*2mm 0 Degree Laser Reflective Mirror For Holmium Laser Machine
Quartz Circular 9.5*2mm 0 Degree Laser Reflective Mirror For Holmium Laser Machine
Specifications
Brand Name :
XUCHEN
Model Number :
WM-N-021
Certification :
CE,ISO9000
Place of Origin :
Shaanxi,China(Mainland)
MOQ :
1 pcs
Price :
USD19.8/pcs-USD15.5/pcs
Payment Terms :
T/T,payapl
Supply Ability :
1000 pcs per week
Delivery Time :
8 days
Packaging Details :
carton packed
Name :
0 degree reflective lens
Surface quality :
40/20
Chamfer :
0.02mm*45 degree
Tolearance :
+/-0.1mm
Coating :
2100nmHR
Angle of incidence :
0 degree
Polished :
Yes
Usage :
Holmium Laser Machine
Description

Quartz Circular 9.5*2mm 0 degree laser Reflective Lens for Holmium Laser Machine

Products description:

Holmium laser is a pulsed laser. Its laser crystal is made of yttrium aluminum garnet as activation medium, doped with sensitized ion chromium, energy transfer ion thulium and activated ion holmium. Under the excitation of high-pressure xenon lamp or krypton lamp, a holmium laser with wavelength of and tissue penetration depth of ~ is generated. The generated energy can vaporize the water between the end of the optical fiber and the stone, form tiny vacuoles, and transmit the energy to the stone, so that all kinds of stones can be vaporized and crushed.

Holmium laser uses a large number of optical lenses. Whether the laser energy can be transmitted linearly depends mainly on the service status, transmission and total reflection efficiency of these lenses and optical fibers.

Holmium laser is used as a device for direct contact with patients and lithotripsy treatment in patients

How to clean the reflective lens?

1. Cleaning method: use a soft cotton ball dipped in an appropriate amount of high-purity alcohol to gently wipe the mirror clockwise, with the center to the outside until the mirror is clean

2. If the equipment is not used for a long time, the lens must be cleaned first, and then the surface of the lens must be sealed with high-grade lens paper and adhesive tape to reduce the chance of direct contact between the lens and the air.

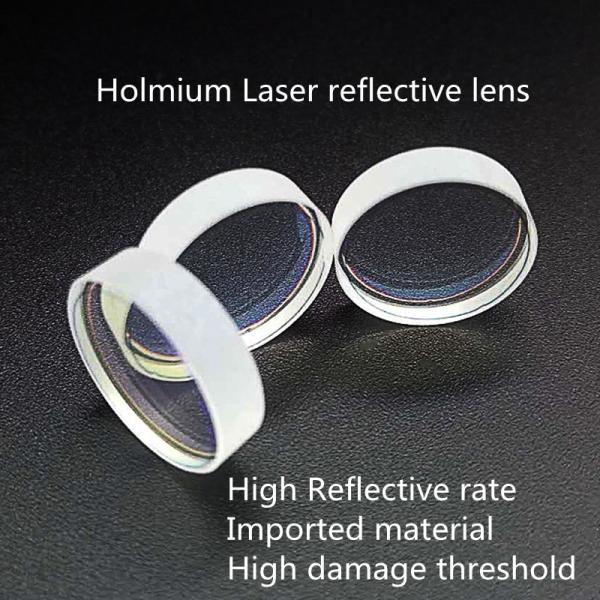

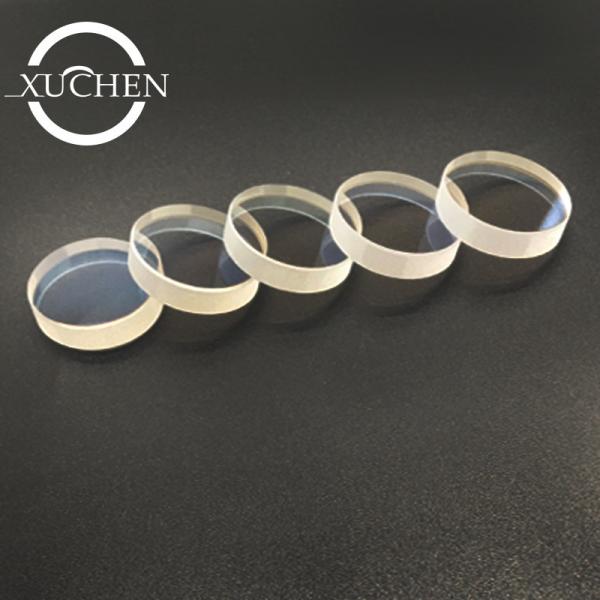

Products photo:

Quartz Circular 9.5*2mm 0 Degree Laser Reflective Mirror For Holmium Laser Machine
