CCD Camera System Pulse Heat Technology Hot Bar Soldering Machine,SMTfly-PC1A​ Feature:

• Extremely short cycle time with rotary table design
• Product loading and unloading can be done during the heat
• sealing process
• High quality heat seal application up to 0.25mm pitch
• Pneumatic bonding head provide up to 3,900N force
• Digital programmable pressure control with LCD display
• Closed loop PID temperature control with visible LED display
• Bonding cycle is triggered by a real time pressure sensor
• Floating Thermode ensure consistent pressure and heat transfer
• along the flexfoil to LCD and/or PCB
• Precision product fixtures (2X), easy exchange, provided with
• micrometer alignment and vacuum to fix components
• Optional CCD alignment module with frame, camera, lens,
• monitor and illumination for fine pitch application
• Full microprocessor logic control

CCD Camera System Pulse Heat Technology Hot Bar Soldering Machine Application:

Advantages: ultra-fine pitch welding can be achieved; temperature, pressure digital; welding speed 6-8S (excluding artificial take-off time)

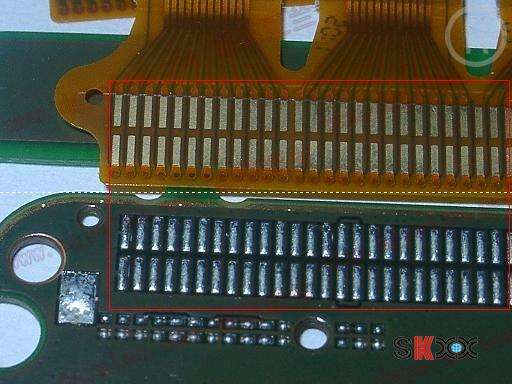

Function: Suitable for all kinds of high density TAB, TCP crimp and FPC, FFC and PCB solder crimp.

CCD Camera System Pulse Heat Technology Hot Bar Soldering Machine Specification:
