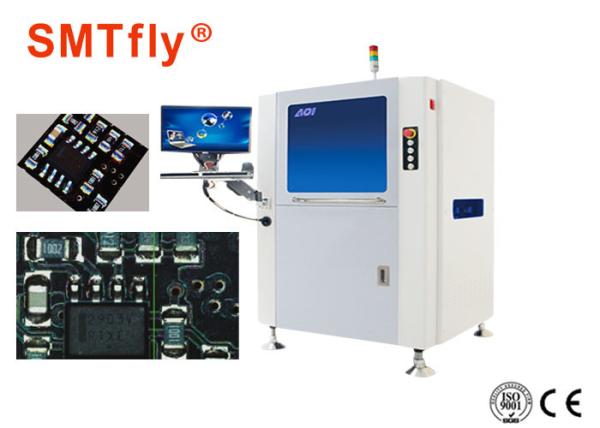

500mm/S AOI PCB Inspection Equipment , Printed Circuit Board AOI Systems SMTfly-S810
500mm/S AOI PCB Inspection Equipment , Printed Circuit Board AOI Systems SMTfly-S810
500mm/S AOI PCB Inspection Equipment , Printed Circuit Board AOI Systems SMTfly-S810
500mm/S AOI PCB Inspection Equipment , Printed Circuit Board AOI Systems SMTfly-S810
Specifications
Brand Name :
SMTfly
Model Number :
SMTfly-S810
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
USD1/Set
Supply Ability :
50Sets/Month
Delivery Time :
7-15 working days after payment
Packaging Details :
plywood case
Per-image Time :
<240ms(15um)
PCB thickness :
0.5mm-3.0mm
Moving Speed :
500mm/s
PCB warp Tolerance :
<2mm
Air Supply :
0.5MPA.40CM3/min
Wave Soldering Inspect :
01005&0.3mm pitch()15um
Description

Printed Circuit Board Automated Optical Inspection AOI-PCB AOI Inspection Machine,SMTfly-S810

Various vector image algorithms to get the best inspection capability

The vector image algorithms include logic operation ,distance of luminance boundary, chip tracing,OCR/OCB Luminance/color template matching, color distance, color distance, color extraction (RGB&HSV),VALUE-range of luminance offset of luminance, the minimum variation span of luminace,etc.More than 30 Kinds of the most advanced algorithms

Germany imported 5.0 MP Industry cameras

Wight a high-color reproduction, collocation a high-resolutiontelecentric lens, high NG identification, provide high-definition image output the AOI

Control system

All major components are used internationally renowned brands, in the premise of ensuring the stability and accuracy of the movement equipment with high service life and low failure rate.

The entire PCB match capability can detect extra part at any location

The entire PCB match function

High frame rate industrial cameras with telocentric lens

High-speed dynamic image acquisition can acquire hundreds of images per second, combined with the software entire board matching algorithm, can be used detect extra parts,foreign matter, scratches and other information on the PCB

Multi machines one operator, intelligent communication

Central server mode that gathers information from all the test machines to facilitate the integrated management of production, multiple machines need only one operator

Printed Circuit Board Automated Optical Inspection AOI-PCB AOI Inspection Machine Feature:

  • Vector analysis algorithm, integrated variety of software algorithms to achieve the best inspection capability;
  • The entire PCB match capability can detect extra parts at any location;
  • Germany imported 5.0 MP industry cameras;
  • The mew light source design, effectively eliminated the NG parts;
  • Offline programming;
  • Import control system to ensure high-precision equipment operation;
  • The equipment can communicate directly with the NG buffer device and other equipment through the communicate protocol;
  • Central server mode that gathers information from all the test machines to facilitate the integrated management of production, multiple machines need only one operator.

Automated Optical Inspection AOI-PCB AOI Inspection Machine Specification:

Category Item SMTfly-810
Recognition system Inspection The vector image algorithms include logic operation, distance of luminance boundary, chip tracing,OCR/OCV luminance/color template matching, color distance, color extraction (RGB&HSV)Value-range of luminance, offset of luminance, the minimum variation span of luminace,etc….more than 30 kinds of the most advanced algorithms
Camera Distal high speed CCD 5m pixel camera,20um(12um,15um,10um for option)
Lens High-resolutiontelecentric Lens
Lamp-house Rings RGB led lamp-house
FOV 40.95*40.95mm(20um)30.68*30.68(15um)
0201 Chip <7.6m
Per-image Time <240ms(15um)
Paste Printing Time Missing,shift,skewed,tombstone,billboard,overturned,reversed polarity,wrong,damaged
Component Defects Overflow,insufficeient,short solder,stain
Solder Defected

Overflow,insufficient,short solder, solder void
Wave Soldering Inspect 01005&0.3mm pitch()15um
Mechanism System PCB Conveyor Left to right ,PCB fixing:bottom-up,PCB warp correction ,Automatic PCB loading and unloading ,Adjustable clearance,Conforming SMEMA standard,Orbit clearance: 900±20mm
PCB size 50×70mm-400×330mm
PCB thickness 0.5mm – 3.0mm
PCB warp Tolerance <2mm
Component Clearance TOP≤25mm, BOT≤25mm
Driver AC server, camera moves in the directions of X/Y
Positioning accuracy <10um
Moving Speed 500mm/s


Printed Circuit Board Automated Optical Inspection AOI-PCB AOI Inspection Machine:

500mm/S AOI PCB Inspection Equipment , Printed Circuit Board AOI Systems SMTfly-S810

If you want to buy the machine,please contact us,we'll try our best to help you.
