750mm SMT Stencil Cleaning Machine For Cleaning Misprint Solder Paste SMTfly-750
750mm SMT Stencil Cleaning Machine For Cleaning Misprint Solder Paste SMTfly-750
750mm SMT Stencil Cleaning Machine For Cleaning Misprint Solder Paste SMTfly-750
750mm SMT Stencil Cleaning Machine For Cleaning Misprint Solder Paste SMTfly-750
Specifications
Brand Name :
SMTfly
Model Number :
SMTfly-750
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
USD1/Set
Supply Ability :
30Set/Month
Delivery Time :
7-15 working days
Packaging Details :
plywood case
Air Consumption :
200~600L/Min
Applicable Steel :
750*750*10mm
Volume :
41L
Net weight :
300Kg
Cleaning method :
360 degree
Best liquid usage :
25~35L
Description

750mm SMT Stencil Cleaner for Cleaning Misprint Solder Paste,SMTfly-750 Feature:

1. With different solutions, solvents, can be washed solder paste steel mesh, red plastic steel mesh, resin network, copper mesh.
2. SUS304 All stainless steel body, beautiful, wear-resistant, corrosion-resistant, in line with environmental requirements and standards.
3. All pipes, angle seat valves and other control components are used SUS304 material.
4. Pneumatic operation, no electricity, there is no fire and other security risks.
5. High-density isobaric rotary cleaning nozzle: clean and strong and will not damage the steel mesh tension.
6. three-stage filtration system, low exhaust and S-type exhaust pipe design, solvent recycling.
7. Large filter drum, replace the filter is more convenient; large flow, cleaning ability.
8. Optimized rotating mechanism, spray bar rotation more smoothly and no wear.
9. one-button operation and automatic drainage function, the operation is very simple.
10. Global high-quality parts, to ensure high quality, stable performance, long service life.
11. Modular control and quick-release design, maintenance more convenient.

750mm SMT Stencil Cleaner for Cleaning Misprint Solder Paste Specifications:

Project Specifications
Cleaning fluid Alcohols, water-based solvents, are applicable
Applicable screen size ≤ 750mm of the screen can be cleaned
Cleaning time 2-5 mins
Drying time 3-6 mins
Cleaning fluid consumption

200~300m/pcs

Name Technical Parameters
Applicable steel 750*750*10mm and the below dimensions
The maximum volume of the tank 41L
Best liquid usage 25~35L
Cleaning method 360 degree rotary liquid spray cleaning and compressed air drying
Cleaning time 2~5 mins(paste)
Drying time 3~5 mins
Extremal air supply 0.5~0.6(Map)
Air consumption 200~600L/Min
Outlet size D124*30mm maximum gravitational speed 3m/sec

Filtration system(level tree)
Net weight

 First/second filter/filter bag:1mm*20um(filter impurities and labels)
Three filter elements:1um(fitter solder paste and rosin particles)
Net weight 300KG
Dimension 800*950*1650mm


Three - level filtration system:

Project

Fitter

Brand

Filter replacement cycle

Level1 1mm

Impurities/Labels

SMTfly

No need

Level2 20um

Solder ball/Rosin particles

SMTfly

12 months

Level 1um

Paste/rosin paroles

SMTfly

1~3 mon(past)


750mm SMT Stencil Cleaning Machine For Cleaning Misprint Solder Paste SMTfly-750

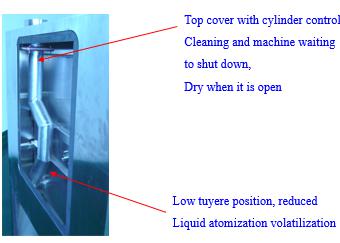

PCB Pneumatic Stencil Cleaner Stencil Cleaning Machine,The structure of Equipment and Cleaning Process​:


750mm SMT Stencil Cleaning Machine For Cleaning Misprint Solder Paste SMTfly-750
Utomatic Addition, Drainage System, Cleaning Solution Plus Liquid and Easy Drainage:

750mm SMT Stencil Cleaning Machine For Cleaning Misprint Solder Paste SMTfly-750
