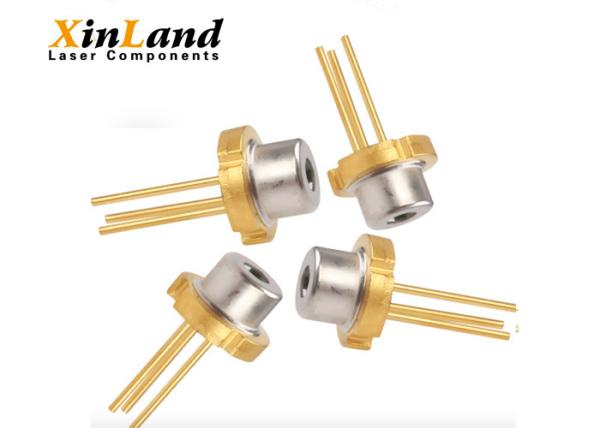

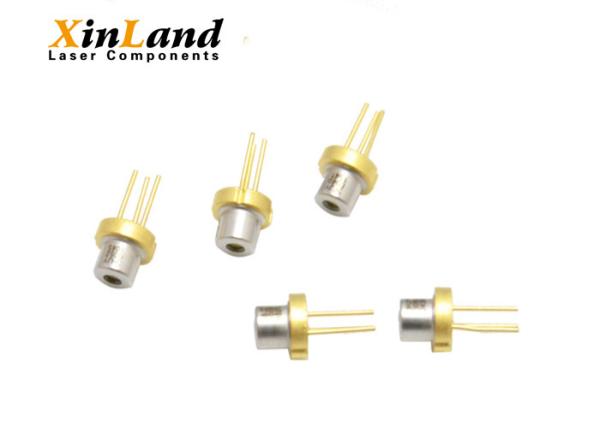

940nm Spatial Optical Communication Mini Laser Diode TO-18
940nm Spatial Optical Communication Mini Laser Diode TO-18
940nm Spatial Optical Communication Mini Laser Diode TO-18
940nm Spatial Optical Communication Mini Laser Diode TO-18
Specifications
Brand Name :
Xi'an Xinland International CO.,LTd
Model Number :
XL940LD-200
Certification :
N/A
Place of Origin :
China
MOQ :
100 Units
Price :
Negotiated
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
5000 units each Month
Packaging Details :
100pcs per carton
Center Wavelength :
940nm
Spectral Width :
4.0nm
Power :
200mW
Package :
TO-18
Beam Diameter :
5.6mm
Beam Divergence (FWHM) :
35°┴ x 8°//
Description

940nm 200mw Spatial Optical Communication Mini Laser Diode TO-18 Package

Product Overview:

The product adopts the quantum well structure design, a variety of wide structure, 200mW power output.

It has the characteristics of small volume, high transmitting power, good reliability and long life.

Application:
Solid-state laser pump

Target designation

Stage lighting

Spatial Optical Communication


Technical Datasheet:

1. Maximum absolute rated parameters(Tc=25℃)

Parameter Symbol Value Unit
Optical Output Po 200 mW
Reverse Voltage Vr 2 V
Operating Temperature Top -10~+40 oC
Storage Temperature Tstg -15~+85 oC

2. Main photoelectric property sheet(Tc=25℃)

Parameter Symbol Condition Minimal Typical Maximum Unit
Laser Wavelength λ P=200mW 937 940 943 nm
Threshold Current Ith - - 35 65 mA
Working Current Iop P=200mW - 260 - mA
Operating Voltage Vop - - 1.7 1.9 V
Beam Parallel θ ∥ P=200mW - 6.5 10 o
Divergence Angle Vertical θ ⊥ P=200mW - 36 40 o

3. The main characteristic curve

Figure 1:Power-current, voltage-current relationship

940nm Spatial Optical Communication Mini Laser Diode TO-18

4. Spetrum

940nm Spatial Optical Communication Mini Laser Diode TO-18
