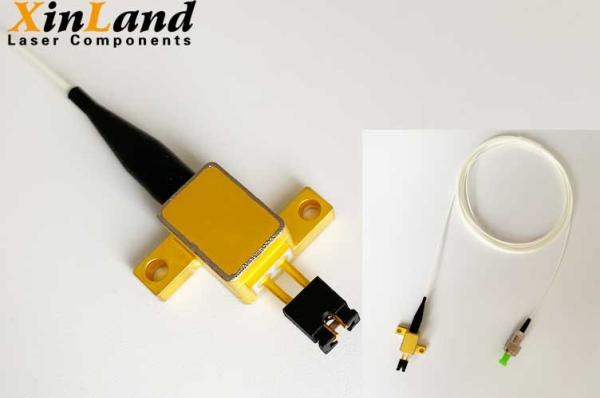

105um 200um 5W 808nm FC Lens Multimode Fiber Coupled Laser Diode
105um 200um 5W 808nm FC Lens Multimode Fiber Coupled Laser Diode
105um 200um 5W 808nm FC Lens Multimode Fiber Coupled Laser Diode
105um 200um 5W 808nm FC Lens Multimode Fiber Coupled Laser Diode
Specifications
Brand Name :
xinland
Model Number :
XL 808-005-M-H2
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiated
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs per months
Delivery Time :
5-8 work days
Packaging Details :
300pcs/carton
Type :
CW
Wavelength :
808nm
Power :
5w
Package :
2-pin package
Description

4W @ 808nm FC Lens Multimode Fiber Coupled Laser Diode

808nm~810nm 5W Fiber Coupled Diode Laser Module with 105um or 200um Multi- mode Fiber | 808nm 5W Diode Laser Module for Medical |2-Pin Package| 105um, 200um Fiber Core| High Power LD XL 808-005-M-H2

105um 200um 5W 808nm FC Lens Multimode Fiber Coupled Laser Diode

Technical Parameter

Min. Type Max.
Central Wavelength (@25 deg.C) +-3nm 808nm +-10nm
Spectral Width (FWHM) ----- 3nm -----
Output power ------ 5w ------
Temperature coefficient of wavelength 0.3nm/deg.c
Threshold Current (Typ.)
1.0A

Operating Current (Typ.)		 5.7A
Operating Voltage 1.9V
Slope Efficiency 1.1W/A
Fiber Core Diameter 105um (200um optional)
Fiber Numerical Aperture 0.22
Fiber Length 100cm
Connector Type FC(SMA905 Optional )

Package Style

TEC Cooling

 2-pin

2-Pin Package Overview:

105um 200um 5W 808nm FC Lens Multimode Fiber Coupled Laser Diode
