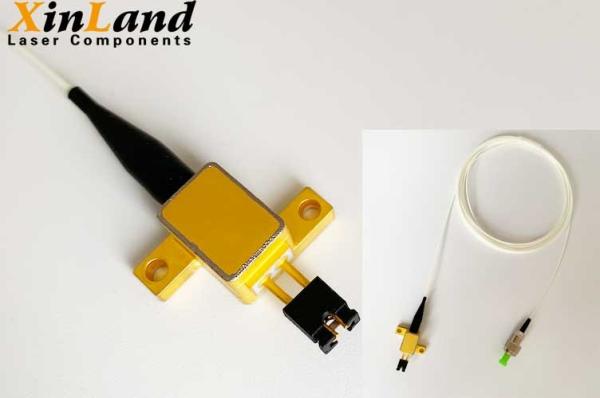

808nm-810nm 4W-4.5W Fiber Coupled Diode Laser Module 105um Multi mode Fiber
808nm-810nm 4W-4.5W Fiber Coupled Diode Laser Module 105um Multi mode Fiber
808nm-810nm 4W-4.5W Fiber Coupled Diode Laser Module 105um Multi mode Fiber
808nm-810nm 4W-4.5W Fiber Coupled Diode Laser Module 105um Multi mode Fiber
Specifications
Brand Name :
xinland
Model Number :
XL808-004-M-H2
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiated
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs per months
Delivery Time :
5-8 work days
Packaging Details :
300pcs/carton
Package :
2-pin
Central Wavelength :
808nm
Power :
4W
Usage :
Medical Laser Equipment
Lead Soldering Temperature :
260 Deg.C
Fiber core :
105um
connector Type :
FC(SMA905)
Style :
Portable
Laser type :
Diode laser
Reverse Voltage :
2.0v
Description

808nm~810nm 4W~4.5W Fiber Coupled Diode Laser Module with 105um Multi-mode Fiber | 808nm 4W Diode Laser Module for Medical |2-Pin Package| 105um Fiber Core| High Power LD XL808-004-M-H2

Technical Parameter

Min. Type Max.
Central Wavelength (@25 deg.C) +-3nm 808nm +-10nm
Spectral Width (FWHM) ----- 3nm -----
Output power 4w 4.5w ------
Temperature coefficient of wavelength 0.3nm/deg.c
Threshold Current (Typ.)
0.8A

Operating Current (Typ.)		 5.2A
Operating Voltage 1.9V
Slope Efficiency 1.0W/A
Fiber Core Diameter 105um
Fiber Numerical Aperture 0.22
Fiber Length 100cm
Connector Type FC(SMA905 Optional )

Package Style

TEC Cooling

 2-pin

808nm-810nm 4W-4.5W Fiber Coupled Diode Laser Module 105um Multi mode Fiber
