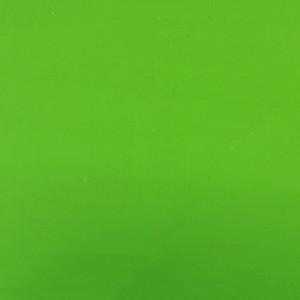

Anti Flaming 860-960nm OD4+ Laser Viewing Window Sheet Anti Explosion
Anti Flaming 860-960nm OD4+ Laser Viewing Window Sheet Anti Explosion
Anti Flaming 860-960nm OD4+ Laser Viewing Window Sheet Anti Explosion
Anti Flaming 860-960nm OD4+ Laser Viewing Window Sheet Anti Explosion
Anti Flaming 860-960nm OD4+ Laser Viewing Window Sheet Anti Explosion
Anti Flaming 860-960nm OD4+ Laser Viewing Window Sheet Anti Explosion
Specifications
Brand Name :
xinland
Model Number :
XL8PW6D5T
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiated
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs per months
Delivery Time :
5-8 work days
Packaging Details :
5PC/CARTON
Product Name :
ANTI-FLAMING Laser Protective Window Sheet
Keyword :
Anti-explosion Laser Protective Window Sheet
Color :
Dark Green
Protection wavelength :
860-960nm OD4+,960-2000nm OD5+,1050-1760nm OD6+
Dimension :
24x36inches,24x24inches ,48x96inches
Standards :
ansi z136.1 CE EN12254
Description

ANTI-FLAMING Anti-explosion Laser Protective Window SheetINtroduction :

This laser protective window can achieve both laser-proof and impact-resistant. The laser protective window in the laser workplace requires two important indicators, one is safe and effective protection of laser radiation, the second is safety explosion-proof and anti-breaking. The third is flame retardant. The PMMA (Acrylic, ACRYLIC) protective sheet on the market can meet the requirements of laser radiation protection, but the acrylic sheet is very brittle and its impact resistance is very poor. Once it is impacted by an external force, it will break into a sharp shape and splash and hurt the human body. Our company has overcome technical problems and successfully developed a PC (polycarbonate) laser protective window, which realizes the perfect combination of laser safety and mechanical safety, meanwhile the flame retardant is all achieved by one laser safety window sheet.

Technical Data of the ANTI-FLAMING Laser Protective Window Sheet

MATERIAL PC
Inflaming Retarding and fire prevention anti-flaming grade is UL94 V1
Protection Grade 860-960nm OD4+,960-2000nm OD5+,1050-1760nm OD6+

OPTICS DIAGRAM OF ANTI-FLAMING Anti-explosion Laser Protective Window Sheet

Anti Flaming 860-960nm OD4+ Laser Viewing Window Sheet Anti Explosion

Anti Flaming 860-960nm OD4+ Laser Viewing Window Sheet Anti ExplosionAnti Flaming 860-960nm OD4+ Laser Viewing Window Sheet Anti Explosion

CE Certificate of ANTI-FLAMING Anti-explosion Laser Protective Window Sheet

Anti Flaming 860-960nm OD4+ Laser Viewing Window Sheet Anti Explosion

Shipment of ANTI-FLAMING Anti-explosion Laser Protective Window Sheet

Anti Flaming 860-960nm OD4+ Laser Viewing Window Sheet Anti Explosion

CATALOG OF RELATIVE ANTI-FLAMING Anti-explosion Laser Protective Window Sheet

Series NO. Protection Wavelength Dimension(mm) OD vlt
XL1PW5D5T 190~550nm 1280*1000*5mm 5+ 15%
XL2PW4D5T 580nm~750nm 1280*1000*5mm 5+ 40%
XL3PW4D5T 800~1100nm 1280*1000*5mm 4+ 73%
XL3PW6D5T 800~1100nm 1280*1000*5mm 6+ 60%
XL3PW8D5T 800~1100NM 1280*1000*5mm 8+ 42%
XL3PW4GD5T 190~540nm & 800~1100nm 1280*1000*5mm 4+ 25%
XL4PW4D5T 190~450nm & 800~1700nm 1280*1000*5mm 4+ 35%
XL5PW4D5T 190~420nm & 860~1300nm 1280*1000*5mm 4+ 28%
XL6PW4D3T 1064nm&10600nm 1200*1000*3.3mm 4+ 40%
XL6PW5D5T 1064nm&10600nm 1200*1000*5mm 5+ 40%
XL6PW6D5T 1064nm&10600nm 1200*1000*5mm 6+ 30%
XL7PW4D5T 10600nm 1200*1000*5mm 6+ 90%
XL8PW4D6T 860-960nm ,960-2000nm,1050-1760nm 1200*1000*5mm 6+ 53%
