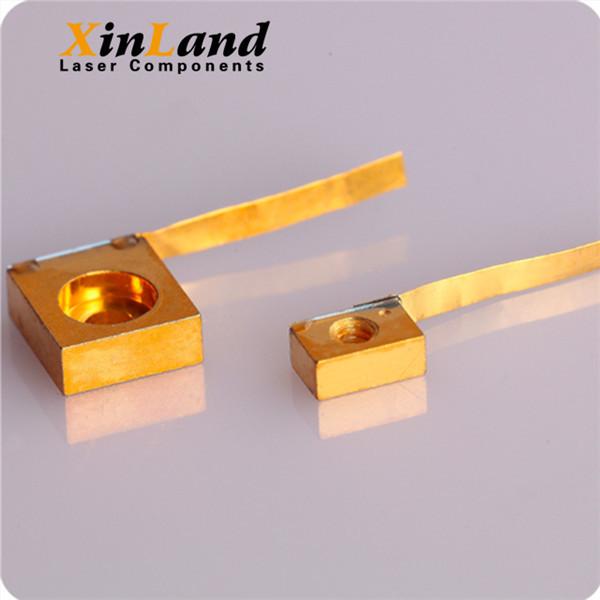

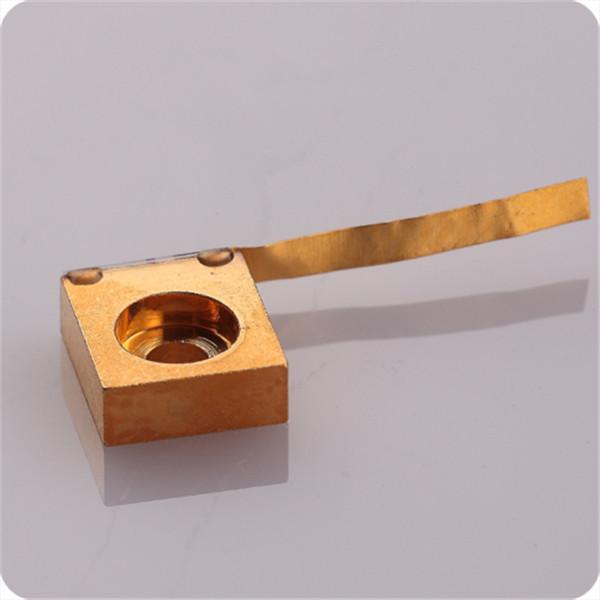

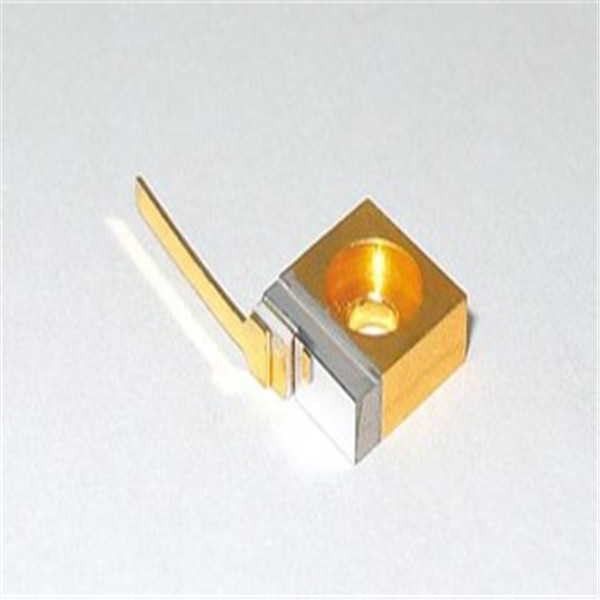

940nm 4W VCSEL Mini Laser Diode For Medical TO-18 5.6mm Micro
940nm 4W VCSEL Mini Laser Diode For Medical TO-18 5.6mm Micro
940nm 4W VCSEL Mini Laser Diode For Medical TO-18 5.6mm Micro
940nm 4W VCSEL Mini Laser Diode For Medical TO-18 5.6mm Micro
940nm 4W VCSEL Mini Laser Diode For Medical TO-18 5.6mm Micro
940nm 4W VCSEL Mini Laser Diode For Medical TO-18 5.6mm Micro
Specifications
Brand Name :
XINLAND
Model Number :
XL-LD8505
Certification :
CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
100pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Dozen/Dozens per Day
Delivery Time :
7 days
Packaging Details :
1pcs/polybag,10pcs/inner box,100pcs/ctn
Place of Origin: :
Xi'an Shaanxi
Brand Name: :
XINLAND
Infrared Light Output : :
λp=850nm
Package Type :
TO-18(Ø5.6mm)
Laser type :
Diode laser
Style :
Portable
Color :
blue,red and other as your like
Keyword :
blue dental mini laser diode
Description

940nm 4W VCSEL Mini Laser Diode For Medical TO-18(Ø5.6mm) Micro

PRODUCT FEATURES
940nm Multimode VCSEL 3D Imaging

High Efficiency, 30%@25°C, >25% @50°C

Gesture Recognition

Oxide Isolation Technology

Laser Illumination

>2000 element array

Medical applications

Modulation bandwidth >1Gbps

 Broadband acesss nework
Relatively Small emission area, easy to collimate Military Application
PRODUCT IDENTITY
Part Number Description
LD0940-C004-0220CP 940nm VCSEL LD

Absolute Maximum Ratings

Parameter Rating
Storage Temperature -40 to +85°C
Case Operating Temperature -20 to 70°C
Relative Humidity 5% to 90%
Reverse Power Supply Voltage 5V
Maximum continuous forward current 8A
ESD Exposure (Human Body Model) 1KV1

Notice

Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operations section for extended periods of time may affect reliability.

The inherent design of this component causes it to be sensitive to electrostatic discharge (ESD). To prevent ESD-induced damage and/or degradation to equipment, take normal ESD precautions when handling this produc

LD0940-C004-0220CP Product Specification – April 2016

Electro-Optical Characteristics (Top 25 deg C unless otherwise stated)

VCSEL Parameters Test Condition Symbol Min. Typ. Max Units Notes
.
Optical Power Output Po 4 4.2 W 2
Threshold Current ITH 1.5 A
Slope Efficiency Po =4W η 1.01 mW/mA 3
Wall Plug Efficiency IF=6.5A 30 %
Emission Area 1.9x1.75 mm
Peak Wavelength IF=6.5A λP 930 940 950 nm
Laser Forward Voltage IF=6.5A VF 1.6 1.8 2 V
Series Resistance IF=6.5A RS 0.23 0.28 0.32 Ohms
Beam Angle IF=6.5A 20 Degrees
Wavelength shift IF=6.5A 0.07 nm/°C

Notes:

1.Reliability is a function of temperature.

2.For the purpose of these tests, IF is DC current.

3.Slope efficiency is defined as PO/ IF.

Environmental Specifications
Parameter Symbol Min Typ Max Units Ref.
Case Operating Temperature Top -20 60 °C
Storage Temperature Tsto -40 85 °C

940nm 4W VCSEL Mini Laser Diode For Medical TO-18 5.6mm Micro

940nm 4W VCSEL Mini Laser Diode For Medical TO-18 5.6mm Micro940nm 4W VCSEL Mini Laser Diode For Medical TO-18 5.6mm Micro
