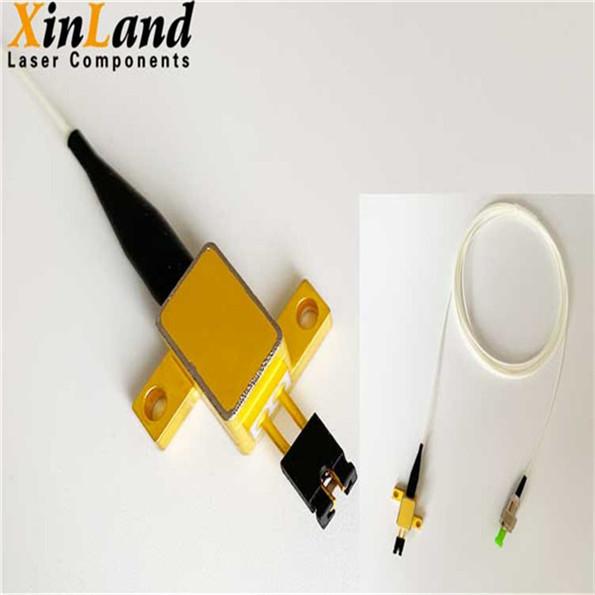

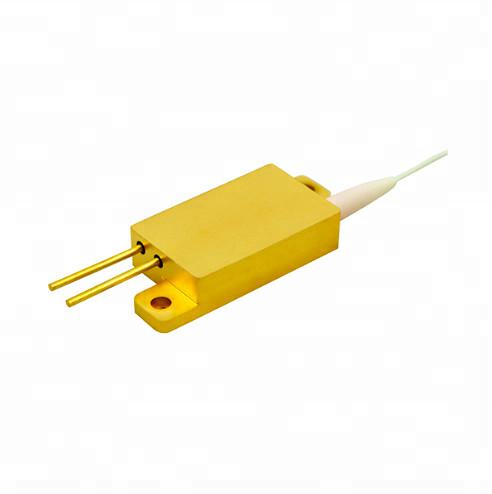

10W Fiber Coupled Mini Laser Diode For Medical VCSEL LD
10W Fiber Coupled Mini Laser Diode For Medical VCSEL LD
10W Fiber Coupled Mini Laser Diode For Medical VCSEL LD
10W Fiber Coupled Mini Laser Diode For Medical VCSEL LD
10W Fiber Coupled Mini Laser Diode For Medical VCSEL LD
10W Fiber Coupled Mini Laser Diode For Medical VCSEL LD
10W Fiber Coupled Mini Laser Diode For Medical VCSEL LD
10W Fiber Coupled Mini Laser Diode For Medical VCSEL LD
Specifications
Brand Name :
XINLAND
Model Number :
15w 808nm
Certification :
CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
1pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Dozen/Dozens per Day
Delivery Time :
7 days
Packaging Details :
22*19*21cm
Place of Origin: :
Shaanxi, China
Package Type: :
Through Hole
Max. Reverse VoltagMax. Reverse VoltagMax. Reverse VoltagMax. Reverse VoltagMax. Reverse VoltagMax. :
5.0V
Max. Reverse Curren :
5.0uA
Wavelength: :
808nm
Product name: :
15w 808nm fiber coupled laser diode
Emitting color: :
Infrared Red
Description

9xxnm 10W Fiber Coupled Mini Laser Diode For Medical VCSEL LD

XINLAND is a professional laser components supplier in China. The company has 8 years manufacture and selling experience and 8 years exporting experiences.Its product mainly include ,Laser Diode Module,Laser Scope ,Line Laser Generator , DPSS Laser ,Laser Pointer (RGB)

Laser Safety Glasses ,Laser Protection Window and Party Supplies

PRODUCT FEATURES

 APPLICATIONS
• 9xxnm Multimode Fiber coupled 3D Imaging
High Efficiency, 50%@25°C, >35% @50°C Laser Illumincation
•SMA905 connector •
Medical applications
•
Robust packaging		 •
Military Application

Absolute Maximum Ratings

Parameter Rating
Storage Temperature -40 to +85°C
Case Operating Temperature 0 to 50°C
Relative Humidity 5% to 90%
Reverse Power Supply Voltage 2V
Maximum continuous forward current 13A
ESD Exposure (Human Body Model) 1KV1

Electro-Optical Characteristics (Top 25 deg C unless otherwise stated)

VCSEL Parameters Test Condition Symbol Min. Typ. Max Units Notes
Optical Power Output Po 10 W 2
Threshold Current ITH 1 A
Slope Efficiency Po =10W η 0.9 mW/mA 3
Wall Plug Efficiency IF=11A 40 %
core/cladding diameter 105/125 um
Peak Wavelength IF=11A λP 9xx nm
Laser Forward Voltage IF=11A VF 2 V
Series Resistance IF=11A RS Ohms
Beam Angle IF=11A 25 Degrees
Wavelength shift IF=11A 0.3 nm/°C

Notes:

Reliability is a function of temperature.

For the purpose of these tests, IF is DC current.

Slope efficiency is defined as PO/ IF.

Features
Multiple single emitters fiber coupling

High brightness

Parallel seam sealing

Anti-condensation design

Advantages
Compact size

Light weighted (~45g)

10W Fiber Coupled Mini Laser Diode For Medical VCSEL LD

10W Fiber Coupled Mini Laser Diode For Medical VCSEL LD
