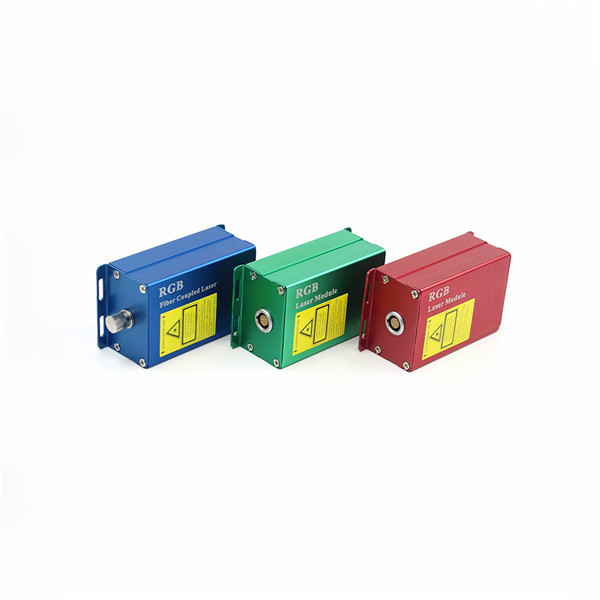

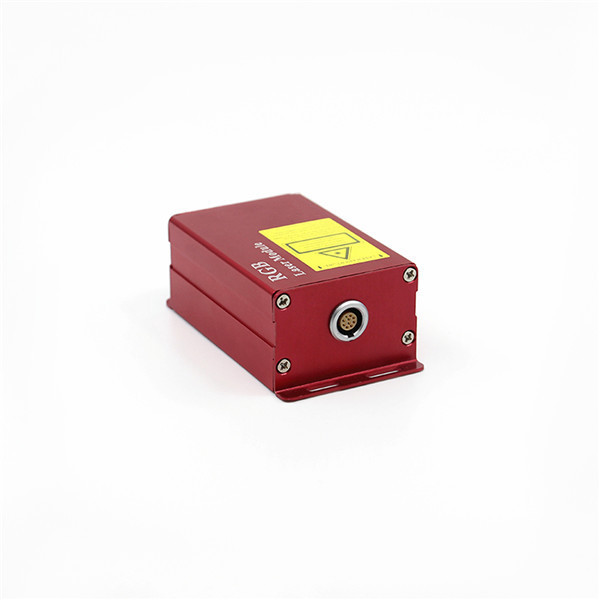

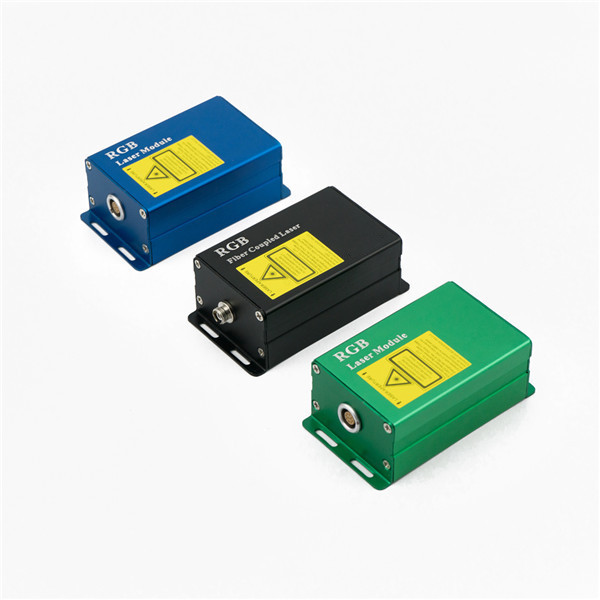

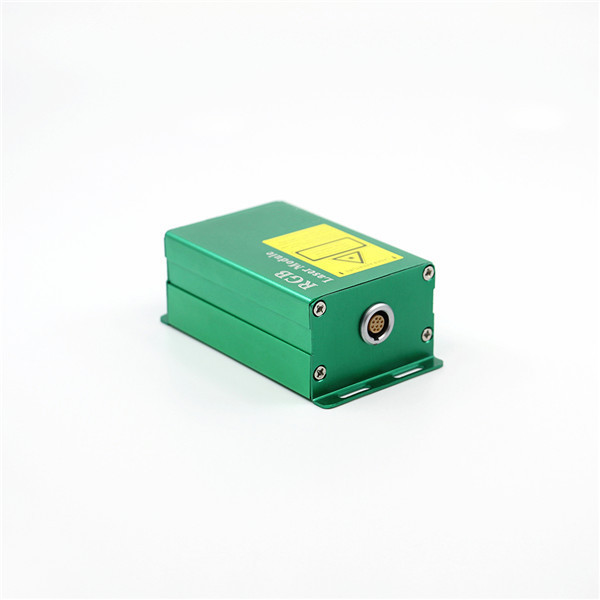

Fiber Coupled RGB 635nm 520nm 450nm DPSS Laser Module
Fiber Coupled RGB 635nm 520nm 450nm DPSS Laser Module
Fiber Coupled RGB 635nm 520nm 450nm DPSS Laser Module
Fiber Coupled RGB 635nm 520nm 450nm DPSS Laser Module
Fiber Coupled RGB 635nm 520nm 450nm DPSS Laser Module
Fiber Coupled RGB 635nm 520nm 450nm DPSS Laser Module
Fiber Coupled RGB 635nm 520nm 450nm DPSS Laser Module
Fiber Coupled RGB 635nm 520nm 450nm DPSS Laser Module
Specifications
Brand Name :
XINLAND
Model Number :
RGB Laser Diode Module
Certification :
CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
1pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Dozen/Dozens per Day
Delivery Time :
7 days
Packaging Details :
22*19*21cm
Place of Origin: :
Shaanxi, China
Condition: :
New
Warranty: :
1 Year, 12 months
After-sales Service Provided: :
Online support
Spare Parts Type: :
laser module
Video outgoing-inspection: :
Not Available
Machinery Test Report: :
Provided
Marketing Type: :
Ordinary Product
Description

Fiber Coupled RGB 635nm 520nm 450nm DPSS Laser Kit Laser Module

Quick Details

Place of Origin:Shaanxi, China

Condition:New

Warranty:1 Year, 12 months

After-sales Service Provided:Online support

Spare Parts Type:laser module

Video outgoing-inspection:Not Available

Machinery Test Report:Provided

Marketing Type:Ordinary Product

Brand Name:XINLAND

Key Selling Points:Long Service Life

Showroom Location:None

After Warranty Service:Online support

Applicable Industries:

Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company

Weight (KG):0.2 KG

Local Service Location:None

Product name:RGB Laser Diode Module

Output Power:1mW~100mW

Housing material:Brass or aluminium

Certificated:ISO9001:2008, CE, ROHS, MSDS

Output Aperture:2.0mm, 3.0mm, 5.0mm

Divergence:0.2 to 1.0 mrad

Wavelength:450nm, 520nm, 635nm

Beam Size:<1,0mm @1m, or <2,0mm @3m, or <5,0mm @10m

Supply Ability

Supply Ability:100000 Piece/Pieces per Month

Packaging & Delivery

Port:Xi’an Shaanxi

Lead Time :

Quantity(Pieces) 1 - 1 >1
Est. Time(days) 15 To be negotiated

fiber coupled RGB 635nm 520nm 450nm laser diode module

XINLAMND could customize RGB fiber-coupled laser

module. The diameters of fiber have 105μm,125μm,170μm,200μm,multi-mode fiber, etc. It has SMA, FC or ST connector and different fiber length, The wavelength includes 445nm,520nm,635nm. The LD driver or TEC temperature control could be customized.

XINLAND could customize RGB laser diode module.

The wavelength includes 445nm, 520nm, 635nm. The divergence is 0.2-1.0mrad, and output aperture is 2.0mm, 3.0mm, 5.0mm.

Key Features Of RGB Free Space Laser Diode Module: Applications:

Compact size

· TTL and analog modulation

· Adjustable output power up to 100mW

· High optical power and multi-color

· Housing material: aluminum anodized or brass

· Fiber-coupled output or collimated beam output

· Uniform intensity distribution

· High reliability and high beam quality

1. Laser scanning display
2. Measurement light source
3. Medical and cosmetic treatment
4. Bio technology
5. Bio-medical instrument
6. Semiconductor
7. DNA sequencing or life sciences
8. Photo finishing
9. RGB illumination systems

10.Scientific research

XINLAND RGB Fiber Coupled Laser Module Specifications:

Item Specification
Wavelength 445nm, 520nm, 635nm
Output Power 1mw-300mw
Fiber Core 105μm,125μm, 170μm, 200μm
Numerical Aperture 0.22mm, 0.37mm, 0.53mm
Fiber Length 0.5-10m
Optics Glass lens
Packaged Type Through Hole
Case Material Aluminum black anodized
Beam Size Customized
Connector FC, ST or SMA
Dimension Customized
Divergence 0.6mrad
CDRH Class Class IIIb Laser, ROHS compatible
Operating Temperature -10-50°C
Storage Temperature -40-80°C
Voltage Stability >98% (at 2.7-5.5VDC)
Temperature Stability >95% (at -10°C-50°C)
Protection Static, Surge, Reverse Polarity Protected
Lifetime >6,000hrs
