GH06330A2G Mini Laser Diode 635nm~638nm Through Hole Package
GH06330A2G Mini Laser Diode 635nm~638nm Through Hole Package
Specifications
Brand Name :
XINLAND
Model Number :
XLD-635-001-2
Certification :
CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
100pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Dozen/Dozens per Day
Delivery Time :
7 days
Packaging Details :
1pcs/polybag,10pcs/inner box,100pcs/ctn
Type: :
Mini Laser Diode
Place of Origin: :
Xi’an Shaanxi China
Brand Name: :
XINLAND
Model Number: :
GH06330A2G
Package Type: :
Through Hole Package
po(mW) max: :
30MW
Top(C): :
-10-60
po(mW) min: :
30MW
Description

GH06330A2G Mini Laser Diode 635nm~638nm Through Hole Package

The industrial laser modules use high quality laser diode with special designed collimating lens and high stable driven circuit (APC). The characteristics are high reliability, long life span (>10,000hrs), and high stability.

Quick Details

Place of Origin:Xi’an Shaanxi China

Brand Name:XINLAND

Model Number:GH06330A2G

Type:Laser Diode

Package Type:Through Hole

po(mW) max:30MW

Top(C):-10-60

po(mW) min:30MW

Ith(mA):30mA

Iop(mA):50mA

Vop(v):2.3V

Supply Ability

Supply Ability:10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Detailselectrostatic bag

Port:Xi’an Shaanxi China

Lead Time :

Quantity(Pieces) 1 - 500 >500
Est. Time(days) 5 To be negotiated



echnical Parameter

Min. Type Max.
Central Wavelength (@25 deg.C) 630nm 638nm 645nm
Spectral Width (FWHM) ----- 2.0nm -----
Output power ------ 1.0w ------
Recommended Operating Temperature 25°C
Beam Divergence (FWHM) 23°┴ x 2°// 35°┴ x 7.5°// 45°┴ x 20°//
Slope Efficiency ----- 1.0W/A --------
Threshold Current (Typ.) ---- 0.3A 0.5A
Operating Current (Typ.) ------- 1.4A 1.6A
Operating Voltage ------- 2.4V 2.8V

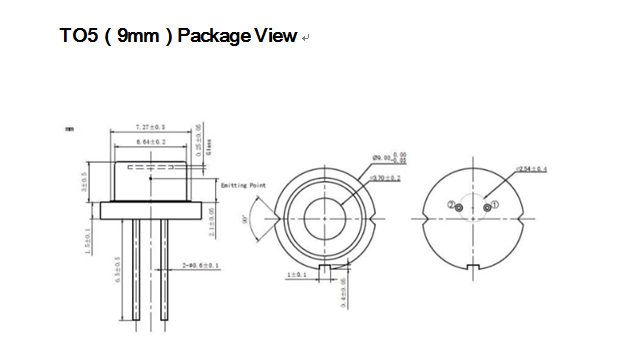

Package Style TO5


GH06330A2G Mini Laser Diode 635nm~638nm Through Hole Package
GH06330A2G Mini Laser Diode 635nm~638nm Through Hole Package

GH06330A2G Mini Laser Diode 635nm~638nm Through Hole Package

Electrically shorten LD module and store in non-extreme conditions. Suggest using the constant current power supply.
