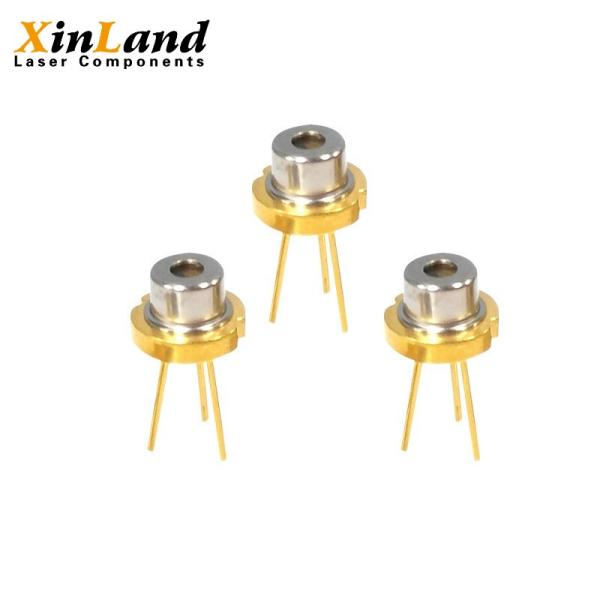

Single Mode 520nm 10mW Green Laser Diode Small For Laser Scribing Instrument
Single Mode 520nm 10mW Green Laser Diode Small For Laser Scribing Instrument
Single Mode 520nm 10mW Green Laser Diode Small For Laser Scribing Instrument
Single Mode 520nm 10mW Green Laser Diode Small For Laser Scribing Instrument
Specifications
Brand Name :
XINLAND
Model Number :
XLD-520-010m-1-PD Laser Diode
Certification :
CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
100pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Dozen/Dozens per Day
Delivery Time :
7 days
Packaging Details :
1pcs/polybag,10pcs/inner box,100pcs/ctn
Type :
Laser Diode
Wavelength :
520nm
Output Power :
10mW
Package Type: :
TO18
Laser Color :
Green
Laser Type :
FP
Material :
Semiconductor
PD :
Yes
Description

Factory Wholesale Fiber Coupled 520nm 10mW Green Laser Diode Hot Selling Small Laser Diodes

Product Details​:

Model Number: XLD-520-010m-1-PD

Type:Laser Diode

Power:10mW

Wavelength:520nm

Package Type: TO18

Laser Color: Green

Laser Diode Lifetime Requirements:

  • The operating lifetime of a laser diode is dependent on its operating temperature. A high quality laser diode operating at 20°C could have a lifetime in excess of 100,000 hours.
  • The temperature measured is the case temperature of the laser diode package.
  • Failure of a laser diode is usually defined as the point in time when the operating current required to maintain a specified output power is increased by some percentage (50%) of the initial current.

Single Mode 520nm 10mW Green Laser Diode Small For Laser Scribing Instrument

Product Specifications:

Wavelength Part Number Output Power Mode Type Laser Type Package PD FAC
520nm XLD-520-010m-1-PD 10mW SM FP TO18 √ ×
XLD-520-050m-1 50mW SM FP TO38 × ×
XLD-520-050m-1-PD 50mW SM FP TO18 √ ×
XLD-520-080m-1 80mW SM FP TO38 × ×
XLD-520-080m-1-PD 80mW SM FP TO18 √ ×

Precautions:

1. The laser light emitted by the laser diode may cause damage to human eyes. When the diode is working, it is strictly forbidden to look directly at its end face.

2. The device needs a suitable drive power supply, the instantaneous reverse current cannot exceed 20μA, and the reverse voltage cannot exceed 3V, otherwise the device will be damaged.

3. When the laser diode is connected to the power supply, the output voltage of the power supply should be zero; when the current is adjusted, it should be increased or decreased slowly to avoid damaging the device due to the impact current.

4. The device should be stored in a dry environment.

Single Mode 520nm 10mW Green Laser Diode Small For Laser Scribing Instrument
