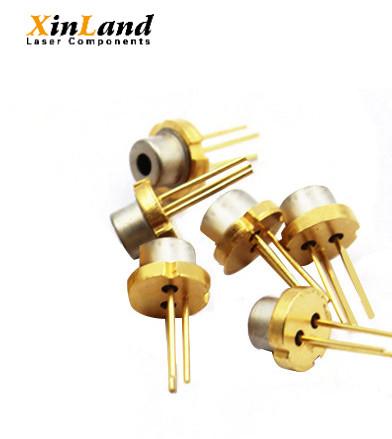

10mW-300mW 405nm Blue Laser Diode Purple Light Dedicated To Laser Modules
10mW-300mW 405nm Blue Laser Diode Purple Light Dedicated To Laser Modules
10mW-300mW 405nm Blue Laser Diode Purple Light Dedicated To Laser Modules
10mW-300mW 405nm Blue Laser Diode Purple Light Dedicated To Laser Modules
Specifications
Brand Name :
XINLAND
Model Number :
XLD-405 Laser Diode
Certification :
CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
100pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Dozen/Dozens per Day
Delivery Time :
7 days
Packaging Details :
1pcs/polybag,10pcs/inner box,100pcs/ctn
Place of Origin: :
Xi'an Shaanxi
Wavelength :
405nm
Output Power :
10-300mW
Mode Type :
SM
Laser Type :
FP
Package Type: :
TO18/TO38
Description

Factory Wholesale Blue Laser Diode High Quality Laser Diodes Blue Purple Light Dedicated to Laser Modules

Product Usage:

  • The specificity of the laser emission principle and the production process determines that the laser has the characteristics that ordinary light does not have: three good (good monochromaticity, good coherence, good directivity) and high (high brightness).
  • Using the laser’s good directionality and high brightness, it can be widely used in health care, military, counterfeiting, security, stage lights and other products.

Product Specifications:

Wavelength Part Number Output Power Mode Type Laser Type Package PD FAC
405nm XLD-405-010m-1-PD 10mW SM FP TO18 √ ×
XLD-405-150m-1(3.8mm) 150mW SM FP TO38 × ×
XLD-405-150m-1(5.6mm) 150mW SM FP TO18 × ×
XLD-405-200m-1 200mW SM FP TO38 × ×
XLD-405-250m-1 250mW SM FP TO18 × ×
XLD-405-300m-1(SM) 300mW SM FP TO18 × ×

Light Emission from a Laser Diode:

10mW-300mW 405nm Blue Laser Diode Purple Light Dedicated To Laser Modules

Precautions:

1. This component is sensitive to static electricity. Do not touch the laser tube body directly with your hands without taking anti-static measures.
2. This product must have a qualified drive circuit to work normally, the voltage of different power is the same, but the working current is different.
3. The driving current of the circuit to the tube needs to be controlled within a safe range, otherwise it will affect the life.

4. The laser tube should be stored or worked in a dry environment to prevent condensation, which will damage the laser tube.
