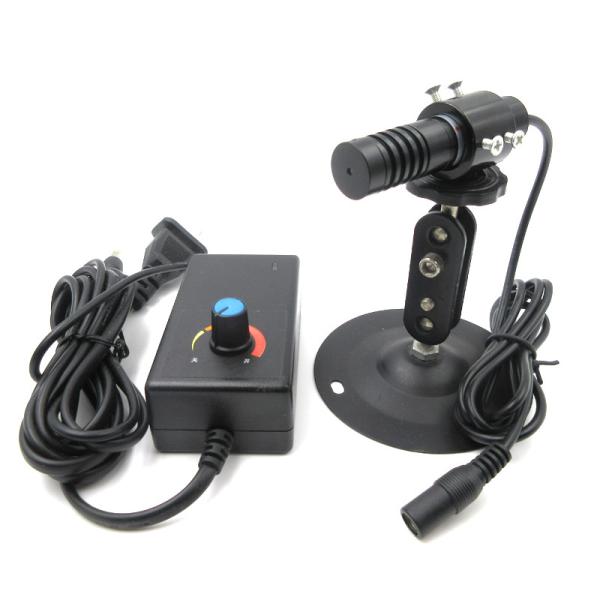

650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder
650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder
650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder
650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder
650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder
650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder
650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder
650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder
650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder
650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder
Specifications
Brand Name :
xinland
Model Number :
DOE Laser Module
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiated
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs per months
Delivery Time :
5-8 work days
Packaging Details :
1pc carton
Product Type :
DOE Laser Module
Lens Angle :
30.2°
Light Source :
Red 100mW/Green 50mW/Blue 100mW
Wavelength :
650nm/520nm/450nm
Description

30.2° with Crossed Point Rectangle Adjustable Linewidth Brightness Laser Viewfinder Laser Module

Light Spot 0.5 meters Details:

Lens angle: 30.2°
Length (30.2°): 270mm
Width (23.2°): 206mm
Cross length (9.14°): 80mm
Cross width (6.98°): 61mm
L-shaped side length: 29mm
Installation height 0 meters - 5 meters can be used
Wavelength, Output Power, Voltage and Size Customizable

650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder

Name Wavelength Output Power Voltage(V) Electric Current Size Other Parameters
30.2° with Crossed Point Rectangle Adjustable Linewidth Brightness Red Laser 650nm 100mw DC 2.8-5.2V <500mA Φ16x70mm Lens angle: 30.2°
Light spot 0.5 meters:
Length (30.2°): 270mm
Width (23.2°): 206mm
Cross length (9.14°): 80mm
Cross width (6.98°): 61mm
L-shaped side length: 29mm
Installation height 0 meters - 5 meters can be used
Wavelength, Output Power, Voltage and Size Customizable
30.2° with Crossed Point Rectangle Adjustable Linewidth Brightness Green Laser 520nm 50mw DC 2.8-5.2V <500mA Φ16x70mm
30.2° with Crossed Point Rectangle Adjustable Linewidth Brightness Blue Laser 450nm 100mw DC 2.8-5.2V <500mA Φ16x70mm

Optical lens: grating sheet (imported from Germany)

650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder

650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder

650nm 30.2° DOE Laser Module Rectangle Adjustable Linewidth Brightness Laser Viewfinder

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
