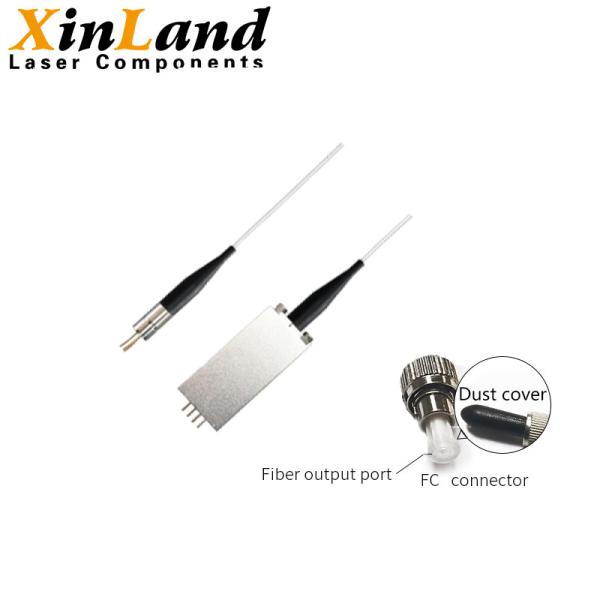

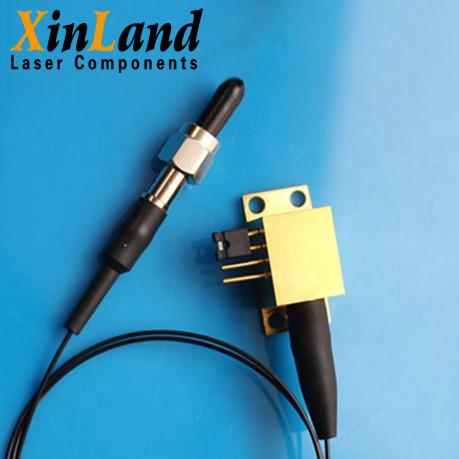

High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type
High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type
High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type
High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type
High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type
High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type
High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type
High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type
Specifications
Brand Name :
XINLAND
Model Number :
XLP-635~XLX-650 Multi Mode Fiber Coupled Laser Diode
Certification :
CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
100pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Dozen/Dozens per Day
Delivery Time :
7 days
Packaging Details :
1pcs/polybag,10pcs/inner box,100pcs/ctn
Place of Origin: :
Xi'an Shaanxi
Wavelength :
635nm 650nm
Fiber Type :
MMF
Fiber Core :
50-200um
Package Type: :
Coaxial/8-Pin/4-Pin/14-Pin/9-Pin
Connector :
FC
Description

High Brightness Red Laser 635nm 650nm Fiber Laser Diodes Medical Diode Laser Five Package Type

Product Details​:

Type: Fiber Coupled Laser Diode

Wavelength: 635nm 650nm

Fiber Type: MMF

Fiber Core: 50-200um

Package Type: Coaxial/8-Pin/4-Pin/14-Pin/9-Pin

Connector: FC

Product Specifications:

Wavelength Output Power Fiber Type Fiber Core Package Connector PD TEC
635nm 5mW MMF 105um Coaxial FC √ ×
100-300mw/1W MMF 105um Coaxial FC × ×
100-300mw MMF 105um 8-Pin FC ○ √
100mW MMF 105um 8-Pin FC √ √
400mW MMF 105um 4-Pin FC ○ ×
400mW MMF 105um 14-Pin FC √ √
800mW MMF 50um Coaxial FC × ×
800mW MMF 50um 9-Pin FC √ √
1W MMF 105um 9-Pin FC √ √
1.8W MMF 200um Coaxial FC × ×
1.8W MMF 200um 9-Pin FC √ √
650nm 30-150mW MMF 105um Coaxial FC √ ×
30-100mW MMF 105um 8-Pin FC √ √
100/150mW MMF 105um 8-Pin FC ○ √
800mw MMF 105um 4-Pin FC ○ ×
800mw MMF 105um 9-Pin FC √ √

Fiber coupled laser diodes are now widely used in laser radar, test and measurement, medicine, material processing and optical communications.
Multi-package form of single-mode/multi-mode fiber output can be used: 2-Pin/4-Pin/8-Pin/9-Pin/14-Pin/Coaxial/HHL-01/P4/P5.

Main product wavelengths: 405nm, 445nm, 488nm, 505nm, 520nm, 525nm, 635nm, 658nm, 680nm, 785nm, 808nm, 830nm, 850nm, 860nm, 880nm, 915nm, 940nm, 980nm, 1064nm, 1210nm,1280nm,1310nm, 1330nm, 1450nm, 1470nm, 1490nm, 1530nm, 1550nm, 1720nm, 1900nm, 1920nm.
Laser Color: UV, Blue-violet, Blue, Green, Orange-red,Red, and Infrared light.

High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type

High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type
