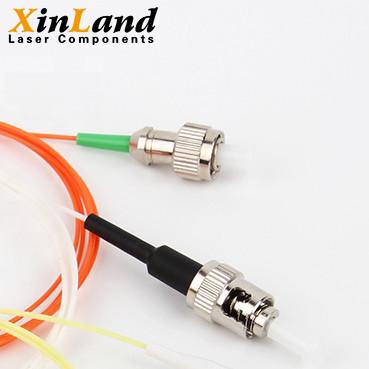

445nm-1064nm Coaxial Package Fiber Laser Diode Wavelength Optional SMF-28
445nm-1064nm Coaxial Package Fiber Laser Diode Wavelength Optional SMF-28
445nm-1064nm Coaxial Package Fiber Laser Diode Wavelength Optional SMF-28
445nm-1064nm Coaxial Package Fiber Laser Diode Wavelength Optional SMF-28
445nm-1064nm Coaxial Package Fiber Laser Diode Wavelength Optional SMF-28
445nm-1064nm Coaxial Package Fiber Laser Diode Wavelength Optional SMF-28
Specifications
Brand Name :
XINLAND
Model Number :
XLP-445~XLX-1064 Multi Mode Fiber Coupled Laser Diode
Certification :
CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
100pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Dozen/Dozens per Day
Delivery Time :
7 days
Packaging Details :
1pcs/polybag,10pcs/inner box,100pcs/ctn
Place of Origin: :
Xi'an Shaanxi
Wavelength :
445nm-1064nm
Fiber Type :
MMF
Fiber Core :
9um
Package Type: :
Coaxial
Connector :
FC
Description

High Quality 445nm-1064nm Coaxial Package Fiber Laser Diode Wavelength Optional SMF-28 Strong Fiber Laserske Diode

Product Details​:

Type: Fiber Coupled Laser Diode

Wavelength: 445nm-1064nm

Fiber Type: MMF

Fiber Core: 9um

Package Type: Coaxial

Connector: FC

Product Specifications:

Wavelength Output power Fiber Type Fiber Core Package Connector PD TEC
445nm 50mW SMF-28 9um Coaxial FC/SMA × ×
488nm 20mW SMF-28 9um Coaxial FC/SMA × ×
505nm 20mW SMF-28 9um Coaxial FC/SMA × ×
520nm 30mW SMF-28 9um Coaxial FC/SMA √ ×
635nm 50/80/100mW SMF-28 9um Coaxial FC/SMA × ×
650nm 20-100mW SMF-28 9um Coaxial FC/SMA × ×
670nm 5mW SMF-28 9um Coaxial FC/SMA √ ×
685nm 15mW SMF-28 9um Coaxial FC/SMA √ ×
785nm 10/30mW SMF-28 9um Coaxial FC/SMA √ ×
808nm 30mW SMF-28 9um Coaxial FC/SMA √ ×
830nm 50/100mW SMF-28 9um Coaxial FC/SMA √ ×
850nm 20/50mW SMF-28 9um Coaxial FC/SMA √ ×
880nm 2mW SMF-28 9um Coaxial FC/SMA √ ×
905nm 2/30mW SMF-28 9um Coaxial FC/SMA √ ×
940nm 50mW SMF-28 9um Coaxial FC/SMA √ ×
980nm 10/15/25mW SMF-28 9um Coaxial FC/SMA √ ×
1064nm 10-50mW SMF-28 9um Coaxial FC/SMA √ ×

Note before purchase:
Choose the right fiber length according to your own requirements. The default product does not have a driver board, so if you need a driver board, please contact customer service in advance.
Multimode & Single mode:
1.The core size of single mode fiber is mostly 3-9μm, wide transmission band frequency, large capacity, small modal dispersion,long transmission distance.
2.Most of the multimode fiber cores are 105 μm,The transmission distance is small,the mode dispersion is large, and the generated light is dispersive.

OPERATING NOTES
◆Avoid eye and skin exposure to direct radiation during operation.
◆ Do not bend the fiber wire excessively to avoid the core breaking.
◆When the optical fiber module is not in use, please install the dust cover at the optical fiber connector.
◆Do not place heavy objects on the optical fiber, and do not pull the optical fiber excessively to avoid damage to the optical fiber.
