445nm 105um UV Mini Laser Diode Multi Mode FC Connector For Laser Diode Module
445nm 105um UV Mini Laser Diode Multi Mode FC Connector For Laser Diode Module
445nm 105um UV Mini Laser Diode Multi Mode FC Connector For Laser Diode Module
445nm 105um UV Mini Laser Diode Multi Mode FC Connector For Laser Diode Module
445nm 105um UV Mini Laser Diode Multi Mode FC Connector For Laser Diode Module
445nm 105um UV Mini Laser Diode Multi Mode FC Connector For Laser Diode Module
445nm 105um UV Mini Laser Diode Multi Mode FC Connector For Laser Diode Module
445nm 105um UV Mini Laser Diode Multi Mode FC Connector For Laser Diode Module
Specifications
Brand Name :
XINLAND
Model Number :
XLP-445 Multi Mode Fiber Coupled Laser Diode
Certification :
CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
100pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Dozen/Dozens per Day
Delivery Time :
7 days
Packaging Details :
1pcs/polybag,10pcs/inner box,100pcs/ctn
Place of Origin: :
Xi'an Shaanxi
Wavelength :
445nm
Fiber Type :
MMF
Fiber Core :
UV 105um
Package Type: :
Coaxial/8-Pin/14-Pin/HHL-01
Connector :
FC
Description

445nm 105um UV Laser Diode Multi Mode Fiber Coupled Laser Diode FC Connector For Laser Diode Module

Product Details​:

Model Number: XLP-445

Type: Fiber Coupled Laser Diode

Wavelength: 445nm

Fiber Type: MMF

Fiber Core: UV 105um

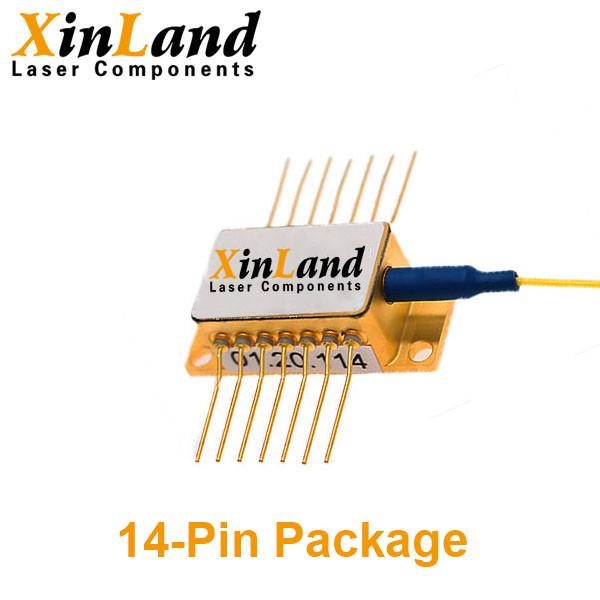

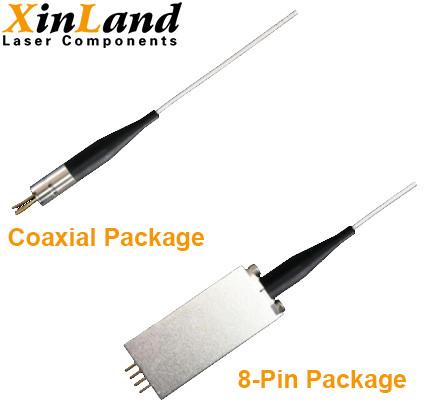

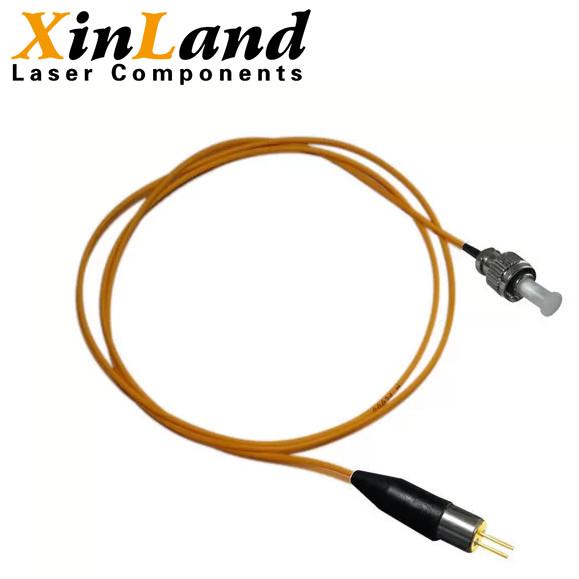

Package Type: Coaxial/8-Pin/14-Pin/HHL-01

Connector: FC

Product Specifications:

Wavelength Part Number Output Power Fiber Type Fiber Core Package Connector PD TEC
445nm XLP-445-050m-M 50mW MMF UV 105um Coaxial FC × ×
XLX-445-050m-M-H8-T 50mW MMF UV 105um 8-Pin FC ○ √
XLX-445-050m-M-H8-T-PD 50mW MMF UV 105um 8-Pin FC √ √
XLP-445-080m-M 80mW MMF UV 105um Coaxial FC × ×
XLX-445-080m-M-H8-T 80mW MMF UV 105um 8-Pin FC ○ √
XLP-445-800m-M 800mW MMF UV 105um Coaxial FC × ×
XLX-445-800m-M-H14-T-PD 800mW MMF UV 105um 14-Pin FC √ √
XLP-445-001-M 1W MMF UV 105um Coaxial FC × ×
XLX-445-001-M-H-T 1W MMF UV 105um HHL-01 FC ○ √

445nm 105um UV Mini Laser Diode Multi Mode FC Connector For Laser Diode Module

Fiber coupled laser diodes are now widely used in laser radar, test and measurement, medicine, material processing and optical communications.
Multi-package form of single-mode/multi-mode fiber output can be used: 2-Pin/4-Pin/8-Pin/9-Pin/14-Pin/Coaxial/HHL-01/P4/P5.

445nm 105um UV Mini Laser Diode Multi Mode FC Connector For Laser Diode Module
