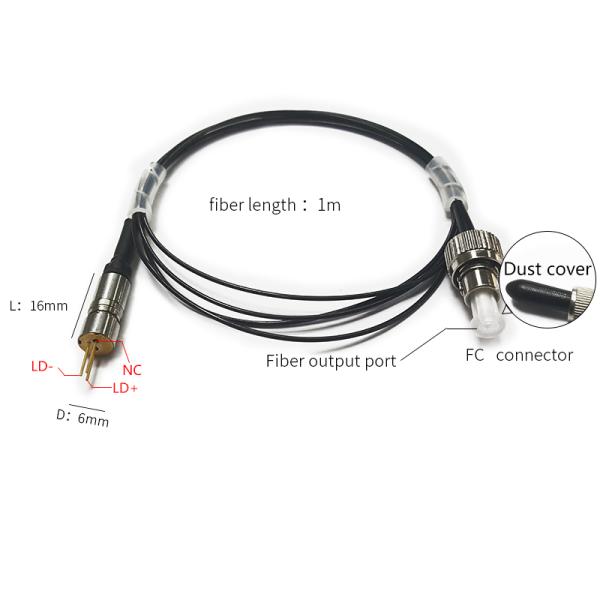

635nm-1064nm 9um Red/Infrared Non-visible Laser Fiber Coupled Laser Diode without TEC Coaxial Package
635nm-1064nm 9um Red/Infrared Non-visible Laser Fiber Coupled Laser Diode without TEC Coaxial Package
635nm-1064nm 9um Red/Infrared Non-visible Laser Fiber Coupled Laser Diode without TEC Coaxial Package
635nm-1064nm 9um Red/Infrared Non-visible Laser Fiber Coupled Laser Diode without TEC Coaxial Package
Specifications
Brand Name :
XINLAND
Model Number :
XLP-635~XLP-1064 Single Mode Fiber Coupled Laser Diode
Certification :
CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
100pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Dozen/Dozens per Day
Delivery Time :
7 days
Packaging Details :
1pcs/polybag,10pcs/inner box,100pcs/ctn
Place of Origin: :
Xi'an Shaanxi
Wavelength :
635nm-1064nm
Fiber Type :
SMF-28
Fiber Core :
9um
Package Type: :
Coaxial
Connector :
FC/SMA
Description

635nm-1064nm 9um Red/Infrared Non-visible Laser Fiber Coupled Laser Diode without TEC Coaxial Package
Product Details​:

Model Number: XLP-635~XLP-1064

Type: Fiber Coupled Laser Diode

Wavelength: 635nm,650nm without PD,670-1064nm with PD

Fiber Type: SMF-28

Fiber Core: 9um

Package Type: Coaxial

Connector: FC/SMA
Product Specifications:

WavelengthPart NumberOutput PowerFiber TypeFiber CorePackageConnectorPDTEC
635nmXLP-635-050m-950mWSMF-289umCoaxialFC/SMA××
XLP-635-080m-980mWSMF-289umCoaxialFC/SMA××
XLP-635-100m-9100mWSMF-289umCoaxialFC/SMA××
650nmXLP-650-020m-920mWSMF-289umCoaxialFC/SMA××
XLP-650-040m-940mWSMF-289umCoaxialFC/SMA××
XLP-650-050m-950mWSMF-289umCoaxialFC/SMA××
XLP-650-080m-980mWSMF-289umCoaxialFC/SMA××
XLP-650-100m-9100mWSMF-289umCoaxialFC/SMA××
670nmXLP-670-005m-9-PD5mWSMF-289umCoaxialFC/SMA√×
685nmXLP-685-015m-9-PD15mWSMF-289umCoaxialFC/SMA√×
785nmXLP-785-010m-9-PD10mWSMF-289umCoaxialFC/SMA√×
XLP-785-030m-9-PD30mWSMF-289umCoaxialFC/SMA√×
808nmXLP-808-030m-9-PD30mWSMF-289umCoaxialFC/SMA√×
830nmXLP-830-050m-9-PD50mWSMF-289umCoaxialFC/SMA√×
XLP-830-100m-9-PD100mWSMF-289umCoaxialFC/SMA√×
850nmXLP-850-020m-9-PD20mWSMF-289umCoaxialFC/SMA√×
XLP-850-050m-9-PD50mWSMF-289umCoaxialFC/SMA√×
880nmXLP-880-002m-9-PD2mWSMF-289umCoaxialFC/SMA√×
905nmXLP-905-002m-9-PD2mWSMF-289umCoaxialFC/SMA√×
XLP-905-030m-9-PD30mWSMF-289umCoaxialFC/SMA√×
940nmXLP-940-050m-9-PD50mWSMF-289umCoaxialFC/SMA√×
980nmXLP-980-010m-9-PD10mWSMF-289umCoaxialFC/SMA√×
XLP-980-015m-9-PD15mWSMF-289umCoaxialFC/SMA√×
XLP-980-020m-9-PD20mWSMF-289umCoaxialFC/SMA√×
1064nmXLP-1064-010m-9-PD10mWSMF-289umCoaxialFC/SMA√×
XLP-1064-015m-9-PD15mWSMF-289umCoaxialFC/SMA√×
XLP-1064-020m-9-PD20mWSMF-289umCoaxialFC/SMA√×
XLP-1064-050m-9-PD50mWSMF-289umCoaxialFC/SMA√×

Note before purchase:
Choose the right fiber length according to your own requirements. The default product does not have a driver board, so if you need a driver board, please contact customer service in advance.
Multimode & Single mode:
1.The core size of single mode fiber is mostly 3-9μm, wide transmission band frequency, large capacity, small modal dispersion,long transmission distance.
2.Most of the multimode fiber cores are 105 μm,The transmission distance is small,the mode dispersion is large, and the generated light is dispersive.ications.
