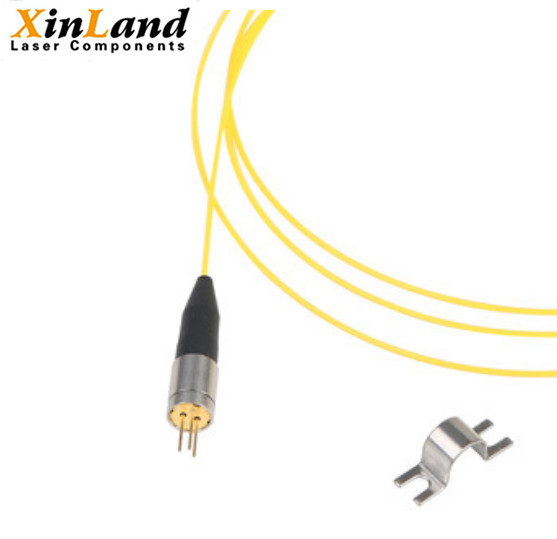

505nm 20mW/520nm 30mW Fiber Coupled Laser Diode Coaxial Package 520nm with PD
505nm 20mW/520nm 30mW Fiber Coupled Laser Diode Coaxial Package 520nm with PD
Specifications
Brand Name :
XINLAND
Model Number :
XLP-505/XLP-520 Single Mode Fiber Coupled Laser Diode
Certification :
CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
100pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Dozen/Dozens per Day
Delivery Time :
7 days
Packaging Details :
1pcs/polybag,10pcs/inner box,100pcs/ctn
Place of Origin: :
Xi'an Shaanxi
Wavelength :
505nm/520nm
Fiber Type :
SMF-28
Fiber Core :
9um
Package Type: :
Coaxial
Connector :
FC/SMA
Description

505nm 20mW/520nm 30mW Fiber Coupled Laser Diode Coaxial Package 520nm with PD
Product Details​:

Model Number: XLP-505-020m-9/XLP-520-030m-9-PD

Type: Fiber Coupled Laser Diode

Wavelength: 505nm, 520nm with PD

Fiber Type: SMF-28

Fiber Core: 9um

Package Type: Coaxial

Connector: FC/SMA

Product Specifications:

Wavelength Part Number Output Power Fiber Type Fiber Core Package Connector PD TEC
505nm XLP-505-020m-9 20mW SMF-28 9um Coaxial FC/SMA × ×
520nm XLP-520-030m-9-PD 30mW SMF-28 9um Coaxial FC/SMA √ ×

During the use of the Fiber Coupled Laser Diode, ensure that the die is not contaminated and prevent mechanical damage.
The optical fiber cannot be bent at a large angle, and the bending diameter should be greater than 300 times the diameter of the optical fiber.
Fiber coupled laser diodes are now widely used in laser radar, test and measurement, medicine, material processing and optical communications.
