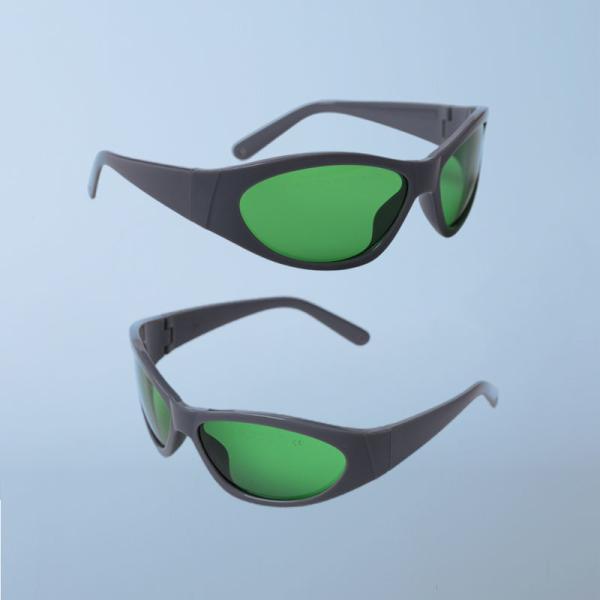

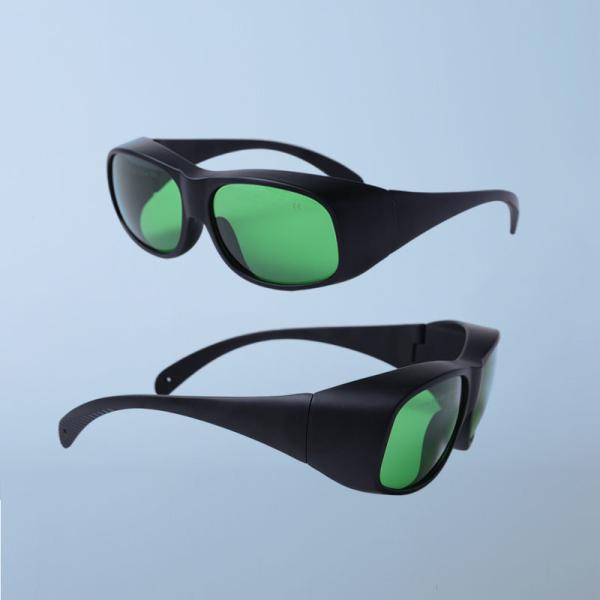

808nm 980nm OD2 Red Laser Safety Glasses For Diodes Lasers
808nm 980nm OD2 Red Laser Safety Glasses For Diodes Lasers
808nm 980nm OD2 Red Laser Safety Glasses For Diodes Lasers
808nm 980nm OD2 Red Laser Safety Glasses For Diodes Lasers
808nm 980nm OD2 Red Laser Safety Glasses For Diodes Lasers
808nm 980nm OD2 Red Laser Safety Glasses For Diodes Lasers
808nm 980nm OD2 Red Laser Safety Glasses For Diodes Lasers
808nm 980nm OD2 Red Laser Safety Glasses For Diodes Lasers
Specifications
Brand Name :
LaserPair
Model Number :
RTD-3
Certification :
CE EN207
Place of Origin :
Shenzhen, China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union , PayPal
Supply Ability :
100000pcs/per year
Delivery Time :
3 working days after payment
Packaging Details :
1PC/Leather Box, 50PCS/CTN CTN SIZE: 46*36*33CM
Protect Wavelength :
630-660nm & 800-1100nm
Transmittance :
35%
OD Value :
OD2+@630-660nm OD5+@800-1100nm
Material :
Polycarbonate
Packing List :
1PC/Leather Box, 50PCS/CTN CTN Size:46*36*33cm
Samples :
Available
H.S. Code :
9004909000
Origin :
Shenzhen, China
Description

808nm 980nm OD2 Red Laser Safety Glasses For Diodes Lasers

Typical For 635nm&808nm&980nm Laser Safety Glasses For Red Laser, Diodes Lasers.

RTD-3 laser safety glasses are mainly protect the laser wavelength: 630-660nm(OD5+) & 800-1100nm(OD5+). The laser safety glasses can not be use against other kind of lasers rather than the above mentioned wavelength. LaserPair recommends that you wear laser safety glasses when the laser class is greater than Class 1. Choose different laser safety glasses according to different laser wavelengths and working environments.

Product Description:

Model No.: RTD-3 Protect Wavelength: 630-660nm & 800-1100nm
Transmittance: 35% OD Value: OD2+@630-660nm & OD5+@800-1100nm
Material: Polycarbonate Suit for: 635nm, 660nm, 808nm, 980nm etc.,
L-Rating: 630-660nm DIR LB2& 800-1100nm DIR LB5 Application: Red Laser, 808nm 980nm Diodes

Advantage:

1. High Protection Level

2. OD Value based on real parameters.

3. Flank with unique ventilation and protection system, protect eyes from splashing all-round.

4. 4 vent valves indirect ventilation design prevents lenses from fogging.

Related Products:

Our factory laser safety glasses strictly according to ANSI Z136 and EN207.
IPL safety glasses and patient eyewear strictly according to EN169.

Normal Type Typical For Transmittance O.D L-Rating
GTY 532&1064nm 30% 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5
RTD-3 635&808nm&980nm 35% 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5
RTD-4 635&905nm&980nm 37% 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5
ADY 755&808&1064nm 40% 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7
DTY 980&1064&1320nm 40% 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3
YHP High Power 808&980&1064nm 60% 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7
CHP 10600nm 90% 9000-11000nm O.D 6+ 9000-11000nm DI LB3
IPL 200 – 1400nm 10% IPL Machine
YLW 1064nm Laser Window 40% 800 -1100nm O.D 4+ & 1064nm O.D 6+ 1064nm DIR LB5

How can I find suitable laser safety glasses?

1. Choose a comfortable frame

Selecting a frame in terms of its weight, shape, and size to meet your individual needs is extremely important. We consider the user's individual needs and provide comfortable eyewear with a fashionable design that can be worn for a long stretch of time. There is four frames style for your selection as above, Frame 33/36/52/55.

2. VLT (Visible Light Transmittance)

In visible light, the attenuation of light by a filter is defined as visible light transmittance. According to ANSI Z136.7, the testing of VLT is determined by a standard light source. If VLT is less than 20%, users should remain in a light area and ensure their working environment has extra illumination. The higher the transmittance, the better the visual view.

3. Choose the relevant wavelength

The laser safety glasses cannot be used against other wavelengths of lasers other than those mentioned. For more details, please consult with the manufacturer for the most suitable glasses.

4. Choose a high OD protection level

OD laser filters were designed to reduce specific wavelengths into the eyes while allowing some normal light to pass through the eye. This absorption or filtering capability of the lens is expressed via OD, which is the attenuation of light through the optical filter.

Rating Transmittance Light transmittance reduction
OD 1 10-1 10x
OD 2 10-2 100x
OD 3 10-3 1000x
OD 4 10-4 10,000x
OD 5 10-5 100,000x
OD 6 10-6 1,000,000x
OD 7 10-7 10,000,000x
OD 8 10-8 100,000,000x
