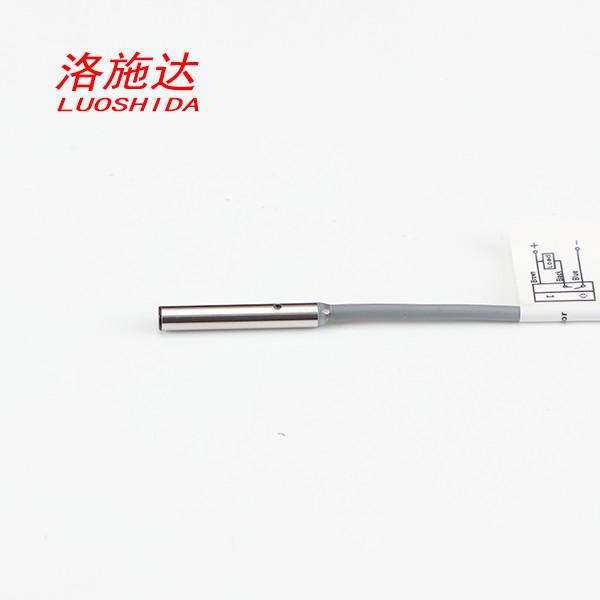

Tiny Namur Inductive Proximity Sensor Switch D4 Smooth Stainless Steel With Cable Type
Tiny Namur Inductive Proximity Sensor Switch D4 Smooth Stainless Steel With Cable Type
Specifications
Brand Name :
Luoshida
Model Number :
I1S04*NA
Certification :
CE ROHS
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
3000PCS per month
Delivery Time :
5-8 work days
Packaging Details :
Normal standard:individual package with labels and outside is normal brown box.
Product name :
Namur proximity sensor
Size :
D4*25mm
Voltage :
6-12VDC
Mounting :
flush
Distance :
0.8mm or 1.0mm
Output :
NC
Description

D4 Smooth Stainless Steel Tiny Namur Inductive Proximity Sensor Switch With Cable Type

Product description :


Series : D4 NAMUR Proximity Sensor
Size : D4*25mm
Housing Material : Stailess steel
Mounting : shielded
Sensing Distance Sn(mm) : 0.8mm/1mm
Operating Voltage : DC 6-12V
Output function : NC
connection : 2M PVC cable

Specification of the sensor :

DC D4 NAMUR Proximity Sensor
Size D4*0.5*25mm
Mounting shielded
Distance Sn(mm) 0.8mm/1mm
Housing Material Stainless steel
With or Without LED Without LED
Operating Voltage 6-12VDC
Ripple -
No Load Current >2.2mA(OFF)< 1.1mA(ON)
Switching Frequency 1.5KHz
Response Time 0.1ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy 3%(Sr)
Protection Category IP67
Operating Temperature -25°C - +70°C
Temperature Drift 10%(Sr)
Short Circuit Protection -
Overload Trip Point -
The time of Delay start <10ms
EMC RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face PA66
Connection D2.5 2*0.14 PVC 2M
NAMUR I1S04*NA

FAQ :

Q1 , What about the samples?

A: For some standard items, we have stocks, samples can be offered free of charge, but we can not cover the shipping cost.

Q2, What is the MOQ?

A: Small quantity is also acceptable, 5pcs or 10pcs are ok for us.

Q3, How about the delivery time?

A: For some items we have stocks, that can be shipped out at any time. Some items no stocks need 5-7days to produce. And the detail delivery time depend on the quantity of the items.

Q4, How about the after-sales service?

A: when you receive the sensor, the quantity and items are different from the order, please contact urgently, and we will deal with you at any time. For other questions, we will also offer you a satisfied solution.

Q5, How about the packing?

A: Our normal standard package is individual package with our logo labels, outside is normal brown carton. And for mass production, we can also offer the OEM and ODM service.
