CCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking Machine
CCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking Machine
CCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking Machine
CCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking Machine
Specifications
Brand Name :
Sea radium laser
Model Number :
HL-FW-10-50W
Certification :
CE,CCC
Place of Origin :
Shenzhen, China
MOQ :
1unit
Price :
negotiable
Supply Ability :
1500 units per month
Delivery Time :
5-8 working days
Packaging Details :
Packed with strong wooden cases
Wave length :
1064nm
Power regulation range :
10% ~ 100%
Repetition rate :
20(KHz)~80(KHz)
Marking depth :
0.01 mm to 0.2 mm
Marking speed :
≤12000(mm/s)
Marking format :
Graphics, text, bar code, two-dimensional code, automatic marking date, shift, batch number, serial number, document link
Operating system :
Windows XP Chinese operation interface, support PLC, PCX, DXF, BMF and other file formats, direct use of SHXTTF font library
Marking range :
Square 50mm~300mm optional
Cooling mode :
Air cooling
Product size :
550cm*900cm*1200cm
Power source :
100V to 240V, single-phase, 500W
other service :
Support customization
Description

wholesale CCD visual Fiber Laser Marking Machine Precise positioning marking machineCCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking Machine
Characteristics of CCD Fiber Laser Marking Machine:

The fiber laser marking machine adopts an integrated overall structure, featuring no optical pollution, no power coupling loss, and air cooling. It possesses performances such as high efficiency, long lifespan, and low maintenance requirements that other lasers do not have. The fiber laser marking machine has numerous distinctive advantages in application. Unlike traditional solid-state lasers that utilize crystal rods as the laser medium, fiber lasers employ a very long ytterbium-doped double-clad optical fiber as the medium and are pumped by high-power multi-mode laser diodes.


CCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking MachineCCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking Machine

Product advantages:
1. The efficiency of fiber laser marking machine is very high and it is very energy-saving.
2. The marking speed of fiber laser is fast and the mark can be formed in one go.
3. The service life of the equipment is long and it can work continuously for 24 hours.
4. Fiber laser marking machine is mainly used in fields where the requirements for depth, smoothness, and fineness are high.
5. Fiber laser marking can produce various words, symbols, and patterns, and the marking made by fiber laser is permanent.
6. CCD vision system and pipeline operating platform can automatically position marking, making marking more accurate and more efficient.
Technical parameter:

Product name Fiber laser marking machine
Wave length 1064nm
Power regulation range 10% ~ 100%
Repetition rate 20(KHz)~80(KHz)
Output beam quality 1.4 m2 ~ 1.8 m2
Angle of divergence 0.3 mrda
Electro-optical conversion rate 30%
Marking mode Disable or move marking
Marking depth 0.01 mm to 0.2 mm
The smallest gathering spot The 0.01 mm
Minimum character The 0.15 mm
repeatability The 0.002 mm
Marking speed ≤12000(mm/s)
Marking format Graphics, text, bar code, two-dimensional code, automatic marking date, shift, batch number, serial number, document link
Marking character type Vector and bitmap graphics, text
Operating system Windows XP Chinese operation interface, support PLC, PCX, DXF, BMF and other file formats, direct use of SHXTTF font library
Marking range Square 50mm~300mm optional
Cooling mode Air cooling
Product size 550cm*900cm*1200cm
Power source 100V to 240V, single-phase, 500W


Application Fields:
1, ink and paint: mobile phone battery labels, panels, mobile phone keys, small daily necessities and other fiber laser marking.
2, ceramic, EP material laser marking: electronic component packaging, IC and other fiber marking.
3, plastic products: electrical shell, electronic products and other product serial number, LOGO and other fiber laser marking.
4, metal and surface: stainless steel, copper, aluminum and oxidation, phosphating, electroplating, often used in hardware, daily necessities, electrical housing, mobile phone housing and other laser marking.
5, keyboard and keys: keyboard, keys and other fine fiber laser marking.

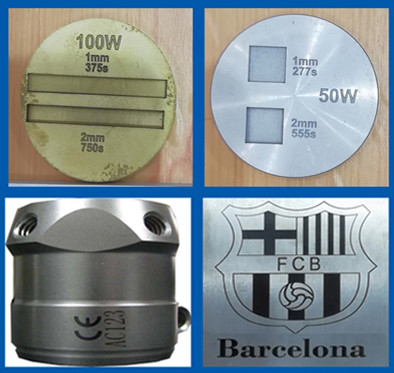

Sample Display(Parts)
CCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking Machine
CCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking MachineCCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking MachineCCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking Machine
Profession and Honor
CCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking MachineCCD Visual Fiber Laser Marker 20KHz-80KHz Precise Positioning Fiber Marking Machine
About this product,we also support customized services,If you would like to know further product information and requirements, please contact us online or send E-mail to us.Thank you for your time!
