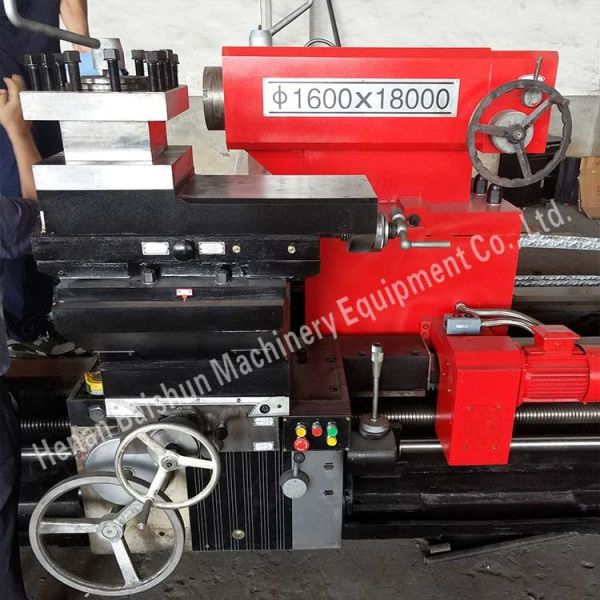

Large Diameter Horizontal Lathe Machine Parallel Mechanical Torno Iron Pipe Threading Machine Lathes For Metal
Large Diameter Horizontal Lathe Machine Parallel Mechanical Torno Iron Pipe Threading Machine Lathes For Metal
Large Diameter Horizontal Lathe Machine Parallel Mechanical Torno Iron Pipe Threading Machine Lathes For Metal
Large Diameter Horizontal Lathe Machine Parallel Mechanical Torno Iron Pipe Threading Machine Lathes For Metal
Large Diameter Horizontal Lathe Machine Parallel Mechanical Torno Iron Pipe Threading Machine Lathes For Metal
Large Diameter Horizontal Lathe Machine Parallel Mechanical Torno Iron Pipe Threading Machine Lathes For Metal
Specifications
Brand Name :
BAISHUN
Model Number :
CW61160B
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
20 Set/Sets per Month
Delivery Time :
50 working days
Packaging Details :
Export standard wooden case package or Negotiation with customers
Product name :
Parallel Mechanical Torno Iron Pipe Threading Machine Lathes for Metal Large Diameter Horizontal Lathe Machine
Modle :
CW61160B
Swing Diameter Over Bed :
1600 mm
Spindle Motor Power(Kw) :
22kw
Range of Spindle Speed(r.p.m) :
2 - 200 r.p.m
Spindle Bore(mm) :
130mm
Width of Bed (mm) :
755mm
Max.Weight of Workpiece :
6000kg
Description

Parallel Mechanical Torno Iron Pipe Threading Machine Lathes for Metal Large Diameter Horizontal Lathe Machine

Product Introduction:

Heavy duty lathes, its weight of 10~30 tons belong to large machine tools, 30~100 tons belong to heavy machine tools, and more than 100 tons belong to super heavy machine tools. Lathe machine is a machine tool that mainly uses turning tools to turn rotating workpieces. Lathe is the most important cutting machine tool in metal cutting machine tools, and the largest number of lathes in general machine manufacturing factories, also known as working machines. On the lathe, drills, reamers, reamers, taps, teeth and knurling tools can also be used for corresponding processing.

CW61160 Series Lathe Machine( 16 tons load capacity):
Swing over bed: 1600mm;
Swing over cross slide: 1200mm;
Processing length: it's up to customer's requirements;
Bed width: 1100mm;
Load capacity: 16 tons;
Spindle bore: 130mm;
Main motor power: 22kw.


Large Diameter Horizontal Lathe Machine Parallel Mechanical Torno Iron Pipe Threading Machine Lathes For Metal

Specification:

Technical items
Model		 CW6163
/
CW6263		 CW6180Q
/
CW6280Q		 CW6180B
/
CW6280B		 CW61110Q /
CW62110Q		 CW61125Q
/
CW62125Q		 CW61125B CW61160B CW61160 CW61200 CW61250
Swing diameter over bed 630mm 800mm 800mm 1100mm 1250mm 1250mm 1600mm 1600mm 2000mm 2500mm
Swing diameter over carriage/cross slide 350mm 480mm 480mm 800mm 920mm 860mm 1200mm 1200mm 1600mm 2100mm
Swing diameter over gap/saddle CW6163-
No gap		 CW6180Q-
No gap		 CW6180B-
No gap		 CW61110Q--
No gap		 CW61125Q--No gap
No gap
CW6263-
800mm		 CW6280Q-
1000mm		 CW6280B-
1000mm		 CW62110Q--
1300mm		 CW62125Q--1500mm
Max. Length of workpiece 1500mm; 2000mm; 3000mm;4000mm; 5000mm; 6000mm; 8000mm; 10000mm; 12000mm; 14000mm; 16000mm; 18000mm; 20000mm
Max.weight of workpiece 2 tons 2 tons 2.5 tons 2.5 tons 2.5 tons 6 tons 6 tons 16 tons 16 tons 16 tons
Spindle hole diameter 105mm 105mm 105mm 105mm 105mm 130mm 130mm 130mm 130mm 130mm
Guide rail width 550mm 550mm 600mm 600mm 600mm 755mm 755mm 1100mm 1100mm 1100mm
Main motor power 11 kw 11 kw 11 kw 11 kw 11 kw 22 kw 22 kw 22 kw 22 kw 22 kw


Large Diameter Horizontal Lathe Machine Parallel Mechanical Torno Iron Pipe Threading Machine Lathes For Metal

Product Application (lathe machine):

This lathe machine is primarily designed for precision turning of round cylindrical, conical, and other rotating parts. It can handle various commonly used metric, inch, module, and diametral pitch threads, as well as perform broaching, oil groove cutting, and keyway machining.

We are a direct-sale lathe machine manufacturer, not a trading company, which means we can offer you the best prices.
Welcome get in touch with us Whatsapp:+86 18003851898
