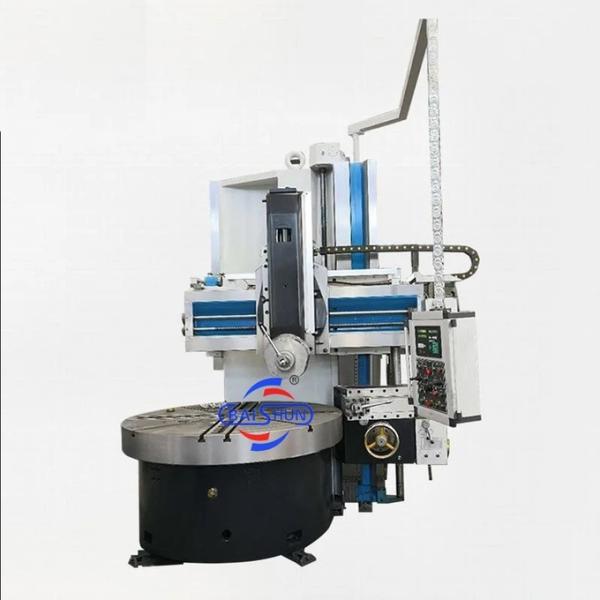

Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
Specifications
Place of Origin :
Henan, China
Brand Name :
BAISHUN
Model Number :
C5112
Certification :
Provided
Packaging Details :
Export standard package or negotiation with customer
Supply Ability :
50 Set/Sets per Month
Price :
Negotiation
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
35 work days
Product name :
C5112 High Efficient Vertical Lathe Machine
Max. height of Workpiece (mm) :
1000
Machining Capacity :
Medium Duty
Max. Turned Length (mm) :
1200 mm
Type :
VERTICAL
Spindle Motor Power(kW) :
22
Dimension(L*W*H) :
2350*2350 *2700mm
Weight (KG) :
10400 KG
Warranty :
1 Year
Automatic Grade :
Conventional
Description

Single Column Conventional C5112 High Efficient Vertical Lathe Machine

The Single column model C5112 are super rigid machines with big machining capacities, stable and rigid structure and high machining efficiency. The machine is equipped with one vertical tool head and can be equipped with high precision digital readout system (DRO). AC inverter motor is used to achieve speed change. Gears are made of 40 Cr steel and precision ground for high precision and low machine noise. The machines are designed and built to meet modern machining requirements of high speed cutting tools and carbide cutters on work pieces of ferrous, non-ferrous, composite and other materials.

1. Machine tool: The main components of the machine tool (lathe bed, base, workbench, beam, vertical slide rest, side tool box, feed box, main drive gear box) are made of strong cast iron using resin sand technology.

2. Main drive: The workbench rotation is powered by the main electric motor, with a gear reduction and an electromagnetic speed control system for adjusting the speed.

3. Vertical slide and feed mechanism of the vertical slide: The RAM is made of HT250 material, known for its excellent mechanical properties.

4. Workbench base structure: The workbench adopts a long spindle structure, supported by high-precision double row cylindrical roller bearings for radial alignment.

5. Beam: The beam is secured and released using a drift, with hydraulic pressure for clamping.

6. Hydraulic system: The hydraulic system uses reliable control components from renowned manufacturers, both domestic and international.

7. Lubrication of the machine tool: The machine tool automatically provides oil at specified intervals to lubricate the beam and moving parts.

8. Machine tool protection: The machine tool's moving parts are equipped with a comprehensive security chain and interlock system.

9. Electrical control system:

a) Power source: Three-phase current of 380V±10%, 50Hz.

b) The electrical design of the machine tool follows international design standards.

Machine Specification

Model

C518

C5112

C5116

C5120

C5125

Max.turning dia.(mm)

800

1200

1600

2000

2500

Max.cutting height(mm)

800

1000

1000

1250

1250

Max.loading weight(tons)

1.2

3.2

5

8

10

Worktable diameter(mm)

720

1000

1400

1800

2250

Worktable speed range(r/min)

30-260

6.3-200

5-160

3.2-100

2-63

Max worktable torque(n.m)

1000

25000

32000

32000

35000

vertical travel of vertical tool post(mm)

650

650

800

800

1200

horizontal travel of vertical post(mm)

570

700

915

1200

1400

G.W(tons)

7

8

12.4

17

23

Dimension(L*W*Hmm)

2080*2621

*3515

2360*2280

*2800

2830*2670

*3010

3200*2800

*3250

3300*4000

*3500

Machine picture

Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient

Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient
