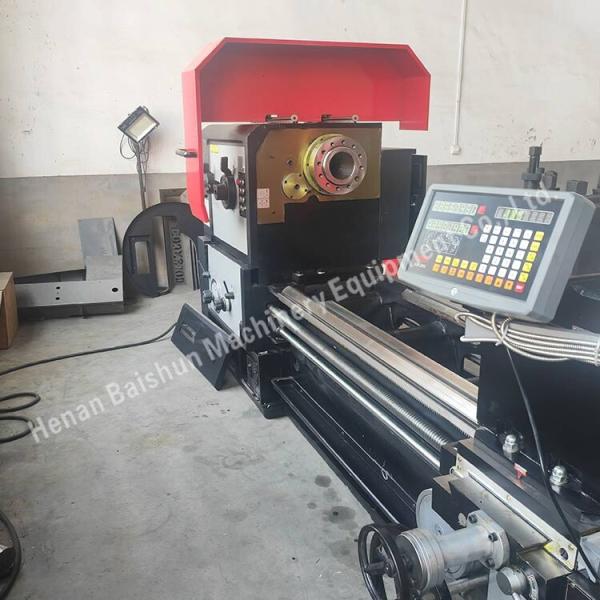

CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
Specifications
Place of Origin :
Henan, China
Brand Name :
BAISHUN
Model Number :
CW61125
Supply Ability :
10 Set/Sets per Month
Price :
Negotiation
Certification :
ISO
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
70 work days
Packaging Details :
Export standard wooden case package or Negotiation with customers
Max. Length of Workpiece (mm) :
10000 mm
Machining Capacity :
Heavy Duty
Spindle Bore(mm) :
130 m'm
Width of bed (mm) :
755
Max. Turned Length (mm) :
9000 mm
Type :
Horizontal
Spindle Motor Power(kW) :
22
Voltage :
380v/220v/415v
Dimension(L*W*H) :
6000 X 1860 X 1825mm
Weight (KG) :
15100 KG
Power(W) :
22 kw
Max. Swing Diameter :
1250mm
Weight :
12000kg
Spindle speed :
315rpm
Description
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine

The conventional heavy-duty horizontal lathe, it suitable for high speed steel hard alloy cutting tool, various materials shaft parts, cylindrical and disk-shaped parts processing. To achieve turning cylindrical, face grooving, cutting slot, cutting off, boring and turning inside and outside the cone and other processes.
china cheap lathe main transmission for DC motor drive, the spindle speed is stepless speed regulation. So in the processing of different step and the work piece, it can obtain the reasonable cutting speed.
feed system for the separation of transmission, use of SCR infinitely variable speed, wide variable speed range, under different processing conditions, it is able to choose the most reasonable feed amount, Machine tool guide ways after the processing of high frequency quenching and grinding process, it can improve the surface hardness and precision of machine tool, also have long service life.

Product Features
1. Precision ground and hardened bed ways, long life and low noise.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.

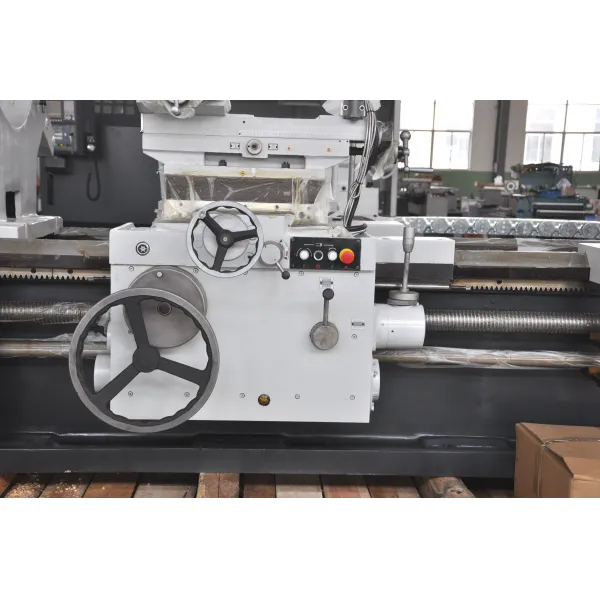

3. Rapid feed structure is available on apron.
4. Clutch in headstock makes the lathe start smoothly and brake quickly.
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
Technical items
Model		 CW6163
/
CW6263		 CW6180Q
/
CW6280Q		 CW6180B
/
CW6280B		 CW61110Q /
CW62110Q		 CW61125Q
/
CW62125Q		 CW61125B CW61160B CW61160 CW61200 CW61250
Swing diameter over bed 630mm 800mm 800mm 1100mm 1250mm 1250mm 1600mm 1600mm 2000mm 2500mm
Swing diameter over carriage/cross slide 350mm 480mm 480mm 800mm 920mm 860mm 1200mm 1200mm 1600mm 2100mm
Swing diameter over gap/saddle CW6163-
No gap		 CW6180Q-
No gap		 CW6180B-
No gap		 CW61110Q--
No gap		 CW61125Q--No gap
No gap
CW6263-
800mm		 CW6280Q-
1000mm		 CW6280B-
1000mm		 CW62110Q--
1300mm		 CW62125Q--1500mm
Max. Length of workpiece 1500mm; 2000mm; 3000mm;4000mm; 5000mm; 6000mm; 8000mm; 10000mm; 12000mm; 14000mm; 16000mm; 18000mm; 20000mm
Max. Weight of workpiece 2 tons 2 tons 2.5 tons 2.5 tons 2.5 tons 6 tons 6 tons 16 tons 16 tons 16 tons
Spindle hole diameter 105mm 105mm 105mm 105mm 105mm 130mm 130mm 130mm 130mm 130mm
Guide rail width 550mm 550mm 600mm 600mm 600mm 755mm 755mm 1100mm 1100mm 1100mm
Main motor power 11 kw 11 kw 11 kw 11 kw 11 kw 22 kw 22 kw 22 kw 22 kw 22 kw
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe MachineCW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe MachineCW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
CW61125 Big Bore Heavy Duty Turning Lathe Machine Price Horizontal Lathe Machine
