Hydraulic Gear Shaving Machines Cutter Metal Cutting Lathe
Hydraulic Gear Shaving Machines Cutter Metal Cutting Lathe
Hydraulic Gear Shaving Machines Cutter Metal Cutting Lathe
Hydraulic Gear Shaving Machines Cutter Metal Cutting Lathe
Hydraulic Gear Shaving Machines Cutter Metal Cutting Lathe
Hydraulic Gear Shaving Machines Cutter Metal Cutting Lathe
Hydraulic Gear Shaving Machines Cutter Metal Cutting Lathe
Hydraulic Gear Shaving Machines Cutter Metal Cutting Lathe
Hydraulic Gear Shaving Machines Cutter Metal Cutting Lathe
Hydraulic Gear Shaving Machines Cutter Metal Cutting Lathe
Hydraulic Gear Shaving Machines Cutter Metal Cutting Lathe
Hydraulic Gear Shaving Machines Cutter Metal Cutting Lathe
Specifications
Place of Origin :
Henan, China
Brand Name :
BAISHUN
Certification :
ISO9001:2008
Packaging Details :
Export standard wooden case package or Negotiation with customers
Supply Ability :
50 Set/Sets per Month
Price :
Negotiation
Model Number :
Y3150
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
55 work days
CNC or Not :
Normal
Condition :
New
Type :
Gear Hobbing Machine
Voltage :
380V/50Hz
Dimension(L*W*H) :
2440 x 1370 x 1800
Warranty :
1 Year, 12 Months
Key Selling Points :
Multifunctional
Applicable Industries :
Manufacturing Plant
After-sales Service Provided :
Online support, Video technical support, Engineers available to service machinery overseas
Name :
gear hobbing machine
Max work piece diameter :
500mm
Max. module :
8mm
Max machining width :
250mm
Motor power :
6.45KW
Color :
Custmized
Weight :
4500KG
Power :
6.45KW
Port :
Shanghai, Qingdao, Tianjin Port, China
Description

Hydraulick Gear Shaving Machines Metal Cutting Lathe Gear Hobbing Machine

Product Description

High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.
Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.
Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.

Model Y3150 Y3180
Max.diameter of machining spur gears with external support 350mm 550m
Max. diameter of machining spur gears without external support 500mm 800mm
Dia. of worktable 520mm 650mm
Max. cutting module 8mm 10mm
Max. Processing width 250mm 300mm
Min.number of teeth processed 6 8
Max.vertical travel of tool seat 300mm 350mm
Min.turning angle 240° 240°
Max.tool loading dimensions(Dia.*L) 160*160mm 180*180mm
Dia. Of hob mandrel 22/27/32mm 22/27/32/40mm
Max. diameter of hob 160mm 180mm
Diameter of table hole 80mm 80mm
Hob spindle speed step 12 steps 12 steps
Hob spindle speed scope 50-275rpm 40-200rpm
Vertical feed range of the hob per revolution of the workpiece 0.24-4.25mm/r 0.4-4mm/r
Main motor power 4.75kw 5.5kw
Main motor speed 1430rpm 1500rpm
Machine weight 4500kg 5500kg
Machine tool dimensions (L*W*H) 2440*1370*1800mm 2752*1490*1870mm

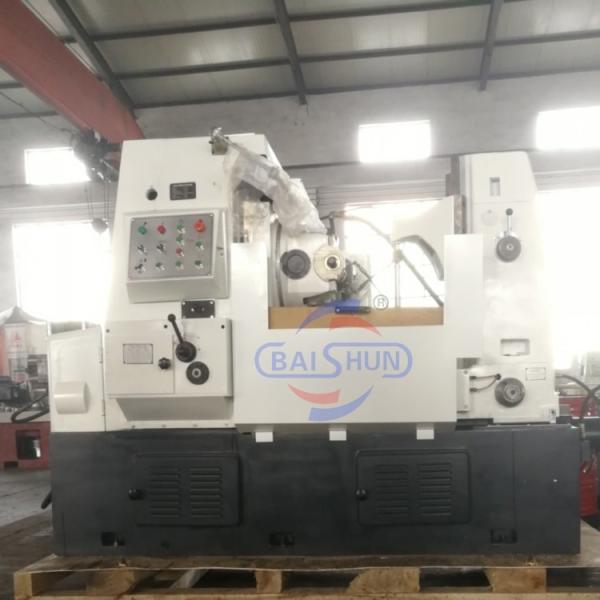

Product photos for your reference:

Hydraulic Gear Shaving Machines Cutter Metal Cutting LatheHydraulic Gear Shaving Machines Cutter Metal Cutting Lathe

Our Services

1. 24 Hours after sales service by E-mail or Phone.

2. 100% response rate.

3. Engineers available to service overseas.

4. OEM service is available

5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.
