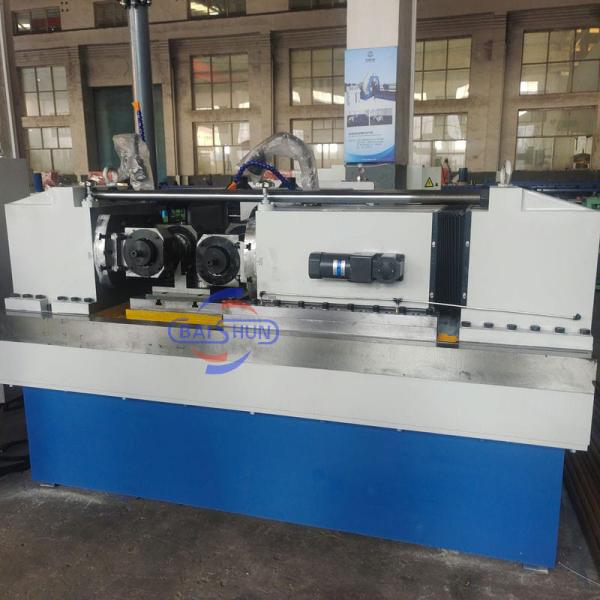

Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine
Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine
Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine
Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine
Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine
Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine
Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine
Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine
Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine
Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine
Specifications
Brand Name :
BAISHUN
Model Number :
Z28-615
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
USD22000-35000/SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50SETS/Month
Delivery Time :
within 20 days
Packaging Details :
export standard wooden case
Product name :
Rebar Metal Thread Rolling Machine
Type :
Z28-615
Roller diameter :
20-125mm
Thread range :
0.5-15mm
Inner diameter of roller wheel :
100mm
Roller die :
Customized
Power :
22kw
Color :
Blue and Gray
Delivery :
Fast delivery
Description

Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine

Description:

The thread rolling machine is a multifunctional cold extrusion forming machine tool. The thread rolling machine can perform thread, straight and diagonal rolling on the workpiece in the cold state within its rolling force range; straight tooth, helical tooth and helical spline gear Rolling; straightening, diameter reduction, roller burnishing and various forming rolling. The machine has a safe and reliable electro-hydraulic execution and control system, which allows each working cycle to be selected among three modes: manual, semi-automatic and automatic.

The thread rolling machine is a machine tool that forms threads on a workpiece through pressure. It mainly achieves thread, straight thread, oblique thread and other processing by rolling the workpiece in a cold state

Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine

Technical Specification:

Model Z28-615
Roller Diameter(mm) 20-125
Thread range(mm) 0.5-15
Inner dia.of roller wheel(mm) 100
Width of wheel(mm) 50-200
Dia.of roller wheel 220-280
Max.feeding force(kn) 1000
Rotation speed of two main axis(r/m) Stepless
Hydraulic cease time regulation scope(s) 0.1-99.9
Main motor(kw) 22
Hydraulic motor(kw) 7.5
Machine size(mm) 2650x2650x1700
Machine weight(kg) 8200

More Details:

Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine

Z28-650 High Performance Tube Threading Rebar Metal Thread Rolling MachineZ28-650 High Performance Tube Threading Rebar Metal Thread Rolling MachineZ28-650 High Performance Tube Threading Rebar Metal Thread Rolling MachineZ28-650 High Performance Tube Threading Rebar Metal Thread Rolling Machine
