Specifications
Brand Name :
BAISHUN MACHINERY
Model Number :
TK6913
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 Set/Sets per Month
Delivery Time :
4 month
Packaging Details :
1. Outside we will pack the product with plastic to prevent wet. 2. Outside of the machine will be packed by strong wooden pallet. 3. If there requirement of the package, we can customized based on the detail requirement.
Product name :
loor Type Milling And Boring Machine With Direct Sale Price
Type :
TK6913
Spindle bore :
130mm
RAM Size :
380X420
Table loading capacity :
10000kg-40000kg
Function :
Boring and milling
Max. spindle speed :
1500rpm(Op:3000)
Color :
Customization
Description

New Condition Cnc Floor Type Milling And Boring Machine With Direct Sale Price

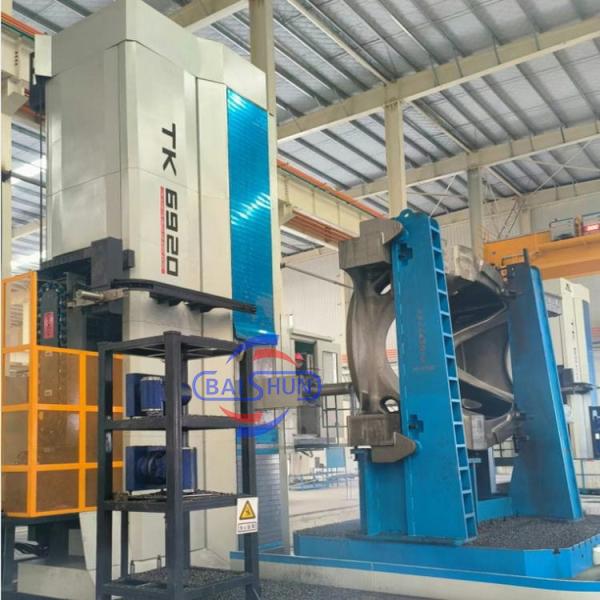

TK69 CNC floor boring and milling machine is developed with advanced mechanical, electrical and hydraulic integration new technology. Compared with CNC heavy machine tools, it has a wide machining range, complete CNC functions, high precision and production efficiency. The machine tool is equipped with SINUMERIK ONE CNC system and AC digital servo drive system, which has powerful data packets and low failure rate, and its performance is very stable. It can realize multi-axis linkage, function compensation, data communication and exchange, analog display, various fixed machining cycles, tool management, etc. Use circumferential milling of milling cutter to realize boring of large holes, etc.; Circumference, frame shape, polar coordinate distribution and other characteristic hole processing, etc. This machine tool can complete drilling, reaming, boring and other hole processes, groove cutting, and flat and curved surface milling processes in one clamping. It can perform angle milling, U-turn boring and multi-faceted processing on work pieces installed on the rotary worktable, using the continuous indexing function of the CNC rotary worktable. It can continuously process spatial continuous curved surfaces (such as impellers), which expands the application scope of the process and shortens the auxiliary time; Select tool libraries with different capacities to realize multi-process compound automatic machining with one clamping; The closed-loop feedback system equipped with coordinate axes can also process process content with higher accuracy. In addition to the above functions, this machine tool can also perform thread processing, rigid tapping and other functions.

New Condition Cnc Floor Type Milling And Boring Machine 10000kg-40000kg Load

New Condition Cnc Floor Type Milling And Boring Machine 10000kg-40000kg Load

TK69 CNC Floor type boring and milling lathe machine:

Item Unit TK6913 TK6916 TK6920 TK6926
Spindle diameter mm 130 160 200 260
Spindle taper ISO 50 50 60 60
Max. spindle speed rpm 1500(Op:3000) 1200(Op:2000) 1000(Op:2000) 1000O(op:1500)
Motor power-Servo KW 30 55 75 110
Total travel of boring spindle and ram mm 1500 2400 2400 3200
Size of ram section mm 380*420 480*520 480*520 620*740
Travel of column -X axis mm 4000(op:5-15m) 6000(op:7-20m) 6000(op:7-20m) 8000(op:9-20m)
Vertical travel of spindle head-Y axis mm 2000(op: 3m) 3000(op: 4m, 5m) 3000(op: 4m, 5m) 3000(op: 4m, 5m)
Longitude travel of cloumn-Z axis mm 700 1200 1200 1600
Axial travel of boring spindle-W axis mm 800 1200 1200 1600
B axis totation degree ° 360
Tool magazine pcs 40/60 40/60 40/60 40/60
Worktable size mm 1200*1400, 1400*1600, 1600*1800, 1800*2000, 2000*2500, 2500*3000, 3000*3500, 3500*4000, 4000*4500, 4500*5000(can be customized)
CNC System SIEMENS / FANUC (can supply based on customers' requirement)

TK68 CNC Planer type boring and milling machine:

Item Unit TK6813 TK6816
Spindle diameter mm 130 160
Spindle taper ISO 50 ISO 50
Max. spindle speed rpm 2-1500 2-1000
Motor power-Servo KW 22/30 30/40
Table loading capacity Kg 10000-40000 20000-60000
Table size mm 1400*1600 1600*1800
1800*2000 2000*2500		 1400*1600 1600*1800
1800*2000 2000*2500 2500*3000
Cross travel of table -X axis mm 3000(op: 4m, 5m) 4000(op: 4m,5m)
Vertical travel of spindle head stock-Y axis mm 2000(op: 3m, 4m) 2000(op: 3m, 4m)
Longitude travel of spindle-Z axis mm 700 1000
Travel of column-V axis mm 1600 2000
Table rotary indexing-B axis ° 360 360
Travel speed of table X mm/min 0.5-6000 0.5-6000
Tool magazine pcs 40/60 40/60
TK65 CNC Planer type boring and milling machine:
Item Unit TK6511 TK6513 TK6516
Spindle diameter mm 110 130 160
Spindle taper ISO 50 ISO 50 ISO 50
Max. spindle speed rpm 10-2000 2-2000 2-1500
Motor power-Servo KW 17/22.5 22/30 30/40
Table loading capacity Kg 6000 10000 20000
Table size mm 1200*1400
1400*1600		 1400*1600
1600*1800		 1400*1600
1600*1800
1800*2000
Cross travel of table -X axis mm 2000(op: 3m, 4m) 2000(op: 4m, 5m) 2500(op: 4m,5m)
Vertical travel of spindle head stock-Y axis mm 1500(op: 2m, 3m) 2000(op: 3m, 4m) 2000(op: 3m, 4m)
Longitude travel of spindle-Z axis mm 600 800 1000
Travel of column-V axis mm 1200 1600 1600
Table rotary indexing-B axis ° 360 360 360
Travel speed of table X mm/min 5000 0.5-6000 0.5-6000
Tool magazine pcs 40/60 40/60 40/60
TK61 CNC Table type Horizontal boring and milling lathe machine:
Item Unit TK6111 TK6113
Table size mm 1250*1400 1400*1600
Spindle diameter mm 110 130
X Travel mm 1800-2000 1800-2000
Y Travel mm 1200-1600 1200-1600
Z Travel mm 1200-1600 1200-2000
W Travel mm 600 800
T Slot mm(W*Distance) 22*125 22*125
Max.loading capacity KG 5000 8000
Max.boring dia. mm 240/250 300
Rapid moving speed Mm/min 3000 3000
CNC System mm SIEMENS / FANUC
Positioning accuracy(X/Y/Z axis) mm 0.03/0.03/0.03 0.03/0.03/0.03
Machine size mm 6300*3900*3700 6500*4200*3900
Machine weight KG 25000 32000

Henan Baishun Machinery Equipment Co., Ltd is a leading expert in manufacturing top-of-the-line CNC floor-type, planer-type, and gantry-type boring-milling machines. Our advanced machinery serves industries worldwide, including nuclear power, wind energy, hydropower, and forging and pressing equipment, among others.

Dedicated to excellence, we leverage our industry expertise and resources to specialize in the development and innovation of boring machines. Our commitment to research and development has positioned us as leaders in designing, developing, and manufacturing CNC and digital readout boring machines. We proudly hold ISO9001 quality certification and European quality standards, ensuring that our products meet the highest international benchmarks.

Experience the precision and reliability of Henan Baishun’s machinery, where cutting-edge technology meets unparalleled expertise.
