High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine
Specifications
Brand Name :
SMTCL
Model Number :
VMC 850Q
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
45-60 days
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing

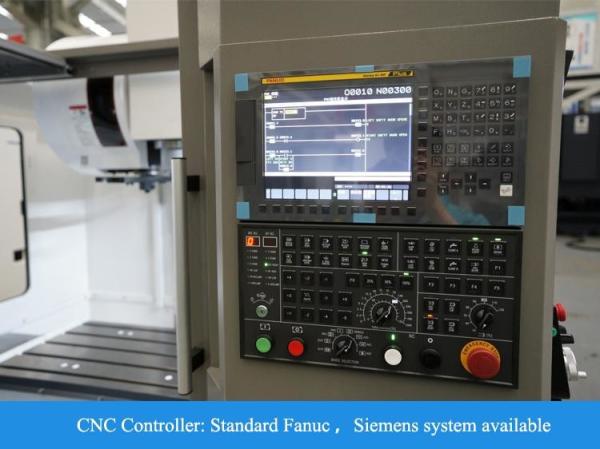

CNC Control System :
GSK SIEMENS FANUC
X Axis travel :
850mm
Y Axis travel :
500mm
Z Axis travel :
540mm
X/Y/Z axis rapid speed :
48/48/48 m/min
Spindle speed :
10000rpm
Spindle taper shank :
BT40
Main motor power :
7.5/11KW
Certification :
ISO CE
Max. Table Load(kg) :
600 kg
Description

High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine

Product Description
VMC850Q Vertical Machining Center
This new generation VMC850Q vertical machining center adopts vertical frame layout, cross slide structure, high rigid herring column, inverted trapezoidal spindle box, low center of gravity, high rigid bed, three axis roller guide rail, to ensure the machine good running accuracy, high strength and excellent precision stability; The machine structure is simple and compact, the floor area is small, is conducive to the assembly of automatic line; Can be milling surface, drilling, boring, reaming, 2D and 3D surface processing, tapping and other processes of the integration of high-precision machining. Simple operation, high speed and high efficiency, intelligent and stable.
Product Features

1, High rigidity and high stability design ♦ High strength integral casting bed ♦ Three-axis P-class roller guide ♦ Long span herringbone column

2,Good accuracy and accuracy retention ♦ C3 pre-drawn lead screw ♦ Thermal symmetry technology ♦ Error compensation technology
3,Safety, environmental protection, efficient productivity ♦ Three-axis fast shift 48m/min ♦ Direct spindle 12000 RPM ♦ Bed double spiral chip extractor
Product Details
A Lead screw: pre-drawn The three-axis lead screw adopts the installation method of fixed two ends, and with 40 large diameter high precision ball screw, the best speed response and positioning accuracy can be obtained by pre-stretching treatment.
B Guide rail: roller Roller linear guide rail is selected for three axes to increase bearing capacity and enhance the overall rigidity and reliability of the machine tool. Linear guide has small vibration at high speed and no crawling at low speed to ensure machining accuracy.
C Spindle: 10000 RPM 10000 RPM high speed spindle, bearing imported P4 special bearings, with high precision, high rigidity; The main shaft has passed the dynamic balance correction test before leaving the factory.
D Headstock: high rigidity High rigidity structure spindle box design, improve the cutting resistance of the machine tool and effectively reduce the vibration of the spindle, to ensure the machining accuracy and surface finish of the parts.
E Pillar: herringbone type Classic "human" type structure, solid and stable, effectively maintain the processing stability and load-bearing capacity at high speed displacement.
F Bed: large incline Large tilt Angle bed, effectively promote the removal of debris. The interior of the bed adopts box-type structure design, which is strong and reliable,
effectively improving the rigidity and stability of the product.

High Precision Vertical Machining Center VMC850Q CNC Milling Drilling Boring Machine

Product Paramenters
Item
Unit
Specifications
Capacity
X axis travel
mm
850
Y axis travel
mm
500
Z axis travel
mm
540
Spindle nose to table surface
mm
120-660
Spindle nose to column surface
mm
640
Worktable
Table size (L×W)
mm
1000×500
Max load on the table
kg
600
T-slot size
mm
18×5
Spindle
Spindle speed
rpm
10000
Spindle taper/spindle shank
mm
7/24 taper
BT40
Spindle motor
kw
7.5/11
Maximum output torque
N.m
35.8/70
Spindle drive type
Synchronous tooth belt
Feed rate
X,Y,Z rapid traverse
M/min
48/48/48
Max cutting feed rate
M/min
20
A.T.C
Tool storage capacity
pc
Arm type 24
Max tool diameter
mm
150(80)
Max tool length
mm
250
Tool change time(T-T)
sec
2.5
Accuracy
Positioning accuracy X/Y/Z
mm
0.008/0.006/0.006
Repeatability positioning X/Y/Z
mm
0.005/0.004/0.004
Others
Overall dimensions(L×WxH)
mm
2400×3125×2840
Net machine weight
kg
5100
Total power requirment
KVA
18
Industry application

Why Choose Us
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993

◆ High-tech manufacturer with research anddesign capacity

◆ Stable and mature supplying system

◆ Young active sales and engineers for instant services(24 hours online)

◆ Upgrading on mechanism according to ergonomics and easy maintenance

◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level. SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory
Partners
Exhibition
Our Certifications
International Market
Packaging & Delivery
FAQ
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight

Welcome to contact us to get one-on-one service and exclusive benefits for this month!
