SMTCL Horizontal Turning Center HTC30Hm Horizontal 12-station Power Turret CNC Turning Lathe Machine

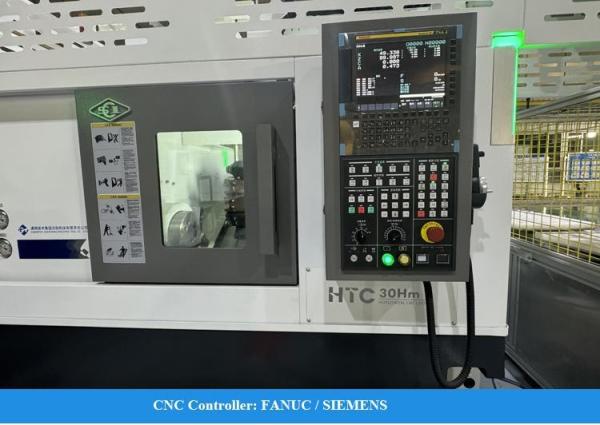

Product Description:

Horizontal CNC Turning Center HTC30Hm BMT55 12-station Power Turret Servo Tailstock Turning Center With Y Axis
HTC30Hm turning center of Shenyang Machine Tool adopts an integral inclined bed structure and is equipped with a spindle with a large span and high rigidity, showing excellent cutting performance. Its lead screw pre-tensioning structure is scientific,ensuring high machining accuracy and good stability. It can carry out various turning and integrated processing on shaft and disc parts. It is applicable to industries such as automobiles and bearings. Moreover, its automatic single-machine processing unit can improve production efficiency and save labor costs.

Product Features:

1,High Efficiency

◆ High-efficiency servo power tool holder
◆ Split servo tailstock
◆ High rapid movement speed of two axes
◆ Optional Y-axis configuration to achieve multi
sequence integrated processing

2,High Precision
◆ High-precision pre-stretched screw
◆ Error compensation technology
◆ Quantification of process standards
◆ Strict inspection standards
3,High Rigidity
◆ Machine bed and other key castings made of high -quality cast iron
◆ Large span spindle unit
◆ Arc-shaped anti-bending saddle
◆ Small spindle structure tailstock

Product Details:

Rapid moving speed: 30m/min
The servo motor is directly connected to the ball screw through a coupling, reducing intermediate links and achieving gapless transmission. The X and Z-axis guide rails adopt imported linear rollingguide rails to ensure high rigidity, good dynamic performance and accuracy, increase operating speed and improve production efficiency.

Split Servo Tailstock

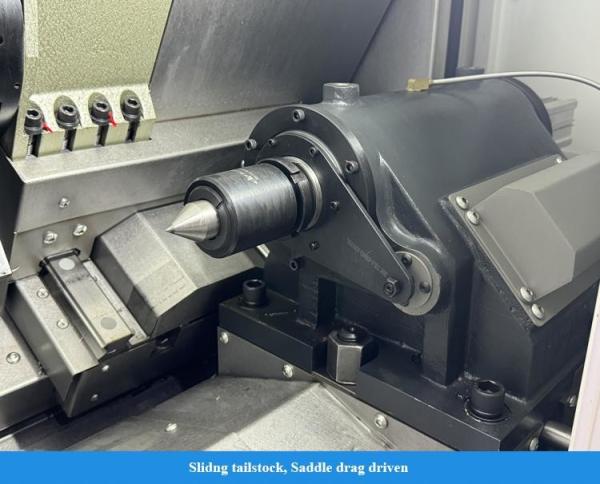

The tailstock can be moved in an optional servodriven manner, which can precisely control and flexibly adjust the tailstock moving speed and working clamping force according to processing requirements, allowing the tailstock to quickly approach the workpiece and tighten without impact , and can provide real-time feedback on the tightening position.improve production
replacement efficiency. It adopts an upper and lower split tailstock ,easy to adjustment accuracy and improve maintenance efficiency.
Double fixed pre-tensioned structure
X axis develops a double fixed support structure and uses a pre-stretched screw to effectively offset pre-stretch deformation and temperature risedeformation. It cooperates with a special sealing structure to reduce the temperature rise of the screw, thereby achieving high precision and high precision of machine tool feed stability
Y axis configuration
Optional Y-axis configuration, combinedwith BMT powered turret, high-precision C -axis structure and a variety of poweredtool holders, can realize complex surface processing with once installation.
High precision ball screw
It uses high-quality imported C3-grade screw and H-grade guide rail, and is directly driven by servo motor to achieve excellent operating accuracy.
Anti-bending saddle
The guide rail span is reasonably enlarged,the motion system structure is optimized,and the main body of the bed saddle isdesigned in an arc shape to ensure theoverall rigidity of important components.
Efficient servo powered turret
Standard BMT interface, high rigidityconnection; the tool is driven by DIN1809 interface, which has reliable transmission and low failure rate;the drive motor is side-mounted and compact in structure; it is equipped with high-precision C axis and brake device to achieve high-efficiency integrated processing of turning, milling anddrilling.
Internal cooling tool holder
Optional internal cooling tool holder and water outlet from the tool center realize efficient chip removal during inner hole machining and ensure processing quality
Driven tool milling capability
Workpiece material: HT200
Tool model: Ф20 square shoulder
milling cutter
Cooling status: water cooling
Driven tool drilling capacity
Workpiece material: HT200
Tool model: Ф16 twist drill
Cooling status: water cooling

SMTCL Horizontal Turning Center HTC30Hm Horizontal 12-station Power Turret CNC Turning Lathe Machine

Product Paramenters:
Project
Unit
HTC 30Hm
Max. cutting dia.
mm
Φ250
Max.cutting length
mm
450
Max. swiming dia.over bed
mm
Φ420
Max. swiming dia.on slide
mm
Φ280
Spindle
Spindle nose model
A2-6
Front bearing inner dia.
mm
100
Spindle taper and hole size
1:20;Φ70
Dia. of spindle hole
Φ65
Max.bar dia.
mm
Φ50
Standard chuck dia.
inch
8
Spindle speed range
r/min
4500
Rated spindle torque
N·m
110(769r/min)
Spindle Max. torque
N·m
180(576r/min)
Main motor output power continuous/15 min.
kW
9/11
X/Z axis
X/Z axis rapid movement
m/min
30
X axis travel
mm
140
Z axis travel
mm
500
Tailstock
Tailstock travel
mm
500
Tailstock drive method
Saddle drag
Tailstock sleeve travel mm 100
Tailstock sleeve dia. mm Φ100
Tailstock taper hole taper Morse MT-5
Turret
Turret typle
Horizontal 12-station power turret
Center height
mm
100
Turret indexing repeat positioning accuracy
Sec.
±1.6
Tool size
mm
25
If could choose tool nearby
yes
Power tool holder interface
BMT45
Max. drilling capacity
mm
14×0.15
Max. milling capacity
mm
12×8×45
Max. tapping capacity
mm
M10×1.5
Others
Distance between spindle center and floor
mm
926
Machine tool net weight
kg
3500
Overall dimensions(LxWxH)
mm
2295×1680×1650
Note: The parameters provided in the table are for reference only. If there is any change, please refer to the actual product.

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
