Specifications
Brand Name :
SMTCL
Model Number :
V6
Certification :
CE ISO certification
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, L/C,, Western Union
Supply Ability :
50 sets per month
Delivery Time :
45-60 days
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
CNC or Not :
CNC
Key word :
Vertical CNC Lathe
Spindle nose type :
A2-11
Output power of main motor :
22/30KW
Maximum swing diameter over bed :
Φ800 /Φ1000 mm
Maximum cutting height :
600/900mm
Description

Product Description:

V6 Series High Precision vertical CNC Lathe
CNC vertical lathe is a machine tool for machining workpieces, which is characterized by a spindle perpendicular to the work surface. It uses a numerical control system to control the movement of the tool to achieve accurate machining operation. CNC vertical lathe is usually composed of machine tool body, workbench, spindle, tool holder, CNC system and so on. The machine body is usually composed of a bed, column and beam, providing stable support and rigidity. The workbench is a platform for holding workpieces and can be lifted and rotated as needed. The spindle is the shaft used to install the tool, and the speed and feed speed can be controlled by the CNC system. The tool holder is a part used to fix the tool, which can realize the feed and rewind of the tool. Numerical control system is the core part of controlling the whole lathe operation, which can control the moving track and machining parameters of the tool through the program. CNC vertical lathe has the advantages of high precision, high efficiency and strong flexibility. It can perform a variety of machining operations, such as turning, milling, drilling, etc. Through the programming of numerical control system, the machining of complex shapes can be realized, and the machining precision and production efficiency can be improved. CNC vertical lathes are widely used in aerospace, automobile manufacturing, mold processing and other fields.

Product Features:

22 / 30KW V6 Vertical CNC Lathe Heavy Duty 3 Axis Vertical CNC Milling Machine

A,Nitrogen balance

Independentnitrogenbalancemechanismprovides assurance of Z-axis fastmotion and features environmentalprotectionandenergy-saving
B,Compact structure
The structureofmainunitiscompactand foorarea isreduced
C,High-speed two axes
Machiningefciencyisefectivelyenhanced
D,lntegral spindle
High-rigidity spindleensuressmoother cutting,anddouble-labyrinthwaterproofstructureensures reliabilityofspindle
E,Large chip discharge angle
chipdischargeangle is enlargedtoensure smooth chipdischarge
F,lntegralbe
Bed isanalyzed and optimized to enhancethe rigidityofmachinetool.
Product Details:
V6 Series CNC vertical lathe
Box structure featuring excellent shocke-absorbing performance and larger machining space are suitable for machining of automotivecomponents such as brake hub, wheel hub and reducer housing, elevator wheel, engineering chain wheel, vawve and motor housing, etc.The product can also be used for soft/hard machining of bearing and is able to realize replacement of grinding by turning.The machinetool is convenient for installation of various special fixtures, and can be used for machining of components of complicated housings andcomponents of abnormal shape.
Product Paramenters:
Item
Unit
V6i
V6C
V6S
Machining capacity
Maximum swing diameter over bed
mm
Φ800
Φ860
Φ1000
Maximum cutting height
mm
740
700
800
Maximum cutting diameter
mm
Φ600
Φ800
Φ900
Spindle
Spindle nose type
A2-11
A2-11
A2-15
Spindle speed range
r/min
50-2000
50-1500
50-800
Output power of main motor
KW
22/30
22/30
37/55
Maximum output torque of spindle
Nm
1244
1244
2000
Chuck diameter
inch
21‘’
21‘’
24‘’
Feeding
X-axis rapid traverse speed
m/min
20
16
10
Z-axis rapid traverse speed
r/min
20
16
12
Travel
x-axis travel
mm
340
440
800
Z-axis travel
mm
740
720
850

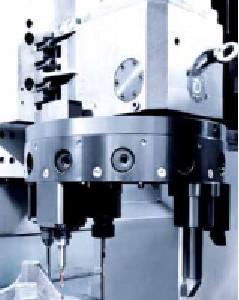

Tool post
Tool post type
Horizontal 8-position
Horizontal 8-position
Horizontal 8-position
Tool size
32*32/Φ50
32*32/Φ50
32*32/Φ50
Accuracy
Machining accuracy
IT6
IT6-IT7
IT6-IT7
Surace roughness of workpiece machined
Ra1.6
Ra1.6
Ra1.6
Positioning accuracy
X-axis
mm
0.008
0.008
0.018
Z-axis
mm
0.010
0.010
0.020
Positioning repeatability
X-axis
mm
0.006
0.006
0.0075
Z-axis
mm
0.006
0.006
0.015
Maximum load capacity
Disks (including chuck and fixture}
kg
500
600
800
Machine weight
Main unit
kg
9000
10500
15000
Overall dimension
L×W×H
mm
2030*2737*3188
3400*2200*3300
3940*2795*3671

Industry application:

22 / 30KW V6 Vertical CNC Lathe Heavy Duty 3 Axis Vertical CNC Milling Machine

OUR Service:

1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
22 / 30KW V6 Vertical CNC Lathe Heavy Duty 3 Axis Vertical CNC Milling Machine
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
22 / 30KW V6 Vertical CNC Lathe Heavy Duty 3 Axis Vertical CNC Milling Machine
Exhibition:

22 / 30KW V6 Vertical CNC Lathe Heavy Duty 3 Axis Vertical CNC Milling Machine

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
