TPX6111B Horizontal Boring Milling Machine Digital Readout For Stainless Steel Iron Drilling
TPX6111B Horizontal Boring Milling Machine Digital Readout For Stainless Steel Iron Drilling
Specifications
Model Number :
TPX6111B
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
100 Set/Sets per Year
Delivery Time :
30-40days
Packaging Details :
Package suitable for long distance sea freight
Max. spindle diameter :
110mm
X/Y/Z-Axis travel :
900/900/1400mm
Motor Power :
7.5KW
Max.spindle torque :
1225 N.m
Spindle speed range :
8-1000 r/min
Facing head diameter :
600mm
Worktable size :
1100mmX960mm
Worktable Max.Load :
5000 Kg
Description

TPX6111B Horizontal Boring And Milling Machine With Digital Readout Device for stainless steel and iron drilling

Machine Parameters

item Uni't TPX6111B TPX6111B/1 TPX6111B/2
Spindle diameter mm φ110
Taper of spindle bore Mohs 6#(Special provision
7:24,50#)
Maximum Torsional Torque of Spindle N.m 1225
Spindle can withstand maximum axial resistance N 12250
Spindle speed series 22
Spindle speed range rpm 8-1000
Main motor power KW 7.5
Maximum Torque of Horizontal Disc Nm 1960
Diameter of Horizontal Disc mm Φ600
Rotating speed series of flat spinning disc 18
Rotating speed range of flat spinning disc rpm 4-200
Workbench size (long x wide) mm 1100×960 1100×960 1250×1100
Workbench can bear maximum weight kg 5000 5000 5000
Specification of T-groove mm 22
Number of T-grooves 7
X-Axis Travel mm 900 1250 1600
Y-Axis Travel mm 900 900 1200
Z-Axis Travel mm 1400(No post)
W-Axis Travel (Boring Bar Expansion) mm 600
U-Axis Travel (Flat Wheel Slider Travel) mm 180
B-axis rotation angle 360
Fast Feed Speed (X/Y/Z/W) mm/min 2500
Spindle per turn, spindle box, worktable vertical and horizontal feed range

Spindle

at 8-400 r/min

 mm 0.04-6
Spindle at 500-1000 r/min mm 0.01-1.88
Reading Accuracy of Linear Measurement System (X/Y/Z) (User Selection for Z-axis Measurement) mm 0.005

Reading Accuracy of B-axis

Angle Measuring System (User Selection)

 0.001
Processing area Maximum Boring Diameter of Spindle mm

The borehole diameter is

between 50 and 240 mm.

(original position of boring tool tip

to spindle <=450mm)
Processing range of flat disc mm Maximum Boring Diameter of Horizontal Rotary Disc (600mm)
Maximum turning diameter of flat disc
Machine Tool Outward Size (Long x Width x High) mm

4910x2454

x2750

4910x2870

x2750

5120x3380

x3100
Machine tool weight (about) kg 11500 13000 14000
Total capacity of machine tools KVA 19

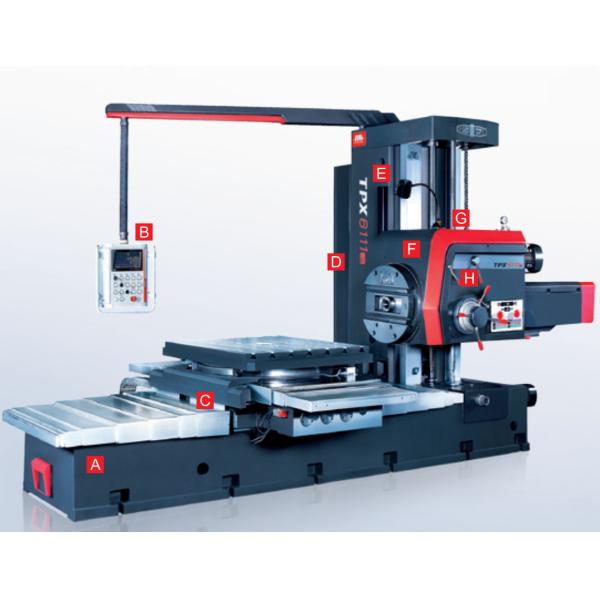

Product Introduction

TPX6111B Horizontal Boring Milling Machine Digital Readout For Stainless Steel Iron Drilling

TPX6111B Horizontal Boring Milling Machine Digital Readout For Stainless Steel Iron Drilling

TPX6111B Horizontal Boring Milling Machine Digital Readout For Stainless Steel Iron Drilling

TPX6111B Horizontal Boring Milling Machine Digital Readout For Stainless Steel Iron DrillingTPX6111B Horizontal Boring Milling Machine Digital Readout For Stainless Steel Iron DrillingTPX6111B Horizontal Boring Milling Machine Digital Readout For Stainless Steel Iron Drilling

TPX6111B Horizontal Boring Milling Machine Digital Readout For Stainless Steel Iron Drilling

TPX6111B Horizontal Boring Milling Machine Digital Readout For Stainless Steel Iron Drilling

TPX6111B Horizontal Boring Milling Machine Digital Readout For Stainless Steel Iron Drilling

TPX6111B Horizontal Boring Milling Machine Digital Readout For Stainless Steel Iron Drilling
