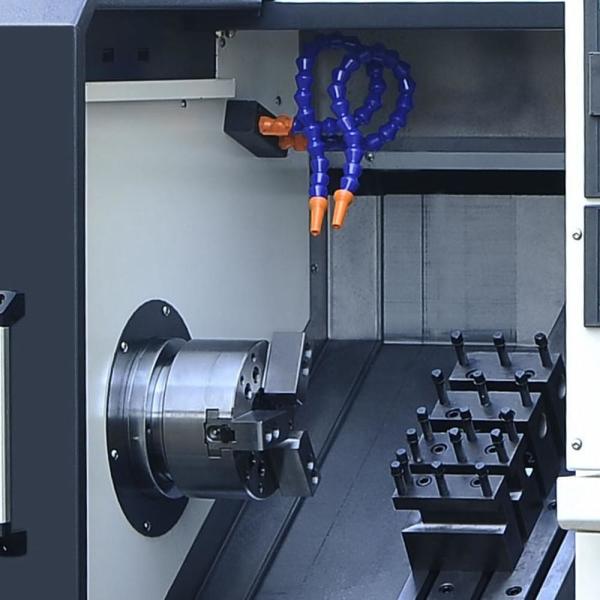

580mm X Axis Travel Slant Bed CNC Lathe Milling Machine SL580 Linear Guideway
580mm X Axis Travel Slant Bed CNC Lathe Milling Machine SL580 Linear Guideway
580mm X Axis Travel Slant Bed CNC Lathe Milling Machine SL580 Linear Guideway
580mm X Axis Travel Slant Bed CNC Lathe Milling Machine SL580 Linear Guideway
Specifications
Model Number :
SL580
Certification :
CE, ISO certification
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Name :
SL580 Slant Bed CNC Lathe with linear guideway
Chuck/ Collet :
Hydraulic collet,*Hydraulic chuck 6", 8"
Max. Workpiece Length :
collet 320,*chuck 280mm
Max. Swing Dia. Over Slide :
Ø90mm
Max. Swing Dia.over bed :
Ø380mm
Spindle Bore :
Ø48/Ø62/Ø55/Ø75mm
Spindle Nose :
A2-5/ *A2-6
Max. Spindle speed :
3000/*4500/*2000/*3500/*4000/*2500/*4000/*5000/*2500rpm
Spindle Power :
5.5/7.5Kw
X/Z axis rapid traverse :
20/20 m/min
Description

580mm X Axis Travel Linear Guideway SL580 Slant Bed CNC Lathe

Product Information

580mm X Axis Travel PLUS, an extra-long work table provides a large tool mounting area. This allows for a large number and variety of table mounted tooling options. This capacity makes the SL580 a powerful,"single set-up" turning center for turning, milling, tapping and drilling operations in a single part production cycle.

Main Specification

Items specification SL580
Capacity Chuck/collet: Hydraulic collet
*Hydraulic Chuck 6", *8"
Max.Swing Dia. Over Bed: Ø380mm
Max.Length of Workpiece : Collet 320,*Chuck280mm
Max. Swing Dia. Over Slide: Ø90mm
Spindle Spindle Bore: Ø48/*Ø62/*Ø55/*Ø75mm
Max.dia. of through-hole:Ø40/*Ø52/*Ø46/*Ø65mm
Spindle Nose: A2-5/*A2-6/*A2-5/*A2-6
Max. Spindle speed: 3000rpm, *2000rpm,*2500rpm,*2500rpm
*4500rpm,*3500rpm,*4000rpm
*4000rpm,*5000rpm
Main motor Power: 5.5/7.5kW
Axis X Axis Travel: 580mm
Z axis travel: 320mm
X/Z axis rapid traverse: 20/20m/min
Turret Type: Gang type
No. of tool stations: 6-10
OD tool and bore tool shank:20x20/Ø25mm
Structure Inclined bed degree:45°
Guideway type: LM
Others Power Capacity: 13kVA
Dimension(L×W×H): 2300x1820x1900mm
Weight(about): 3200Kg
Note "*"means optional, "N/A"means not available,"LM" means linear motion guide way

Standard Features
■ Hydraulic Collet
■Gang Type Tooling
■Ergonomic Operator Panel Design
■Automatic Lubrication System
■Automatic Coolant System
■Built-In Safety Features

Optional Features
■Different Chucks and Collets
■ Different Control Systems
■ Live Tooling
■Bar Feeder
