Flat Bed Torno CNC Lathe Machines CKA6166 11KW With D8 spindle nose
Flat Bed Torno CNC Lathe Machines CKA6166 11KW With D8 spindle nose
Flat Bed Torno CNC Lathe Machines CKA6166 11KW With D8 spindle nose
Flat Bed Torno CNC Lathe Machines CKA6166 11KW With D8 spindle nose
Flat Bed Torno CNC Lathe Machines CKA6166 11KW With D8 spindle nose
Flat Bed Torno CNC Lathe Machines CKA6166 11KW With D8 spindle nose
Specifications
Model Number :
CKA6166
Certification :
CE, ISO certification
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 sets per month
Delivery Time :
30-45 days
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Name :
CKA6166 flat bed CNC lathe
Max. swing diameter over bed :
Ø660mm
Max.swing diameter over cross slide :
Ø430mm
Max. workpiece length :
750/1000/1500/2000mm
Max. cutting length :
680/930/1430/1930mm
Spindle motor power :
7.5/11KW
Spindle bore :
Ø82mm
Type of spindle nose :
D8
Spindle speed ranges :
7-2200 (3 range manual)
Rapid traverse of X/Z axis :
4/8m/min(750-1500)、4/6m/min(2000)
Description

China CKA Series CKA6166 Flat Bed CNC Lathe Torno CNC Lathe Machine Price

Product Configuration

Configuration CKA6136 CKA6140 CKA6150 CKA6166 CKA6163A CKA6180A CKA61100A
Guide way type Box way ● ● ● ● ● ● ●
Main drive speed change form Manual servo motor ● ● ● ● O O O
Automatic servo motor O O O O O O O
Double speed motor — — O O — — —
Common motor — — — — O O O
Manual inverter-driven motor O O O O ● ● ●
Automatic inverter-driven motor O O O O O O O
Single spindle CKA6136i CKA6140i CKA6150i — — — —
CNC FANUC 0i-TF(5) ● ● ● ● ● ● ●
GSK-980TDi O O O O O O O
SIEMENS O O O O O O O
KND O O O O — — —
HNC-808D O O O O — — —
MITSUBISHI O O — — — — —
Chuck Manual ● ● ● ● ● ● ●
Domestic hollow hydraulic chuck O O O O — — —
Domestic solid hydraulic chuck O O — — — — —
Imported hollow hydraulic chuck O O O O O O O
Imported solid hydraulic chuck O O O O O O O
Tailstock Manual tailstock ● ● ● ● ● ● ●
Hydraulic tailstock O O O O O O O
Tool post Vertical 4-positon ● ● ● ● ● ● ●
Horizontal 6-positOn O O O O O O O
Horizontal 8-positon — — O O O O O
Coolant System Forced air cooling ● ● ● ● — — —
Heat exchanger for electric panel O O O O ● ● ●
Electrical thermal control unit O O O O O O O
other options or feature Steady rest O O O O O O O
Follower rest O O O O O O O
4-Jaw chuck O O O O O O O
External handwheel O O O O O O O

●---Standard O---Optional —--N/A

Main Specification

Product model UNIT CKA6150 CKA6166 CKA6150i
Max. swing diameter over bed mm Ø500 Ø660 Ø500
Max.swing diameter over cross slide mm Ø280 Ø430 Ø280
Max. workpiece length mm 750/1000/1500/2000 750/1000/1500/2000 750/1000
Max. cutting length mm 680/930/1430/1930 680/930/1430/1930 680/930
Max.turning diameter Vertical 4-position mm Ø500 Ø560 Ø500
Horizontal 6-position mm Ø400 Ø400 Ø400
Horizontal 8-position mm Ø370 Ø370 Ø370
Spindle center height mm 250 330 250
Spindle motor power kW 7.5/11 7.5/11 11/15
Spindle bore mm Ø82
Taper of spindle bore Ø90 1:20 Ø90 1:20 Ø100 1:20
Type of spindle nose D8 D8 A2-8
Spindle speed ranges r/min 7-2200
3 range manual		 7-2200
3 range manual		 30-3000
Single spindle
Taistock quill diameter mm Ø75
Tailstock quill travel mm 150
Tailstock quill taper No 5 MT
Max.travel of X-axis mm 280 305 280
Max.travelof Z-axis mm 685/935/1435/1935 685/935/1435/1935 685/935
Rapid traverse of X/Z axis m/min 4/8(750-1500)
4/6(2000)		 4/8(750-1500)
4/6(2000)		 4/8
Tool shank size (Vertical 4-positon) mm 25X25
X/Z axis positioning accuracy mm 0.018/0.021(750)
0.024(1000)
0.026(1500,2000)		 0.018/0.021(750)
0.024(1000)
0.026(1500,2000)		 0.018/0.021(750)
0.024(1000)
X/Z axisrepeatability accuracy mm 0.006/0.008(750)
0.011(1000)
0.014(1500,2000)		 0.006/0.008(750)
0.011(1000)
0.014(1500,2000)		 0.006/0.008(750)
0.011(1000)
machine dimensions
(L*W*H)		 mm 2580X1750X1620(750)
2830X1750X1620(1000)
3330X1750X1620(1500)
3830X1750X1620(2000)		 2580X1750X1620(750)
2830X1750X1620(1000)
3330X1750X1620(1500)
3830X1750X1620(2000)		 2580X1750X1620(750)
2830X1750X1620(1000)
Machine weight kg 2550/2600/2700/2800 2700/2750/2850/2950 2550/2600

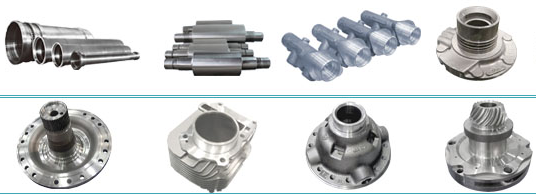

Workpiece Sample

Flat Bed Torno CNC Lathe Machines CKA6166 11KW With D8 spindle nose
