TXK20 series large CNC moving beam gantry milling machine

1. TXK20 series CNC gantry moving beam milling machine is a new generation of precision CNC machining machine tools, suitable for high speed steel carbide tool on ferrous metal, non-ferrous metal and part of the non-metallic material processing of the workpiece. Can complete the plane, high and low surface, inclined surface, side, groove class, boring, drilling and other processes of the milling process.

2. Transmission mode of worktable: workbench ball screw drive, driven by AC servo system to achieve stepless adjustment of working speed and positioning, and repeat positioning accuracy

3. Beam locking: TXK20 series beam is mechanically automatically locked and realizes chain control with the beam lifting.

4. The two-axis ball screw drive of the end milling head is driven by an AC servo system to achieve stepless adjustment of working speed and positioning, and the accuracy of repeated positioning

5. Side milling head milling feed quantity is stepless adjustable.

6. All machine tools are cast, processed, assembled by our company. The casting materials are HT250 quality cast iron, all through thermal, vibration and secondary time treatment, to fully eliminate the internal stress of the casting. The bed body, column and beam guide rail have been super audio quenching.

Main Technical Parameters

Standard configurations

1.One vertical milling head(Three-axis CNC)

2. One side milling head (optional between left and right)

3.Steel plate shield of the bed body

4.Bebar, column organ type shield

Special attachments

1.90 degree Angle milling head

2. Pneumatic tool lock

3.Microelectronic pulsating tool setting handwheel

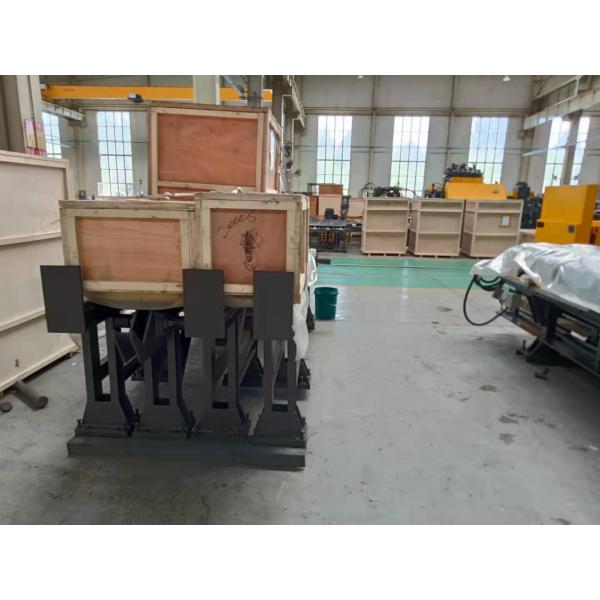

Packaging

FAQ

1. what is Parts material?
Such as the Aluminum, Steel, Stainless steel, Cast iron, Superalloy, Hard material, etc.

2. What is the processing?
My company's CNC machine tool products, different models have different characteristics, please contact me to get detailed information.

3.How to choose the besifit for your machine?
If you have special request for the machine tool configuration,and the budget is limited, we can also according to your need to change the configuration.
Thus please provide us your machining drawing, we are very glad to design a specific process solution for you and recommend you a proper CNC machine model.

4.Does your company accept customized offer?We have special need.
Our company focuses on research and manufacture of modular CNC machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.

5.Confirm the purchase
FOB CFR or CIF, LCL or FCL shipping.
Payment terms: T/T or LC or other ways contact us.
Package: Plywood case.
Delivery time: Within 30-45 working days after the down payment. (Actual delivery time depends on actual order.

6.Tips and others
Warranty period: One year.
If the outer packing damage, leakage erc, and if the goods damaged;
Check the packing list the product literature and warranty cards if they is integrity;
Examine the content of the packing list,the product quantity to both consistent,and accessories;
Machine tool details if they are normal, If have the trace of replacement and maintenance, If have other effects use of the problerm.
If happens above declare,please take pictures and contact us immediately.
