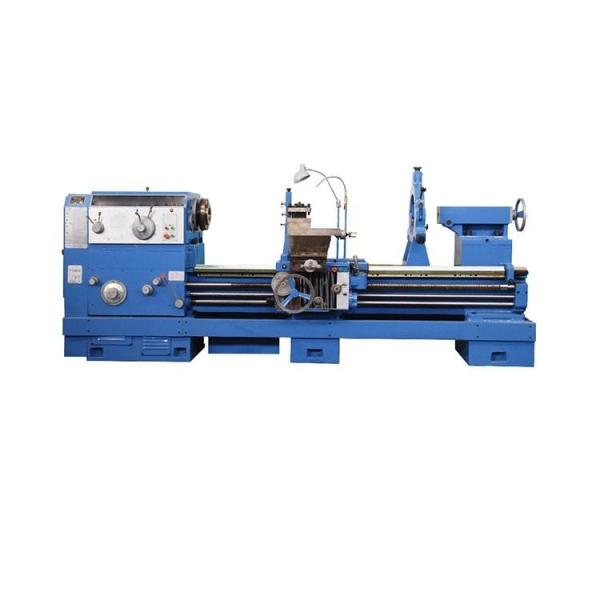

Horizontal Conventional Lathe Machine CW6163B CW6263B Gap Bed Engine Lathe
Horizontal Conventional Lathe Machine CW6163B CW6263B Gap Bed Engine Lathe
Horizontal Conventional Lathe Machine CW6163B CW6263B Gap Bed Engine Lathe
Horizontal Conventional Lathe Machine CW6163B CW6263B Gap Bed Engine Lathe
Specifications
Brand Name :
smtcl
Model Number :
CW6163B/6263B
Certification :
CE ISO
Packaging Details :
Package suitable for long distance sea freight
Supply Ability :
35 Set/Sets per Month
Price :
Negotiable
MOQ :
1 Set
Delivery Time :
30-40 days
Place of Origin :
China
Product name :
CW6163B/6263B Horizontal Conventional Lathe machine
Width of bed (mm) :
300
Max. Swing Diameter (mm) :
630
Max turning dia over carriage :
350mm
Max workpiece length :
1000,1500,2000,3000,4000,5000,6000,7000
Max. swing diameter and width in gap :
800/300mm
Spindle bore and nose :
104/D11
Max. cross travel of lower slide :
420mm
Max. travel of top slide :
200mm
Max. travel of tailstock quill :
250mm
Description

Heavy Duty Engine Cw Series Horizontal Conventional Turning Gap Bed Lathe machine CW6163B/6263B

Product Introduction

This series of lathes can be used for various turning processes, such as turning inner and outer cylindrical surfaces, conical surfaces and other turning surfaces, end faces, and can also process various common threads-such as metric, inch, modulus, diameter threads,, hinges, tapping, Tumble over the trunking, etc. The flat bed with high torsion resistance is carefully manufactured with high-quality cast iron, and the rail surface is precision treated by induction hardening; the flexible guide rail composed of adhesive PTFE conductive guide rail is wear-resistant, anti-vibration, and has good accuracy retention; the main shaft adopts a three-support structure with high rigidity. High precision and powerful cutting. The sliding box has a fast moving body.

Machine Parameters
Model CW6163B / CW6263B CW6180B / CW6280B
Max. swing diameter over bed 630mm 800mm
Max. swing diameter over carriage 350mm 480mm
Max. work piece length 1000.1500, 2000, 3000, 4000, 5000, 6000, 7000

1500,3000,4000,5000,

6000,7000mm
Max. swing diameter and width in gap 800/300mm 1000/300mm
Spindle bore and nose 104,D11(B series) 104,D11(B series)
Taper in spindle nose and center 120(B series) Morse NO.5 120(B series) Morse NO.5
Steps and range of spindle speeds 18speeds 7.5-1000(B series) r/min 18speeds 5.4-720(B series) r/min
Steps and range of longitudinal feeds 64feeds 0.05-24.3 mm/r 64feeds 0.06-24.3 mm/r
Range 1:1 0.1-1.52 mm/r 0.1-1.52 mm/r
Range 16:1 1.6-24.3mm/r 1.6-24.3mm/r
Range of fine feed with change gears 0.05-0.912mm/r 0.05-0.912mm/r
Longitudinal and cross feed rate 1/2 1/2
Quick movement of saddle 4000mm/min 4000mm/min
Screw pitch 12(metric);1/2''(whitworth) 12(metric);1/2''(whitworth)
Number and range of metric thread 50kinds 1-240 50kinds 1-240
Number and range of whitworth thread 26kinds 14-1 26kinds 14-1
Number, range of module thread 53kinds 0.5-120mm 53kinds 0.5-120mm
Number, range of diametral thread 24kinds 28-1D P 24kinds 28-1D P
Max. cross travel of lower slide 420mm 500mm
Max. travel of top slide 200mm 200mm
Max. travel of tailstock quill 250mm 250mm
Taper of tailstock quill Morse NO.5 Morse NO.5
Width and hardness of bed guideways 550 RC52mm 600 RC52mm
Main motor power 11kW 11/15kW
Rapid motor power 1.1kW 1.1kW
Power of coolant pump motor 120W 120W
Machine W×H 1380×1450 1450x1630
Max. payload of workpiece 2.5t 2.5t

Packaging & Shipping

Horizontal Conventional Lathe Machine CW6163B CW6263B Gap Bed Engine Lathe

Horizontal Conventional Lathe Machine CW6163B CW6263B Gap Bed Engine Lathe


FAQ

a: How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .

b: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

c. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

d: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

e: What's the MOQ?
A: 1 set .

We want to know:

a.What's your Industrial Voltage?

b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!

c.If need CIF Price, please kindly tell us the port of destination.
