Specifications
Brand Name :
SMTCL
Model Number :
HTC125500
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
50 Sets per Month
Delivery Time :
30 days
Packaging Details :
Wooden package standard for sea shipping
Brand :
SMTCL
Type :
HTC125500
Product name :
CNC Horizontal lathe
Maximum swing diameter over bed :
1250mm
Maximum cutting length :
5000mm
Maximum cutting diameter :
1250mm
X axis travel :
650mm
Z axis travel :
5000mm
Tool post type :
Vertical 4-position
Description

SMTCL Heavy CNC Lathe 5000mm HTC125500 Horizontal Flat Bed CNC Heavy Turning Machine

Product Description:

Shenyang Machine Tool HTC125500 is a numerically controlled horizontal lathe with excellent performance. Its maximum swing diameter reaches 1.25 meters, providing multiple specification options. The maximum processing length can reach 8 meters, meeting the processing needs of large workpieces. The standard load-bearing capacity of the spindle box is 5 tons, and for heavy-duty models, it can reach 8 tons. The high load-bearing capacity ensures processing stability. It adopts a flat bed and mountain-flat guideway structure and is equipped with auxiliary guideway supports, greatly enhancing rigidity and being suitable for heavy cutting. There are abundant optional devices such as B-type center rest, heavy-duty four-position tool holder, multi-specification horizontal tool post, and small spindle tailstock, etc., which can be flexibly configured according to the processing needs of parts. This machine tool is widely used in multiple industries such as petroleum, valves, and power. With its characteristics of high rigidity, large diameter, and high load-bearing capacity, as well as precise processing accuracy and high processing efficiency, it provides strong support for enterprise production and is an ideal choice for processing large workpieces, helping enterprises improve production levels and competitiveness.
Product Features:

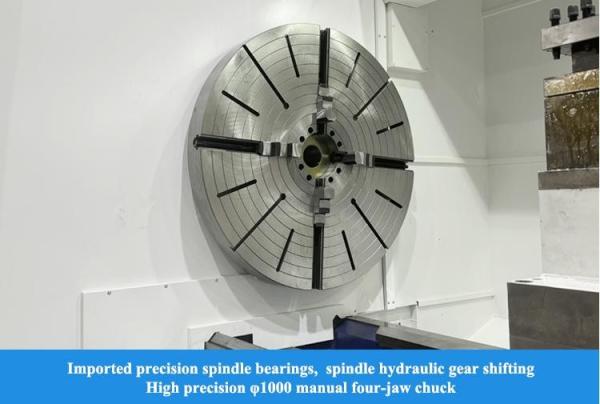

headstock:

Selection of imported precision spindle bearings, high precision fire grinding gear, spindle hydraulic shift Chuck: Selection of domestic well-known brands, clamping force, clamping reliable

Z-axis drive:

SIEMENS/FANUC original servo motor, screw drive for machine tools with less than 5m stroke, rack drive for machine tools with 6m and above

Steady rest:

Various specifications closed center frame (can be equipped with rollers)

Tool rest:

Domestic vertical four-station electric tool holder, can be selected with other vertical and horizontal tool holder, high positioning accuracy, strong rigidity, high reliability

Bed saddle, skateboard:

Casting bed saddle, skateboard, reasonable internal rib layout, high precision ball screw or rack and pinion, high precision, accurate transmission

Control console:

Siemens servo system, to achieve high-speed, high-precision, high-stability servo control, optional FANUC system

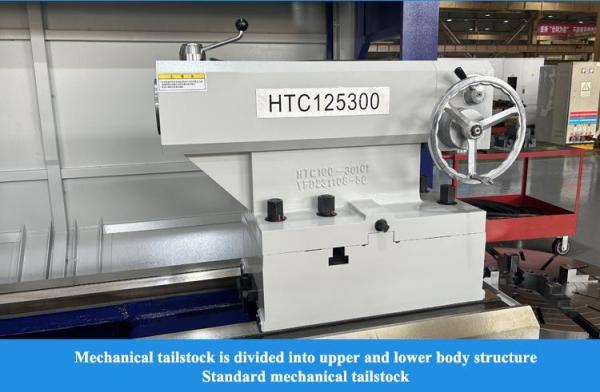

Tailstock:

Mechanical tail seat is divided into upper and lower body structure. Standard mechanical tailstock

Body:

Casting bed with reasonable internal rib layout and auxiliary guide rail, with high rigidity, strong bearing capacity, good stability and so on. (6m and above specifications of the bed with a long section splicing form)

SMTCL Heavy CNC Lathe 5000mm HTC125500 Horizontal Flat Bed CNC Heavy Turning Machine

Industry application:

Product Paramenters:

Items
Unit
HTC 125500
Maximum swing diameter over bed
mm
1250
Maximum workpiece holding length (distance between centers)
mm
5100
Maximum cutting length
mm
5000
Maximum cutting diameter
mm
1250
Maximum swing diameter over cross slide
mm
850
Spindle nose type and code
A2-15
Spindle front end bore taper
Metric 140
Spindle bore diameter
mm
130
Hydraulic variable speed headstock
Spindle speed range
r/min
5-500
Maximum output torque of spindle
Nm
7500
Spindle speed steps
Hydraulicly 3steps, infinitely variable speeds at each step
Power of main motor
kW
22
Chuck
Diameter/type of chuck
mm
1000/manual four-claw
X-axis rapid traverse speed
m/min
6
Z-axis rapid traverse speed
m/min
5
X-axis travel
mm
650
Z-axis travel
mm
5000
Mechanical tailstock
Tailstock sleeve diameter
mm
160
Tailstock sleeve travel
mm
300
Tailstock sleeve taper
Mohs 6#
Tool post type
Vertical 4-position
Tool size
mm
40*40
Maximum load capacity
Disc workpieces
kg
1000
Shaft workpieces
kg
5000
Machining accuracy
IT6-IT7
Roundness of workpiece machined
mm
0.005
Consistency of machining diameter
mm
0.025/300
Planeness of workpiece machined
mm
0.02/300
Surface roughness of workpiece machined
Cylindrical surface
Ra l.6μm
Circular cambered surface Conical surface
Ra 3.2μm
Positioning accuracy
X-axis
mm
0.014
Z-axis
mm
0.05
Repeated positioning accuracy
X-axis
mm
0.006
Z-axis
mm
0.016
Center height
From bed
mm
625
From ground surface
mm
1275
Overall dimension (L* W * H)
mm
8500*2725*2450
Standard configuration:
1. CNC control system: Siemens 828D
2.Domestic 22kW frequency conversion main motor
3. Imported high-precision spindle bearings
4. Manual tail seat
5. Vertical four-station electric tool holder
6. Imported brand lead screw
7. φ1000 manual four-jaw chuck
8. Two axis automatic lubrication
9. Cooling device
10.The floor mat iron (technical foot hole configuration)
Selective configuration:
1. CNC system FANUC(two-axis motor with the system configuration)
2. Other specifications three or four jaw chuck
3. Heidenhain/Fager grating ruler
4. Axle parts bearing capacity 8 tons
5. Various specifications steady rest and roller
6. Siemens/FANUC main motor
7. Other specifications power tool holder
8. Semi-closed protection
9. Chain plate chip extractor
10. Various specifications boring tool base
11. Small spindle tailstock
12. Electric tailstock
