SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
Specifications
Brand Name :
SMTCL
Model Number :
HTC50E
Certification :
CE ISO certification
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, L/C,, Western Union
Supply Ability :
50 sets per month
Delivery Time :
45-60 days
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
CNC Control System :
GSK/FANUC/SIEMENS
CNC or Not :
CNC
Key word :
Slant Bed Lathe CNC Machine
Max. swing over bed :
Φ700、670、670
Max. swing over slide :
Φ500
Max. Turned Length :
1000、1500、2000 mm
Travel (X Axis) :
320 mm
Travel (Z Axis) :
1050、1550、2050 mm
X/Z rapid traverse :
24 m/min
Max. Spindle Speed :
50~3500 r.p.m
Tool Post Stations :
Horizontal 12 station servo turret
Description

SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine

Product Description:

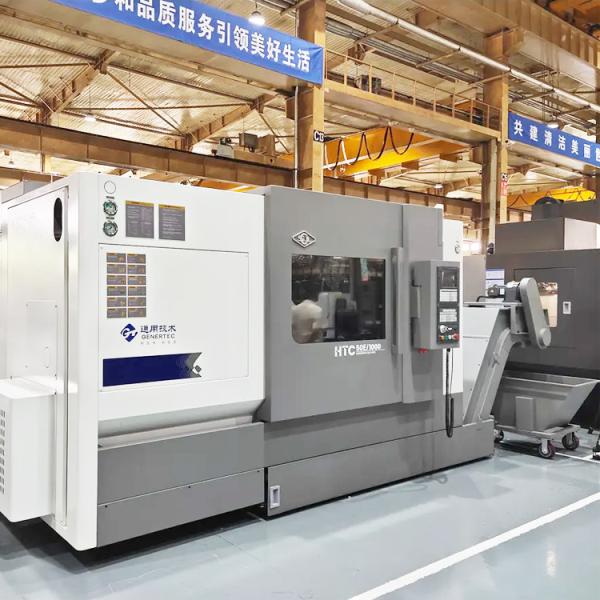

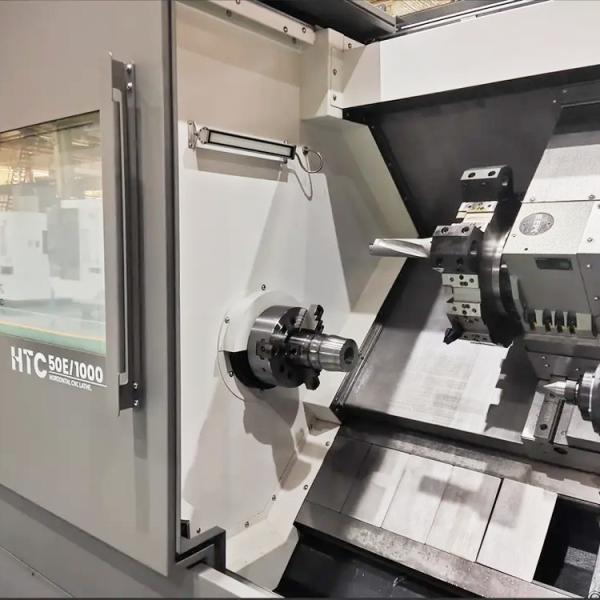

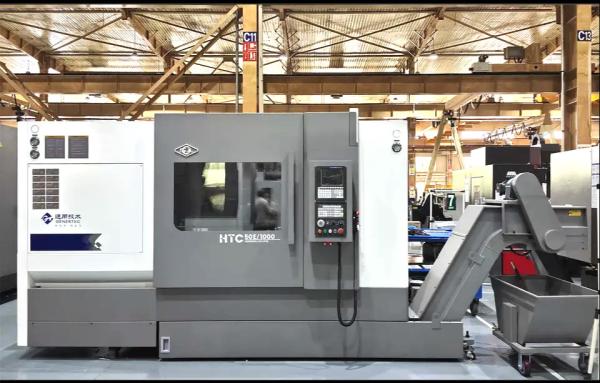

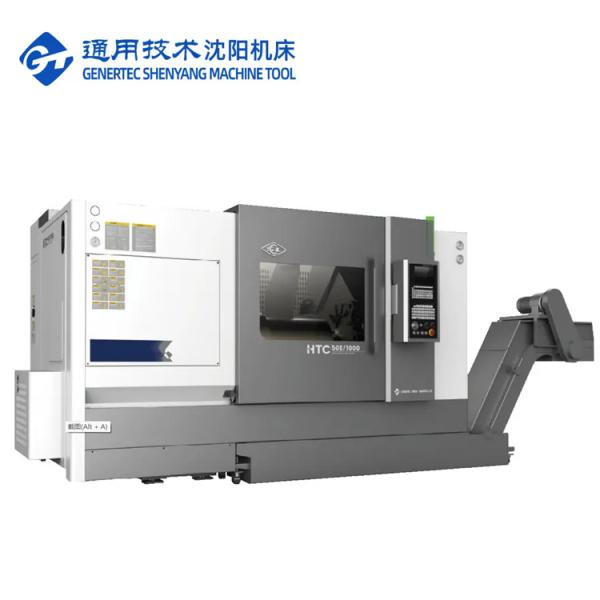

SMTCL Slant Bed CNC Lathe HTC50E
Slant Bed CNC Lathe HTC50E is a new generation of CNC lathe. As a general-purpose machine tool, it is especially suitable for high-efficiency, large-volume, and high-precision processing of rotating parts in industries such as automobiles, motors, bearings, and hydraulic pressure.
Ingenuity To Make Classic "Inheritance"
The localization rate of the whole machine is 100% Core process to rebuild CS1 brand
Exceptional Performance Excellent "Quality"
"Three" module development, selection of the best Standardize manufacturing quality assurance
Optimized Design Volume "Exquisite"
Machine tool internal mechanism optimization A 15% reduction in floor space

Product Features:

1. High Rigidity Integral Bed

2. High Speed, High Rigidity And High Precision Spindle
3. High Rigidity Tailstock
4. High Rigidity Feed System

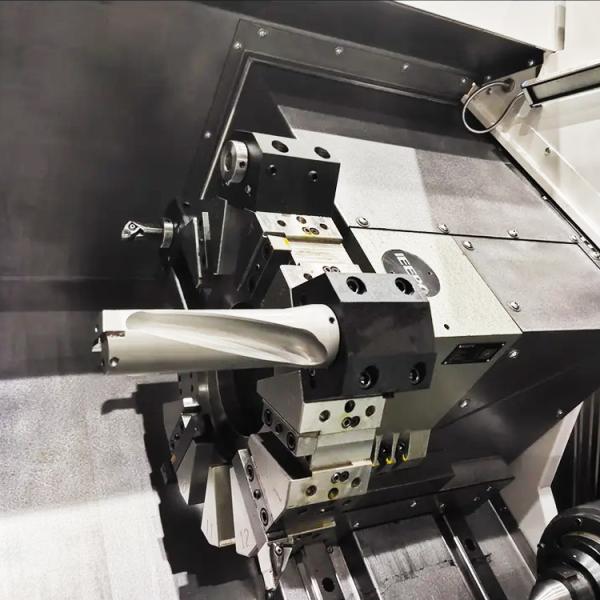

5. High Rigidity Servo Turret
6. Sliding Guide Rail Configuration
Product Details:
SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
Product Paramenters:
Main technical specifications
Main Technical Parameters
Item
Unit
HTC50E series
Maximum swing diameter over bed
mm
700/670/670
Maximum cutting length
mm
1000/1500/2000
Maximum cutting diameter
mm
Shaft 500/disk 550
Maximum swing diameter over carriage
mm
500
Spindle nose
A2-8
Spindle hole diameter
mm
80
Spindle speed range
r/min/Nm
50~3500/344 GSK system
Main motor Spindle maximum output torque 30 minutes / continuous
kW
30/22
Standard chuck diameter
inch
10''
X-axis fast moving speed
m/min
24
Z-axis fast moving speed
m/min
24
X-axis travel
mm
320
Z-axis travel
mm
1050/1550/2050
Tailstock sleeve diameter
mm
120
Tailstock sleeve travel
mm
150
Tailstock travel
mm
800/1300/1800
Tailstock spindle taper taper
Morse
5#
Standard turret form
Horizontal 12 station servo turret
Tool size
External tool
mm
25×25
Boring bar diameter
mm
Ф40/Ф32/Ф25/Ф16
Positioning accuracy
X axis
mm
0.010
Z axis
mm
0.015
Repeat position accuracy
X axis
mm
0.005
Z axis
mm
0.007
Weight capacity
Disk type
kg
200
Shaft type
kg
800
Machine weight
7000/8500/10000
Machine tool appearance
Length × width × height
mm
3700×2210×2200
4300×2210×2200
4900×2210×2200Main accuracy
Inspection items
Factory standard
Machining accuracy
IT6
Roundness of machined workpiece (mm)
0.0025
Cylindricity of machined workpiece (mm)
0.016/300
Flatness of machined workpiece (mm)
0.020/Ф300
Surface roughness of machining workpiece
Ra1.25μm
Positioning accuracy
X axis (mm)
0.010
Z axis (mm)
0.015
Repeat positioning accuracy
X axis (mm)
0.005
Z axis (mm) Z
0.007

Main configuration

Main configuration of machine tool and list of purchased parts
No.
Name
Manufacturer
Remarks
1
CNC system
GSK
Optional FANUC
2
Main motor
GSK
Optional FANUC
3
Servo motor
GSK
Optional FANUC
4
Two -axis screw
Domestic
5
Two-axis ball guide
Domestic
6
Spindle bearing
Imported
7
Screw bearing
Imported
8
12 station servo turret
IEEPO
100 center height
9
Chuck
Taiwan Province/Korea
10²Medium solid
10
Tailstock
Our factory
Manual tailstock without sleeve lock
11
Chip cooling box
Domestic

OUR Service:

1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine
Exhibition:

SMTCL Metal Slant Bed CNC Lathe HTC50E Fanuc Turning And Milling Center CNC Lathe Machine

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
