Specifications
Brand Name :
SMTCL
Model Number :
IT35L
Certification :
CE ISO certification
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, L/C,, Western Union
Supply Ability :
50 sets per month
Delivery Time :
45-60 days
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
CNC Control System :
GSK
CNC or Not :
CNC
Key word :
Slant Bed Lathe CNC Machine
Max. Turned Length (mm) :
500
Max. Spindle Speed (r.p.m) :
4000 r.p.m
Travel (X Axis)(mm) :
260
Travel (Z Axis)(mm) :
510
Maximum turning diameter :
Φ360
Maximum turning length :
500
Maximum swing over bed :
Φ580
Max swing over slide :
Φ330
Description

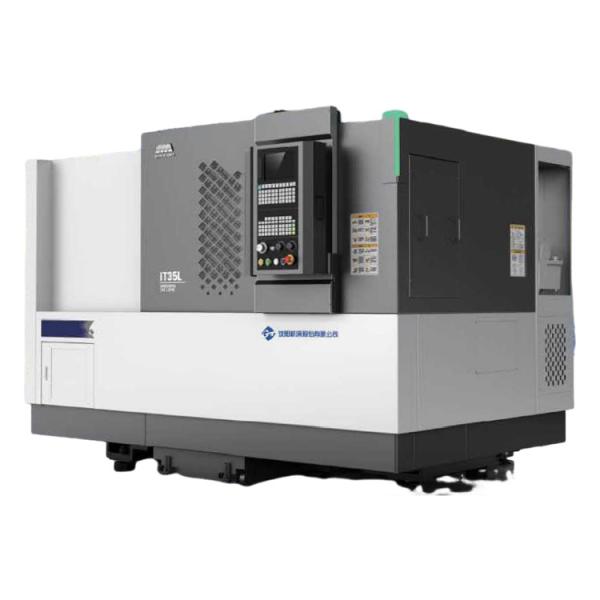

SMTCL Slant Bed CNC Precision Lathes IT35L Small CNC Lathe With Live Tooling CNC Lathe Machine For Metal

Product Description:

IT35L CNC lathe has good economy, environmental protection, high efficiency and cost-effective, equipped with high-quality telescopic spindle unit, eight-station servo tool holder, two-axis servo motor and linear guide rail.

The whole machine adopts a fully enclosed protective structure, with high rigidity and good dynamic performance, reliable structure and easy operation.

The machine is suitable for bearing, gear, belt wheel, ball cage, hydraulic and other industries, and can meet the efficient processing needs of various typical parts.

Product Features:

1,High Rigidity

♦ Finite element analysis to optimize the whole machine structure

♦ The bed is made of high quality castings with reasonable bar layout

♦ Configuration of large span, large torque spindle, improve cutting rigidity

♦ Precision scraping process, improve the connection rigidity

2,High efficiency
♦ Configuration servo tool holder, short transposition time, high tool change efficiency
♦ Two-axis servo motor drive, fast moving speed
♦ Large chip discharge port design, efficient chip discharge
♦ User-friendly design, easy operation and maintenance
3,High Stability
♦ Double support feed structure to achieve stable processing
♦ High quality guide screw, stable operation
♦ Integral tail platform, parts simplification, high stability
♦ Quantitative process indicators, strict inspection standards
Product Details:
SMTCL Slant Bed CNC Precision Lathes IT35L Small CNC Lathe With Live Tooling CNC Lathe Machine For Metal
Product Paramenters:
Item
unit
specification (IT 35L)
Maximum turning diameter
mm
Φ360
Maximum turning length
mm
500
Maximum swing over bed
mm
Φ580
Max swing over slide
mm
Φ330
Spindle
spindle nose
mm
A2-6
front bearing dia
mm
100
spindle taper and hole size
mm
1:20；Φ70
dis.of spindle hole
mm
Φ65
max dia. Of bar
mm
Φ50
chuck size
inch
8
spindle speed
r/min
4000
spindle rated torque
Nm
158(666r/min)
max spindle torque
Nm
215(666r/min)
max motor output power continous/30min
kW
11/15
Feeding
X/Z max speed
m/min
30
x axis travel
mm
200
z axis travel
mm
510
Tailstock
tailstock travel
mm
400
tailstock taper
morse
MT-5
Turret
turret type
Horizontal 8 station servo turret
center height
mm
80
rotary positioning
SEC.
±1.6
Other
weight
KG
3600
overall dimensions
(L*W*H)
mm
2550×1675×1760

Industry application:


SMTCL Slant Bed CNC Precision Lathes IT35L Small CNC Lathe With Live Tooling CNC Lathe Machine For Metal

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL Slant Bed CNC Precision Lathes IT35L Small CNC Lathe With Live Tooling CNC Lathe Machine For Metal
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
SMTCL Slant Bed CNC Precision Lathes IT35L Small CNC Lathe With Live Tooling CNC Lathe Machine For Metal

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
