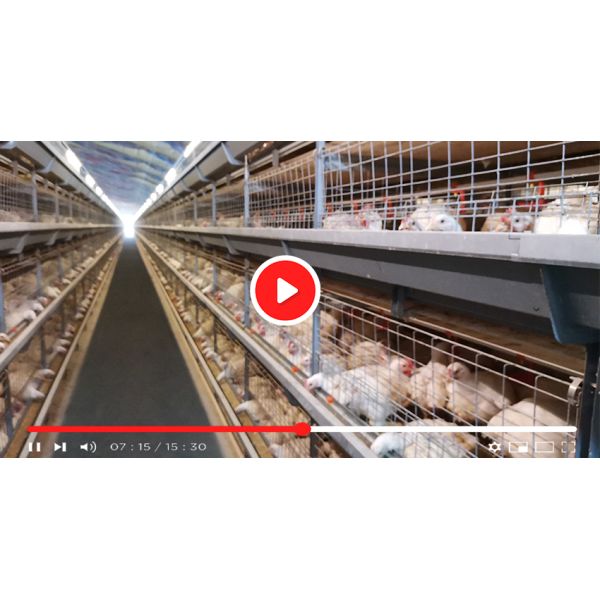

Product Video:

Product Features:

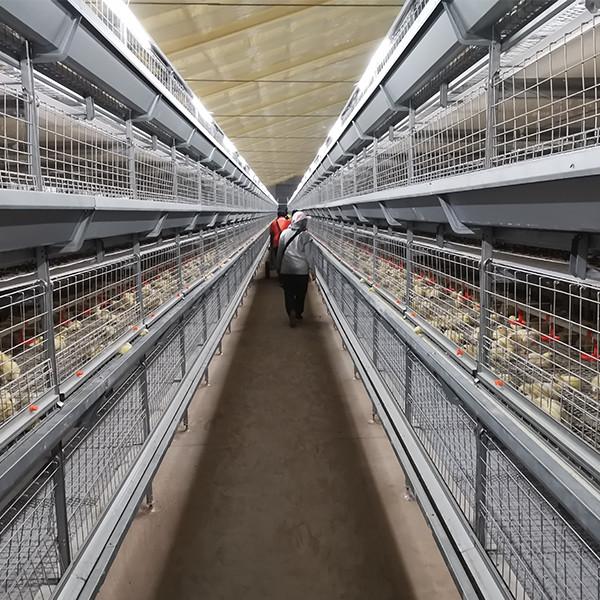

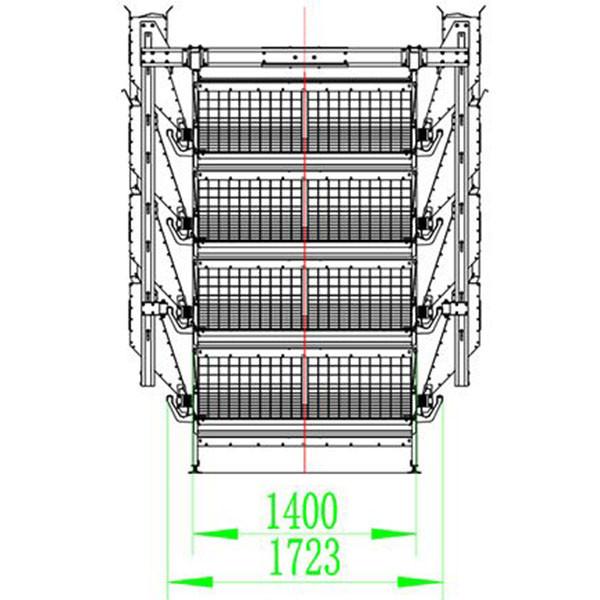

Main body system

● Main structure is zinc-free hot galvanized plate, the thickness of zinc coating is 275g per square meter. Post welding hot dip galvanized process is adopted for the whole cage wire; special galvanization process is adopted and there is no zinc dreg, endowing a long service life.

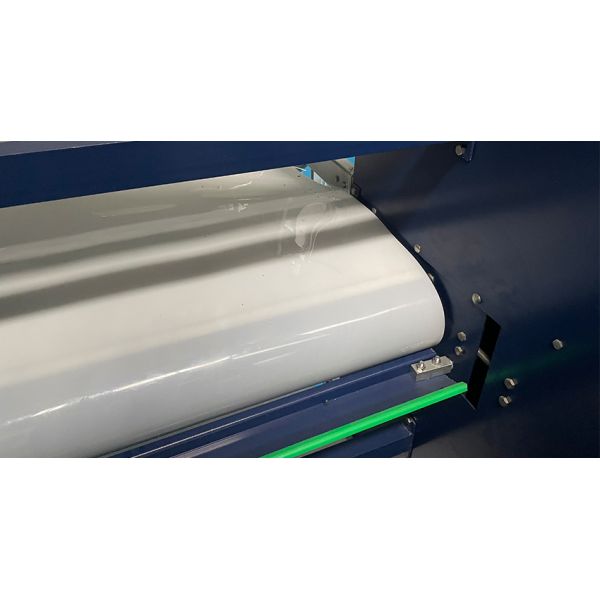

Manure cleaning system

● The longitudinal manure belt is made of δ=1.0mm pp material, with smooth surface and high intensity. Without belt off-tracking, the manure can be cleaned completely and thoroughly.

● Cross manure cleaning frame part is integral hot galvanized. The conveyor belt is made of PVC material, seamless connection design, mounted directly in integral circle, which assures the intensity and long-lasting service life.

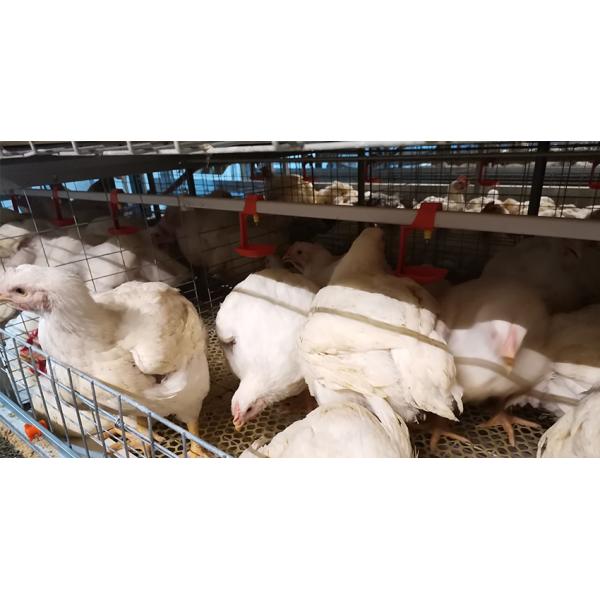

Water supply system

● Integral controlled water supply lifting system, quality reliable and leakage proof. This system reduces the labor intensity and avoid drinking line damage caused by operation failure.

Feeding system

● EJOY provides for you sowing mode and hopper trolley mode two options for feed supply. (hot galv. , zinc layer 275g/㎡)

● Advantage for sowing type feed supply: simple and efficient structure, highly cost effective, more suitable for newly built poultry house.

● Advantage for hopper trolley feed loading: compact structure, smooth and accurate feed drop. It takes up smaller space, which will not interfere with lights drooping arrangement. Its application requires less of poultry house floor flatness.

Product Advantages:

●Cage mesh Material galvanized coat content reach 275g㎡, GALFAN wires (5%AL 95%zinc) lifegspan is up to 20 years.

●Transverse and longitudinal connected structure is sound and reliable as well as simple and highly efficient, ensuring the stability of cage body without collapse.

●The overall inner pushing type of big net gate are adopted, providing alternatives and facilitating manual operation.

●It adopts the integrated sealing injection pad, which is soft and no pullet drop.

●It has rail for operating vehicles, facilitating observation, catching chicken and protecting cribs.
