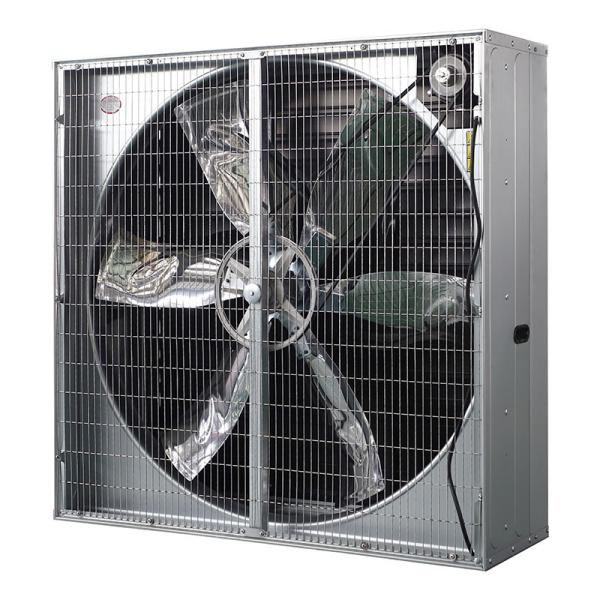

50inch Circulation Ventilation Exhaust Fan For Poultry Houses HI HOPE
50inch Circulation Ventilation Exhaust Fan For Poultry Houses HI HOPE
50inch Circulation Ventilation Exhaust Fan For Poultry Houses HI HOPE
50inch Circulation Ventilation Exhaust Fan For Poultry Houses HI HOPE
50inch Circulation Ventilation Exhaust Fan For Poultry Houses HI HOPE
50inch Circulation Ventilation Exhaust Fan For Poultry Houses HI HOPE
Specifications
Brand Name :
HI-HOPE
Certification :
ISO
Place of Origin :
China
MOQ :
10Sets
Price :
USD200-800/Set
Supply Ability :
10000sets/month
Delivery Time :
25days
Packaging Details :
Standard packing for sea shipping
Model :
50", 54"ventilation fan
Material :
Galvanized or fiberglass
Motor :
ABB or WEG
Drive :
Belt
Description

50 Inch Galvanzied Fiberglass Poultry Farm Climate Ventilation Fan

Poultry Farm Climate Ventilation Fan Features:


1- High efficiency
2- High durabilit
3- Easy to maintain and install
4- Optimal aerodynamical air intake
5- 2-year warranty on the motor
6- Low noise level
7- Easy to clean for optimal hygiene

1, The 54inch Fiberglass Cone Fan is widely used in Pig Farm, We suggest the 54in Galvanized Fan for Poultry Farm too.


1-1, Techinical Specification:

Brand & Model Housing Blade Shutter Power Drive
Material Size Material Diameter HP KW
54in Fiberglass Cone Fan with Louver Shutter Fiberglass 56" * 56" High Strength Composite Fiber 54" Louver Shutter 2.0 1.5 Belt Drive

1-2, Performance Data:

Brand & Model Static Pressure Air Flow DriveMotor
Pa In.H2O m³/h cfm Voltage(V) Frequency(hz) Phases Brand
54in Fiberglass Cone Fan with Louver Shutter 0.0 0.0 52725 31052 220v-380v 50/60 3 WEG or ABB
12.5 0.05 50255 29598 220v-380v 50/60 3 WEG or ABB
25.0 0.1 45720 26927 220v-380v 50/60 3 WEG or ABB

50inch Circulation Ventilation Exhaust Fan For Poultry Houses HI HOPE

2, The 50inch galvanized ventilation fan material is galvanzied with high quality. Different model of fan supplied.

2-1, Techinical Specification:

Brand & Model Housing Blade Shutter Power Drive
Material Size Material Diameter HP KW
50in Galvanized Box Fan with Louver Galvanized Steel 54" * 54" SS, 6 Blades 50" Louver 1.5 1.1 Belt Drive
50in Galvanized Cone Fan with Louver Galvanized Steel 54" * 54" SS, 6 Blades 50" Louver 1.5 1.1 Belt Drive
50in Galvanized Butterfly Cone Fan Galvanized Steel 54" * 54" SS, 6 Blades 50" Butterfly Damper 1.5 1.1 Belt Drive

2-2, Performance Data:

Brand & Model Static Pressure Air Flow DriveMotor
Pa In.H2O m³/h cfm Voltage(V) Frequency(hz) Phases Brand
50in Galvanized Box Fan with Louver 0.0 0.0 39100 23000 220v-380v 50/60 3 WEG or ABB
12.5 0.05 37500 22100 220v-380v 50/60 3 WEG or ABB
25.0 0.1 35800 21000 220v-380v 50/60 3 WEG or ABB
50in Galvanized Cone Fan with Louver 0.0 0.0 41300 24300 220v-380v 50/60 3 WEG or ABB
12.5 0.05 38700 22800 220v-380v 50/60 3 WEG or ABB
25 0.1 35900 21100 220v-380v 50/60 3 WEG or ABB
50in Galvanized Butterfly Cone Fan 0.0 0.0 49530 28465 220v-380v 50/60 3 WEG or ABB
12.5 0.05 40194 23100 220v-380v 50/60 3 WEG or ABB
25 0.1 37236 21400 220v-380v 50/60 3 WEG or ABB

50inch Circulation Ventilation Exhaust Fan For Poultry Houses HI HOPE

50inch Circulation Ventilation Exhaust Fan For Poultry Houses HI HOPE
