380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers
380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers
380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers
380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers
380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers
380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers
380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers
380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers
380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers
380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers
Specifications
Brand Name :
HI-HOPE
Certification :
ISO9001,CE,SGS
Place of Origin :
China
MOQ :
1Set
Price :
USD1000-USD20000/Set
Supply Ability :
5000sets/month
Delivery Time :
25-50days
Packaging Details :
Standard packing for sea shipping
Name :
Broiler feeder and drinker
Feed pipe dia :
45cm diameter
Feeder :
3m 4pan or 3m 3 pan
Water pipe dia :
25cm diameter
Nipple drinker :
1 m 4 nipples or 1m 5 nipples
Hopper capacity :
70kgs
Motor :
380V/220V, 50HZ/60HZ, 3PH/1PH
Suspension :
Winch and wire
Description

Chicken Farm Automatic Complete Broiler Feeder And Drinker Equipment

Part-1
Broiler Pan Feeding Line include the Drive Motor, Broiler Chicken Feeder, Feed Pipe, Flexible Feed deliver Auger, Suspension system and other necessary parts. Hi-hope select the most stable and quality drive motor to ensure the whole line stable and efficient working automatically. And the flexible auger is from the world top auger supplier Technical System. Feeder could be used from day one to moved out, and feeder designed with the maximum feed bearing capacity to supply more birds. The whole line design aim to get the best FCR for customer chicken growing.

380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers

Part-2

Poultry Farm Broiler Pan Feeder Specification:

General Information of the Line Drive Unit 50hz/60hz 271rpm/325rpm
Transport Capacity Minimum 420kg/h
Drive Unit Italy, Transtecno
Suspension Max 3m
Feed Tube 3m long and hot galvanized

380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers

Part-3

Broiler Feeder Pan Parameter:

Broiler Feeder Production Application Application
Recommand Birds No./Feeder 45-55 Broiler, Layer, Layer Breeder
Recommand live birds weight per square meter 40kg
Broiler Feeder Specifications Diameter Weight
Parameter 330mm 0.6kg


380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers

Part-4

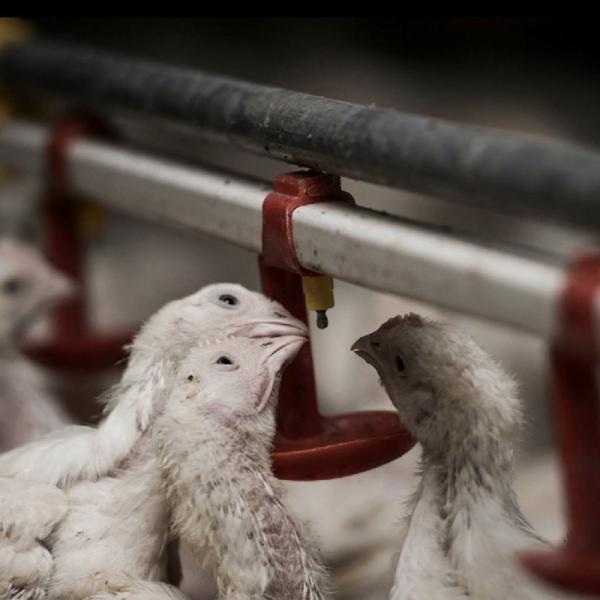

Nipple drinking system Includes
1: Main water supply
2: Drinking line
3: Water pressure regulator
4: Suspension

The main water supply secures an optimum water quality for a long service life of the nipple drinker. And the trigger nipples can easily be used by the birds all around 360°. Water pressure regulator help keep a suitable pressure for the whole drinker line, then birds could get enough water from one day to moved out. The drinking lines are suspended for an optimum birds drinking height and easily for cleaning.

380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers

380V 220V Chicken Farm Equipment 45cm Pipe Broiler Chicken Feeders Drinkers
