Specifications
Brand Name :
HI-HOPE
Certification :
ISO9001,CE,SGS
Place of Origin :
China
MOQ :
1Set
Price :
USD1000-USD20000/Set
Supply Ability :
5000sets/month
Delivery Time :
25-50days
Packaging Details :
Standard packing for sea shipping
Name :
Broiler pan feeding
Feed pipe :
45mm diameter
Feeder :
3m 4pan or 3m 3 pan
Feeder grill :
14 grill
Hopper :
Center or side end installation
Hopper capacity :
70kgs
Motor :
380V/220V, 50HZ/60HZ, 3PH/1PH
Suspension :
Winch and wire
Material of pipe :
Galvanized
Material of feeder :
PP
Description

Poultry Chicken Farm Broiler Flooring Raising Pan Feeding Equipment

Part-1
Broiler Pan Feeding Line include the Drive Motor, Broiler Chicken Feeder, Feed Pipe, Flexible Feed deliver Auger, Suspension system and other necessary parts.

Hi-hope select the most stable and quality drive motor to ensure the whole line stable and efficient working automatically.

And the flexible auger is from the world top auger supplier Technical System.

Feeder could be used from day one to moved out, and feeder designed with the maximum feed bearing capacity to supply more birds.

The whole line design aim to get the best FCR for customer chicken growing.

300g Pan Capacity Chicken Farm Equipment 380V 220V Broiler Raising

Part-2

Poultry Farm Broiler Pan Feeder Specification:

Final weight

1.8kg

Final weight

1.8kg-3kg
Birds/pan 57-91 57-85
Density(birds/㎡) 16-20 12-16
Max daily feed intake 170g 175-220g
Pipe&auger Diameter 330mm
Material pp
Pan capacity 300g
Number of grill 14
Drive motor Drive motor specification

1.1kw 380v 50hz

0.75kw 380v 50hz
Delivery capacity ≥450kg/h

300g Pan Capacity Chicken Farm Equipment 380V 220V Broiler Raising

Part-3

Broiler Feeder Pan Parameter:

Broiler Feeder Production Application Application
Recommand Birds No./Feeder 45-55 Broiler, Layer, Layer Breeder
Recommand live birds weight per square meter 40kg
Broiler Feeder Specifications Diameter Weight
Parameter 330mm 0.6kg


300g Pan Capacity Chicken Farm Equipment 380V 220V Broiler Raising300g Pan Capacity Chicken Farm Equipment 380V 220V Broiler Raising300g Pan Capacity Chicken Farm Equipment 380V 220V Broiler Raising

Part-4

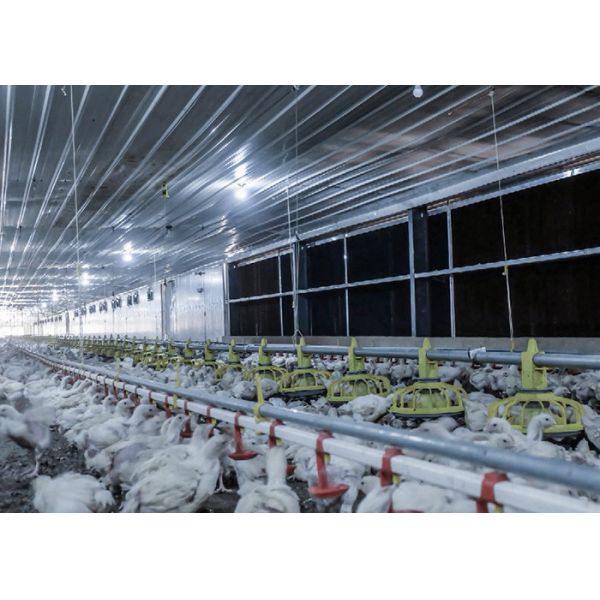

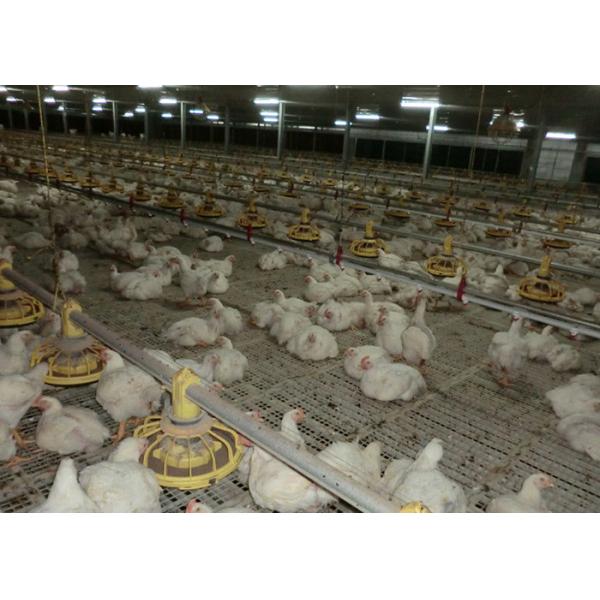

Broiler Pan Feeder System Application in Chicken Farm.

1),Feed pan is ideal for whole raising period from brooding to slaughter. The suitable pan height is easy to get feed.360° feed distribution improve uniformity.

2),Special designed feed cone with wings prevents feed waste.

3),Control pan ensure fresh feed supply, provide hygienic feed to birds and excellent feed conversion rate.

4),Convenient adjustment of feed level.

5),Feed pan is available to rotate 360 degrees, available to swing vertically or fix without rotation.

300g Pan Capacity Chicken Farm Equipment 380V 220V Broiler Raising
