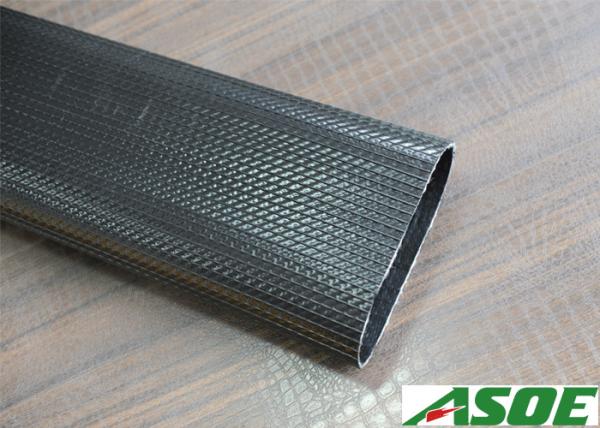

Black NBR Rubber PVC Layflat Hose Abrasion Proof 8 Inch 10 Bar
Black NBR Rubber PVC Layflat Hose Abrasion Proof 8 Inch 10 Bar
Specifications
Brand Name :
ASOE
Model Number :
Wovenflex Extra
Certification :
ISO
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
PVC Layflat Hose
Raw Material :
Black PVC and NBR Rubber Compound
Application :
agricultural irrigation, water discharge, etc
Operating Temperature Range :
From -36° F to 178° F (-37° C to 81° C)
Standard Color :
Yellow or Black or Others
Standard Length :
100, 300,330 , etc
Reinforcement :
Circular woven polyester jacket
Description

Black PVC / NBR Rubber Compound Layflat Hose Abrasion Resistance 8inch 10bar

Wovenflex Extra is one type of “through-the-weave” heavy duty PVC/NBR layflat hose. This hose features a unique one-piece, through-the-weave construction and attains its higher working pressure from a synthetic woven polyester reinforcement than Spiral plies; its excellent durability is derived from a high-tensile PVC/NBR rubber compound, which completely encases the jacket. The ribs on the cover surface greatly increase
abrasion resistance.

1. Inner tube and cover: PVC/NBR compound, smooth cover, both tube and cover are co-extruded to obtain maximum bending.
2. Reinforcement: Circular woven polyester jacket
3. Operating Temperature Range: From -36° F to 178° F (-37° C to 81° C)
4. Standard Color: Yellow, other colors available per request
5. Standard Length: 50ft, 100ft, 300ft/91.5m, 330ft/100m; other lengths available per request.

Wovenflex™ Extra Heavy Duty PVC/NBR Layflat Hose
ID
Wall Thickness
Weight
Working Pressure
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
Bar
PSI
Bar
4
103+2.0
0.13
3.2
0.87
1.29
150,200
10,14
450,600
30,42
6
155+2.5
0.15
3.8
1.5
2.24
150,200
10,14
450,600
30,42
8
204+3.0
0.16
4
2.4
3.5
150
10
450
30
10
255+3.0
0.17
4.2
2.89
4.32
150
10
450
30

Application: suitable for agricultural irrigation, mining, industrial and construction water discharge, water transfer for quarries, relay supply lines, portable hydrants etc.
